Fixed Inductors
Browse available Fixed Inductors part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTHSC1008F-R15K0.15UH SMD POWER INDUCTOR |
4,627 | - |
|
Datasheet | CTHSC1008F | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±10% | 56 A | 76A | Shielded | 0.29Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.295" (7.50mm) |
|
CTMPH080504F-R33M0.33UH SMD MOLDED SHLD INDUCTOR |
4,713 | - |
|
Datasheet | CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 3.7 A | 4.5A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMPH080504F-2R2M2.2UH SMD MOLDED SHLD INDUCTOR |
4,437 | - |
|
Datasheet | CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 1.4 A | 1.6A | Shielded | 176mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMPH080504F-1R5M1.5UH SMD MOLDED SHLD INDUCTOR |
3,046 | - |
|
Datasheet | CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 1.8 A | 1.9A | Shielded | 112mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CTMPH080504F-R47M0.47UH SMD MOLDED SHLD INDUCTOR |
2,935 | - |
|
Datasheet | CTMPH080504F | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3 A | 3.3A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
CTSPMA3020F-1R0MPOWR INDUCTOR SMD SHIELDED 1.0UH |
1,754 | - |
|
Datasheet | CTSPMA3020F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5.6 A | 5.6A | Shielded | 21.3mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.134" L x 0.134" W (3.40mm x 3.40mm) | 0.079" (2.00mm) |
|
CTSPMA5012F-1R5MPOWR INDUCTOR SMD SHIELDED 1.5UH |
4,017 | - |
|
Datasheet | CTSPMA5012F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 5.5 A | 6.2A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.213" W (5.40mm x 5.40mm) | 0.047" (1.20mm) |
|
CTCDRH2D11F-2R2N2.2UH SMD SHIELDED POWR INDUCTOR |
3,166 | - |
|
Datasheet | CTCDRH2D11F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±30% | 1.27 A | 640mA | Shielded | 121mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.126" W (3.20mm x 3.20mm) | 0.051" (1.30mm) |
|

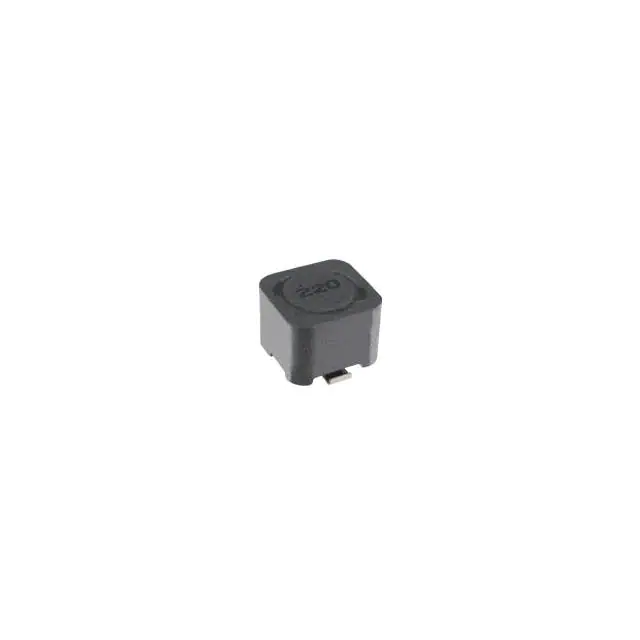

CTCDRH64BF-220M22UH SMD SHIELDED POWR INDUCTOR |
1,872 | - |
|
Datasheet | CTCDRH64BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 910 mA | - | Shielded | 270mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.197" (5.00mm) |
|
|
CTCDRH64BF-680M68UH SMD SHIELDED POWR INDUCTOR |
1,313 | - |
|
Datasheet | CTCDRH64BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 510 mA | - | Shielded | 630mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.197" (5.00mm) |
|
|
CTCDRH64BF-101M100UH SMD SHIELDED POWR INDUCTOR |
2,557 | - |
|
Datasheet | CTCDRH64BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 420 mA | - | Shielded | 1Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.197" (5.00mm) |
|
|
CTCDRH64BF-100M10UH SMD SHIELDED POWR INDUCTOR |
3,844 | - |
|
Datasheet | CTCDRH64BF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.4 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Surface Mount | - | 0.260" L x 0.244" W (6.60mm x 6.20mm) | 0.197" (5.00mm) |
|
CTMPH080604F-R47M0.47UH SMD MOLDED SHLD INDUCTOR |
4,922 | - |
|
Datasheet | CTMPH080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 3.5 A | 3.9A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CTMPH080604F-R24M0.24UH SMD MOLDED SHLD INDUCTOR |
2,470 | - |
|
Datasheet | CTMPH080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 3.9 A | 5.6A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CTMPH080604F-1R5M1.5UH SMD MOLDED SHLD INDUCTOR |
4,584 | - |
|
Datasheet | CTMPH080604F | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 2.3 A | 2.5A | Shielded | 85mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CTGS104F-101K100UH SMD UNSHLD POWER INDUCTOR |
2,551 | - |
|
Datasheet | CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±10% | - | 740mA | Unshielded | 340mOhm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
|
CTGS104F-471K470UH SMD UNSHLD POWER INDUCTOR |
4,225 | - |
|
Datasheet | CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 µH | ±10% | - | 350mA | Unshielded | 1.53Ohm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
|
CTGS104F-470M47UH SMD UNSHLD POWER INDUCTOR |
4,471 | - |
|
Datasheet | CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | - | 1.1A | Unshielded | 170mOhm Max | - | - | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
|
CTGS104F-391K390UH SMD UNSHLD POWER INDUCTOR |
4,679 | - |
|
Datasheet | CTGS104F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 390 µH | ±10% | - | 380mA | Unshielded | 1.24Ohm Max | - | - | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.185" (4.70mm) |
|
CTCDRH5D28RF-8R0N8.0UH SMD SHIELDED POWR INDUCTOR |
1,824 | - |
|
Datasheet | CTCDRH5D28RF | Nonstandard | Tape & Reel (TR) | Active | - | - | 8 µH | ±30% | - | 1.5A | Shielded | 49.9mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
Common questions about selecting, comparing and sourcing Fixed Inductors components through Winsun (HK) Electronics.
What should I check when selecting Fixed Inductors components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Fixed Inductors part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Fixed Inductors parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Fixed Inductors components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
