| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF400R07KE4HOSA1IGBT MODULE 650V 1250W |
10 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | 2 Independent | 650 V | - | 1250 W | 1.95V @ 15V, 400A | 5 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
F3L200R12W2H3B11BPSA1IGBT MOD 1200V 100A 600W |
17 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 100 A | 600 W | 1.75V @ 15V, 100A | 1 mA | 11.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS75R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2B-411 |
14 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|

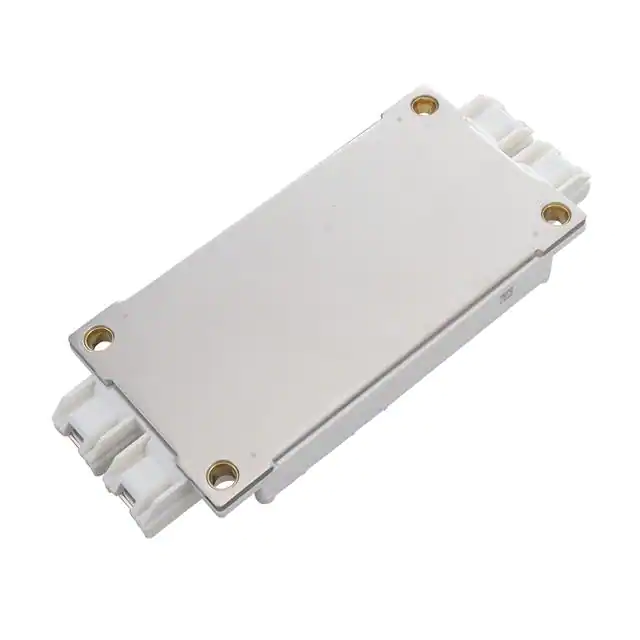

FF300R12ME7B11BPSA1MEDIUM POWER ECONO, AG-ECONOD-74 |
10 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 300 A | - | 1.75V @ 15V, 300A | 20 µA | 46 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONOD |
|

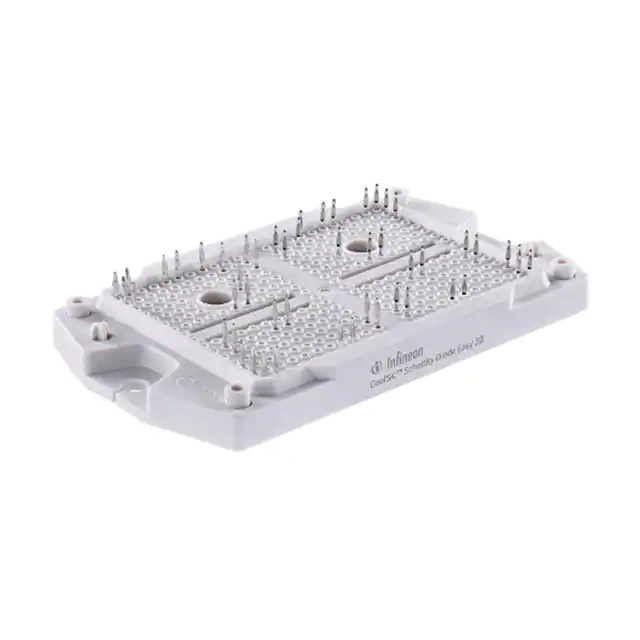

FS3L100R07W3S5B11BPSA1LOW POWER EASY AG-EASY3B-1 |
5 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | - | 1.38V @ 15V, 50A | 7 µA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
FZ400R12KE3HOSA1IGBT MOD 1200V 650A 2250W |
2 | - |
|
Datasheet | - | Module | Tray | Active | - | Single | 1200 V | 650 A | 2250 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FD300R12KE3HOSA1IGBT MOD 1200V 480A 1470W |
10 | - |
|
Datasheet | - | Module | Tray | Active | - | Single | 1200 V | 480 A | 1470 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FS75R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
17 | - |
|
Datasheet | - | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP100R12KT4BOSA1IGBT MOD 1200V 100A 515W |
12 | - |
|
Datasheet | EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS200R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-4 |
20 | - |
|
Datasheet | EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.8V @ 15V, 200A | 16 µA | 40.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
