IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ3600R12HP4HOSA2IGBT MODULE 1200V 4930A |
3 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 4930 A | 19000 W | 2.05V @ 15V, 3600A | 5 mA | 225 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF225R65T3E3BPSA1IHV IHM T XHP 3 3-6 5K AG-XHP3K6 |
3 | - |
|
Datasheet | XHP™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 5900 V | 225 A | 1000000 W | 3.4V @ 15V, 225A | 5 mA | 65.6 nF @ 25 V | Standard | No | 125°C (TJ) | Chassis Mount | AG-XHP3K65 |
|
FZ1600R33HE4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB13 |
2 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | 2 Independent | 3300 V | 1600 A | 3600 W | 2.65V @ 15V, 1.6kA | 5 mA | 187 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|
FZ1800R45HL4BPSA1IHV IHM T XHP 3 3-6 5K AG-IHVB19 |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | 3 Independent | 4500 V | 1800 A | 4000 W | 2.8V @ 15V, 1.8kA | 5 mA | 297 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB190 |
|

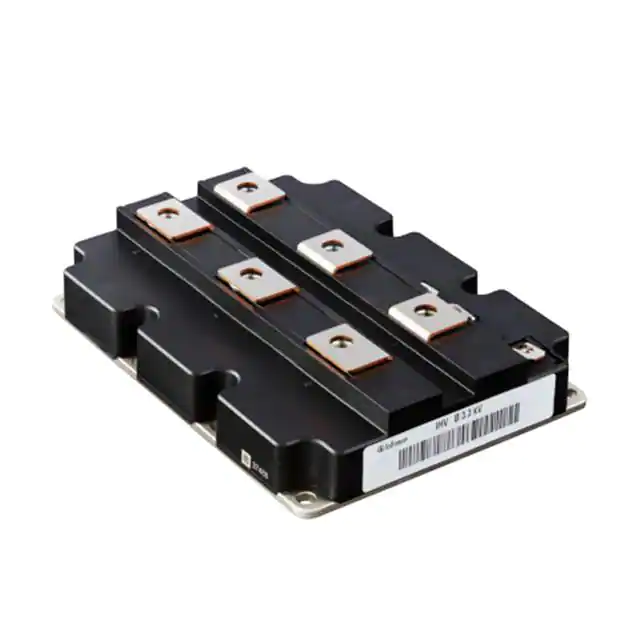

FZ1800R45HL4S7BPSA1IGBT MODULE |
2 | - |
|
Datasheet | IHM-B | Module | Bulk | Active | Trench Field Stop | - | 4500 V | 1800 A | 4000000 W | 2.6V @ 25V, 1800A | 5 mA | 297 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB190 |
|

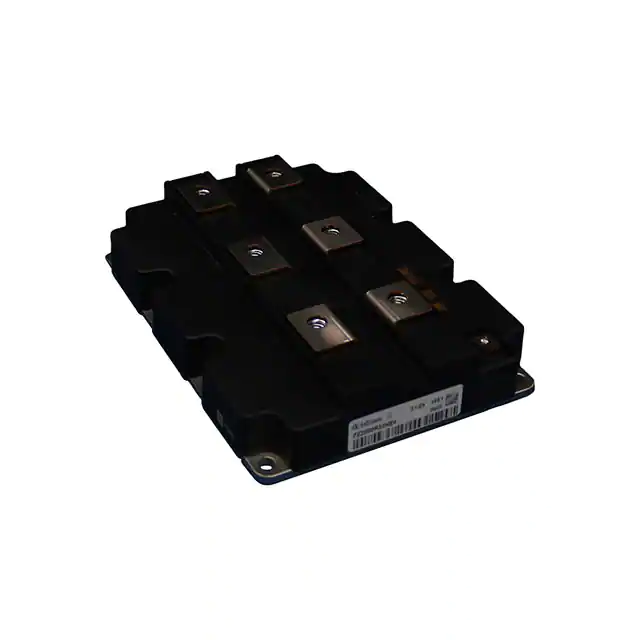

FZ2000R33HE4BOSA1IGBT MOD IHV IHM T XHP 3 3-6 5K |
5 | - |
|
Datasheet | IHM-B | Module | Bulk | Active | Trench Field Stop | Single Switch | 3300 V | 2000 A | 4200 W | 2.2V @ 15V, 2kA (Typ) | 5 mA | 280 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB190-3 |
|
|
IM241S6T2BAKMA1CIPOS MICRO |
74 | - |
|
Datasheet | IM241, CIPOS™ | - | Tube | Active | - | Three Phase Inverter | 600 V | - | 9 W | 1.78V @ 15V, 500mA | - | - | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole | 23-DIP |
|
FS30R06W1E3BOMA1IGBT MODULE 600V 60A 150W |
28 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 60 A | 150 W | 2V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
DDB6U50N22W1RPB11BPSA1EASY BRIDGE MODULE |
30 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FP10R06W1E3BOMA1IGBT MODULE 600V 16A 68W |
2 | - |
|
Datasheet | EasyPIM™ | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 600 V | 16 A | 68 W | 2V @ 15V, 10A | 1 mA | 550 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
