IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS100R06KE3BOSA1IGBT MOD 600V 100A 335W |
16 | - |
|
Datasheet | EconoPACK™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Three Phase Inverter | 600 V | 100 A | 335 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS200R07PE4BOSA1IGBT MOD 650V 200A 600W |
9 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 200 A | 600 W | 1.95V @ 15V, 200A | 1 mA | 12 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

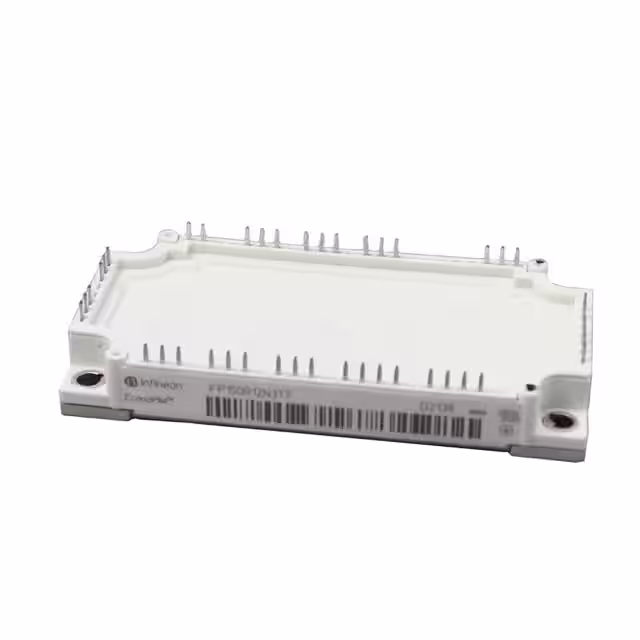

FP150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-3 |
9 | - |
|
Datasheet | EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.55V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
FF600R12KE4EBOSA1IGBT MODULE 1200V 600A |
10 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF750R12ME7B11BPSA1ECONODUAL 3 WITH TRENCHSTOP IGBT |
10 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 750 A | - | 1.75V @ 15V, 750A | 45 µA | 115 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONOD |
|
FF450R17ME4BOSA1IGBT MOD 1700V 600A 2500W |
7 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 600 A | 2500 W | 2.3V @ 15V, 450A | 3 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FZ600R17KE3HOSA1IGBT MOD 1700V 840A 3150W |
2 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Single | 1700 V | 840 A | 3150 W | 2.45V @ 15V, 600A | 3 mA | 54 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
F3L400R07W3S5B11BPSA1LOW POWER EASY AG-EASY3B-1 |
8 | - |
|
Datasheet | * | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF900R17ME7B11BPSA1MEDIUM POWER ECONO |
10 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 900 A | - | 1.85V @ 15V, 900A | 5 mA | 93.8 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
FF600R12IP4BOSA1IGBT MOD 1200V 600A 3350W |
3 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | 3350 W | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
