IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

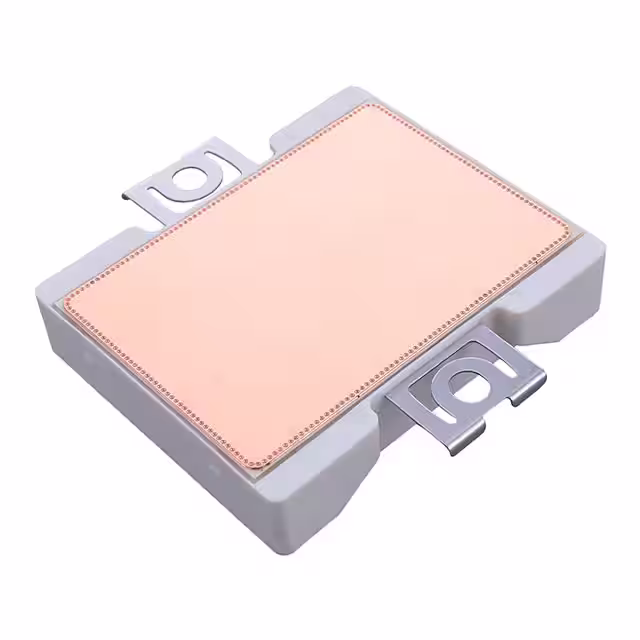

F3L100R07W2H3B11BPSA1LOW POWER EASY AG-EASY2B-411 |
1 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | - | 2V @ 15V, 100A | 32 µA | 6.2 nF @ 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
F3L100R07W2E3B11BOMA1IGBT MOD 650V 117A 300W |
7,411 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 117 A | 300 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FP50R12N2T7PBPSA11200 V, 50 A PIM IGBT MODULE |
1 | - |
|
Datasheet | EconoPIM™ 2, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.85V @ 15V, 25A | 4 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
FS50R12N2T7B15BPSA2LOW POWER ECONO |
1 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 50 A | - | 1.8V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
|
F3L150R07W2E3B11BOMA1IGBT MOD 650V 150A 335W |
4,670 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Single | 650 V | 150 A | 335 W | 1.9V @ 15V, 150A | 1 mA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

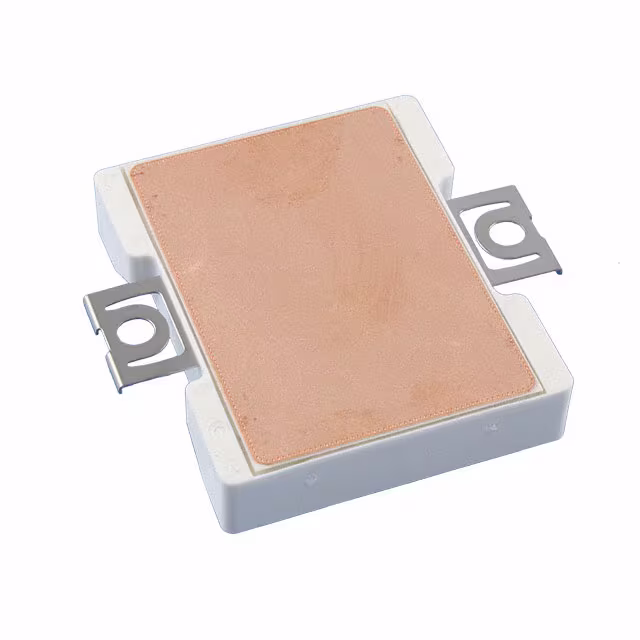

FS100R12W2T7B11BOMA1IGBT MOD 1200V 100A 20MW EASY |
2,400 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Single | 1200 V | 100 A | - | 1.50V @ 15V, 100A | 9 µA | - | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-EASY2B-1 |
|

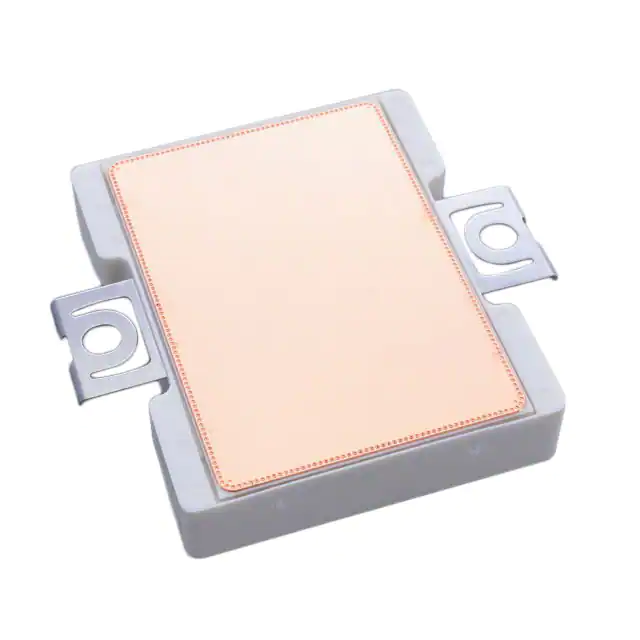

F3L150R07W2H3B11BPSA1LOW POWER EASY AG-EASY2B-411 |
3,988 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 85 A | - | 2V @ 15V, 150A | 9 µA | 9.4 nF @ 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|
FP50R12KE3BOSA1IGBT MOD 1200V 75A 280W |
7,751 | - |
|
Datasheet | - | Module | Tray | Active | NPT | Single | 1200 V | 75 A | 280 W | 2.15V @ 15V, 50A | 5 mA | 3.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
|
FF150R17KE4HOSA1MODULE IGBT 1700V AG-62MM-1 |
4,526 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 150 A | - | 2.3V @ 15V, 150A | 1 mA | 12 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

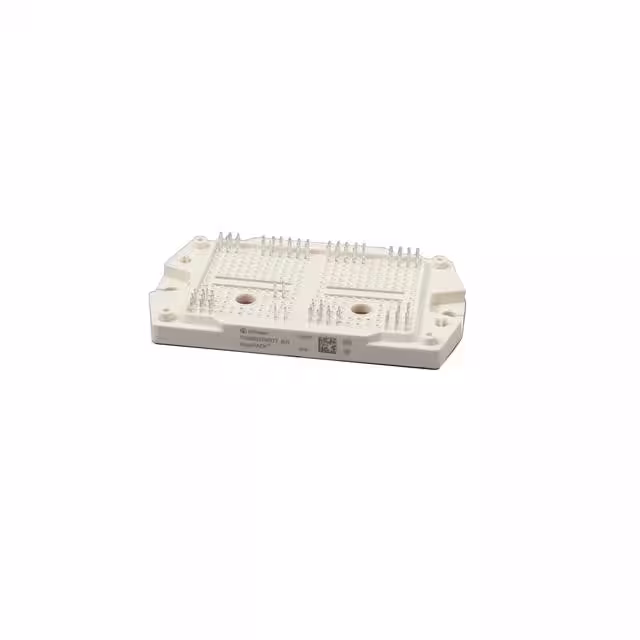

FS100R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-711 |
1 | - |
|
Datasheet | * | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
