IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ400R17KE3HOSA1IGBT MOD 1700V 620A 2250W |
6,588 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Single | 1700 V | 620 A | 2250 W | 2.45V @ 15V, 400A | 3 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

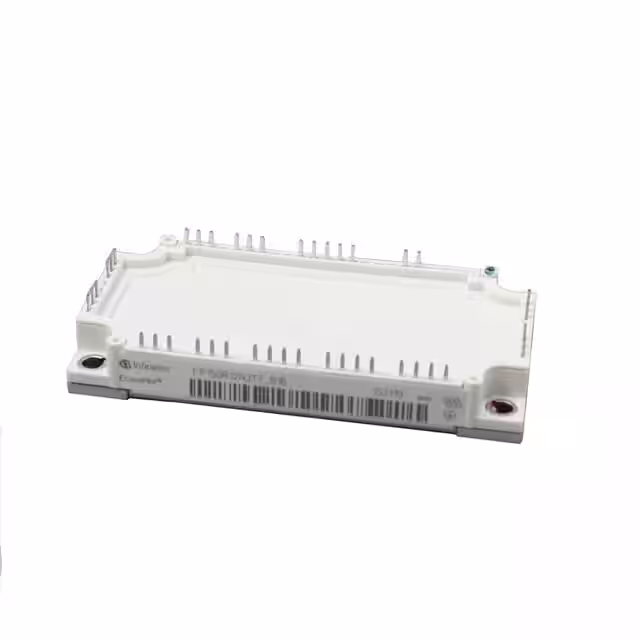

FP150R12N3T7B16BPSA1LOW POWER ECONO AG-ECONO3B-711 |
1 | - |
|
Datasheet | EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | - | 12 µA | 30.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
FF400R17KE4EHOSA1IGBT MODULE 1700V 400A |
2,950 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | - | 2.3V @ 15V, 400A | 1 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF400R12KT3HOSA1IGBT MOD 1200V 580A 2000W |
2,722 | - |
|
Datasheet | C | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 580 A | 2000 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

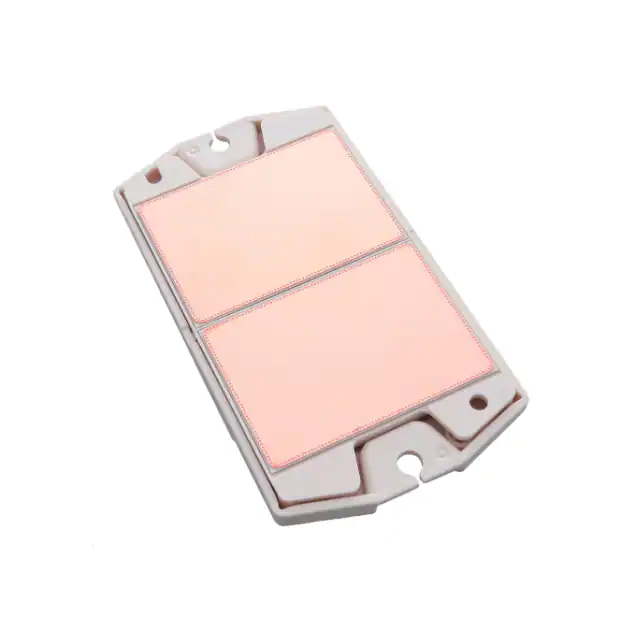

FS3L200R10W3S7FB94BPSA1LOW POWER EASY AG-EASY3B-7011 |
2,759 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 70 A | - | 1.53V @ 15V, 30A | 31 µA | 6.48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
|
FF500R17KE4BOSA1IGBT MODULE 1700V 500A |
2,481 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 500 A | - | 2.3V @ 15V, 500A | 1 mA | 45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|

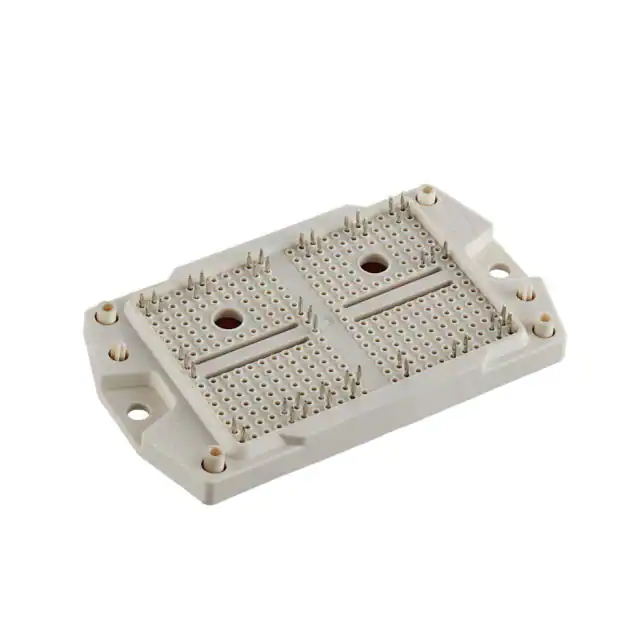

F3L400R10W3S7FB11BPSA1IGBT MODULE LOW POWER EASY |
2,784 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 950 V | 220 A | - | 2V @ 15V, 150A | 71 µA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
FF600R12ME4WB73BPSA1MEDIUM POWER ECONO |
1 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
FF600R17ME4BOSA1IGBT MODULE VCES 1700V 600A |
4,041 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | - | - | 2.3V @ 15V, 600A | 1 mA | 48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

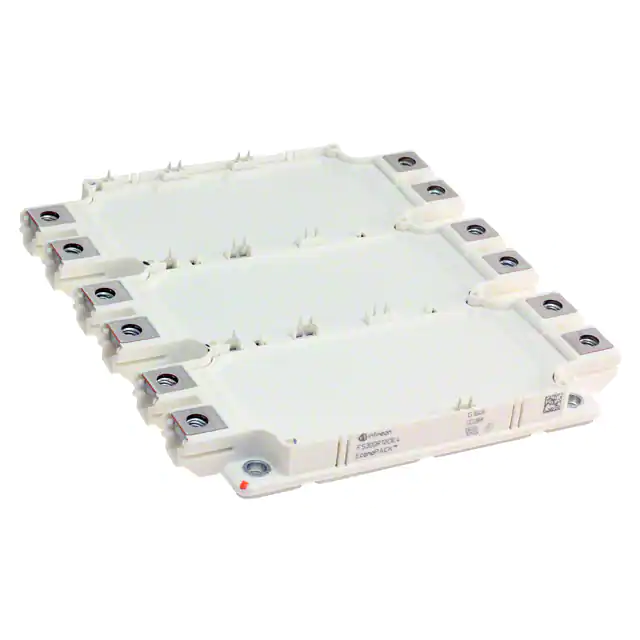

FS300R12OE4BOSA1IGBT MOD 1200V 460A 1650W |
4,771 | - |
|
Datasheet | - | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 460 A | 1650 W | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
IGBT Modules FAQ
Common questions about filtering, comparing and sourcing IGBT Modules components.
How can I narrow the IGBT Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific IGBT Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
