IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF1500R12IE5BPSA1IGBT MOD 1200V 1500A 20MW |
9,730 | - |
|
Datasheet | PrimePACK™3+ B | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1500 A | - | 2.15V @ 15V, 1500A | 5 mA | 82 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF1200R12IE5PBPSA1IGBT MOD 1200V 2400A 20MW |
8,340 | - |
|
Datasheet | PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 2400 A | - | 2.15V @ 15V, 1200A | 5 mA | 65.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | Module |
|
|
FF1800R12IE5PBPSA1IGBT MOD 1200V 1800A 20MW |
2,508 | - |
|
Datasheet | PrimePACK™3+ | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 1800 A | - | 2.15V @ 15V, 1800A | 5 mA | 98.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|
FF2400RB12IP7PBPSA1PP IHM I XHP 1 7KV AG-PRIME3+-71 |
1 | - |
|
Datasheet | PrimePACK™3 | - | Tray | Active | - | 2 Independent | 750 V | 2400 A | - | - | - | - | Standard | No | - | - | - |
|

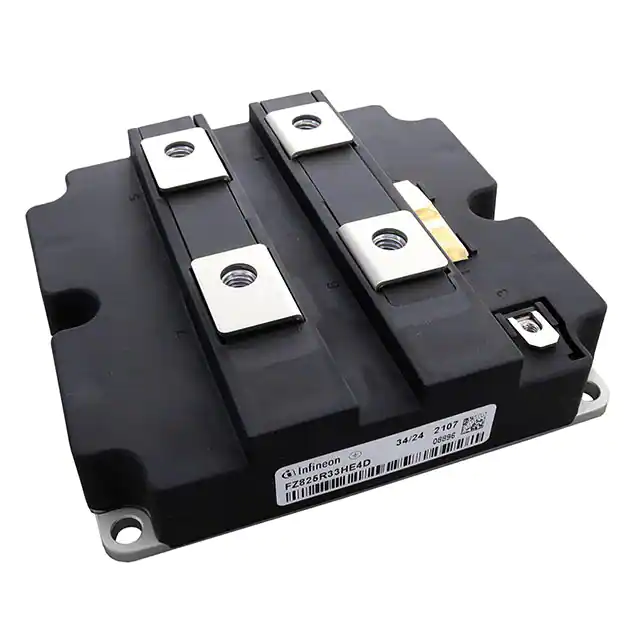

FZ825R33HE4DBPSA1HV B SINGLE SWITCH POWER MODULES |
9,522 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 3300 V | 825 A | 2400000 W | 2.65V @ 15V, 825A | 5 mA | 93.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHVB130-3 |
|
FZ2400R17HP4B29BOSA2IGBT MODULE 1700V 4800A |
1 | - |
|
Datasheet | IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 4800 A | 15500 W | 2.25V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FZ750R65KE3NOSA1IGBT MOD 6500V 750A A-IHV190-6 |
1 | - |
|
Datasheet | - | Module | Tray | Active | - | Single | 6500 V | 750 A | 14500 W | 3.4V @ 15V, 750A | 5 mA | 205 nF @ 25 V | Standard | No | -50°C ~ 125°C | Chassis Mount | Module |
|
P2000DL45X168HPSA1PRESS PACK IGBT |
1 | - |
|
Datasheet | - | TO-200AF | Tray | Active | Trench | Single | 4500 V | 2000 A | - | 2.5V @ 15V, 2000A | 200 µA | 420 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
|
P3000ZL45X168HPSA1PRESS PACK IGBT |
1 | - |
|
Datasheet | - | TO-200AF | Tray | Active | Trench | Single | 4500 V | 3000 A | - | 2.5V @ 15V, 3000A | 200 µA | 620 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | BG-P16826K-1 |
|
FS50R06W1E3B11BOMA1IGBT MODULE 600V 70A 205W |
8,958 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 600 V | 70 A | 205 W | 1.9V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
IGBT Modules FAQ
Common questions about filtering, comparing and sourcing IGBT Modules components.
How can I narrow the IGBT Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific IGBT Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
