IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF150R12W2T7EB11BPSA1FF150R12W2T7EB11BPSA1 |
4,870 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP15R12W2T4BOMA1IGBT MOD 1200V 30A 145W |
4 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 30 A | 145 W | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF200R12W2T7EB11BPSA1FF200R12W2T7EB11BPSA1 |
8,506 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP35R12N2T7B11BPSA2LOW POWER ECONO |
6,071 | - |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | - | 1.6V @ 15V, 35A | 7 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|

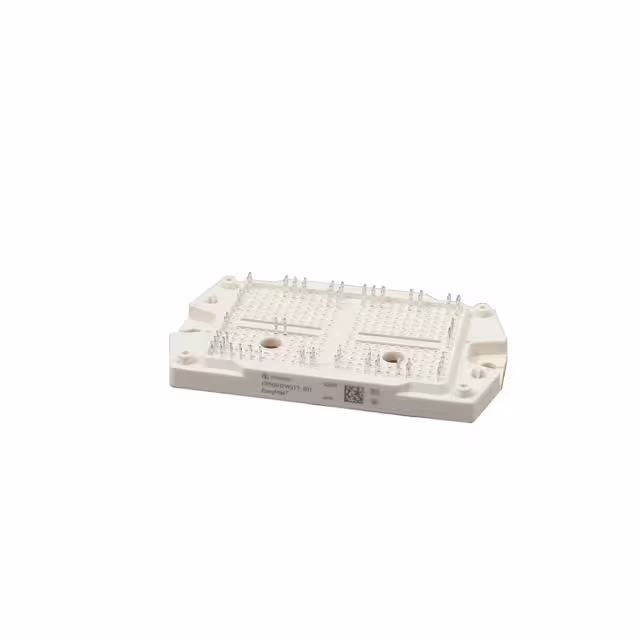

FP50R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-1 |
1 | - |
|
Datasheet | EasyPIM™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | - | 1.8V @ 15V, 50A | 13 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|

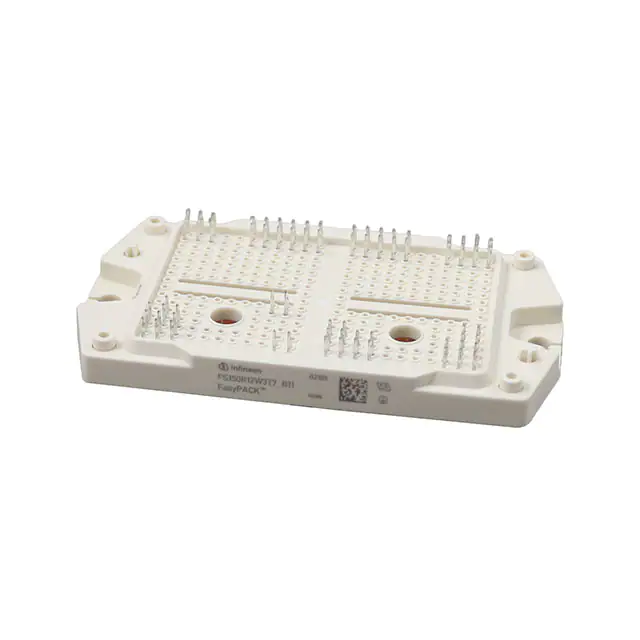

FS150R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-1 |
1 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.8V @ 15V, 150A | 1.2 µA | 30.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | Module |
|

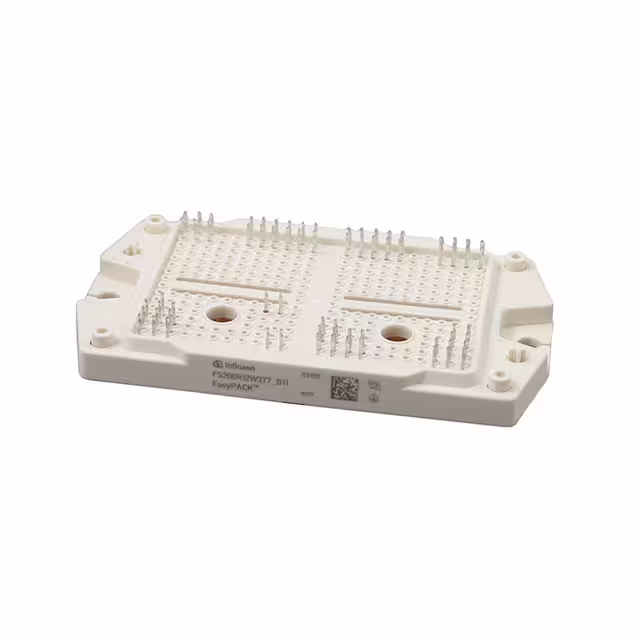

FS200R12W3T7B11BPSA1LOW POWER EASY AG-EASY3B-1 |
1 | - |
|
Datasheet | EasyPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.8V @ 15V, 200A | 20 µA | 40300 pF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
F3L500R12W3H7H20BPSA1F3L500R12W3H7H20BPSA1 |
4,942 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF450R12KE7EHPSA1MEDIUM POWER 62MM |
6,531 | - |
|
Datasheet | - | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FD400R12KE3HOSA1IGBT MOD 1200V 580A 2000W |
7,831 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 580 A | 2000 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
IGBT Modules FAQ
Common questions about filtering, comparing and sourcing IGBT Modules components.
How can I narrow the IGBT Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific IGBT Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
