IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP75R12KT4BOSA1IGBT MOD 1200V 75A 385W |
5,376 | - |
|
Datasheet | EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.25V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF100R12KS4HOSA1IGBT MOD 1200V 150A 780W |
3,303 | - |
|
Datasheet | C | Module | Tray | Active | - | 2 Independent | 1200 V | 150 A | 780 W | 3.7V @ 15V, 100A | 5 mA | 650 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
F3L200R07W2S5FB11BOMA1IGBT MODULE LOW POWER EASY |
6,389 | - |
|
Datasheet | EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 95 A | - | 1.38V @ 15V, 100A | 1 mA | 14.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY2B |
|

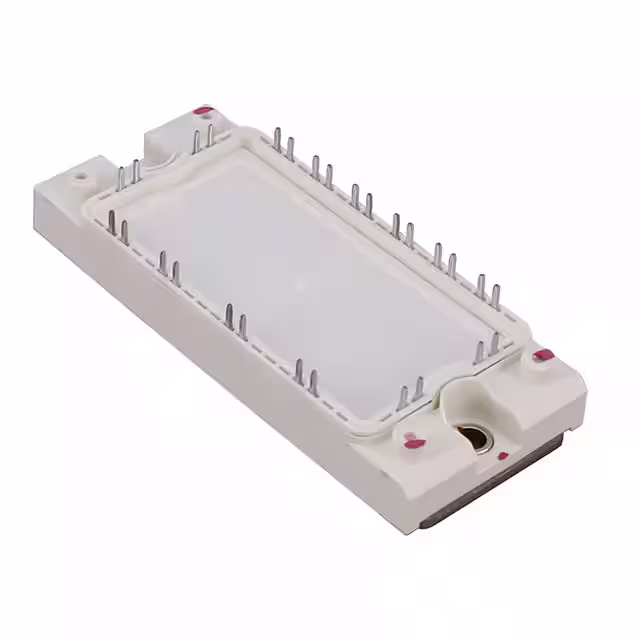

FS50R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2B-411 |
1 | - |
|
Datasheet | EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP75R12N2T7PB11BPSA1LOW POWER ECONO |
1 | - |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF200R17KE4HOSA1IGBT MOD 1700V 310A 1250W |
4,034 | - |
|
Datasheet | C | Module | Tray | Active | Trench Field Stop | 2 Independent | 1700 V | 310 A | 1250 W | 2.3V @ 15V, 200A | 1 mA | 18 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FP50R12N2T7PB11BPSA1LOW POWER ECONO |
7,006 | - |
|
Datasheet | EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 1200 V | 50 A | - | 1.8V @ 15V, 50A | 10 µA | 11.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|

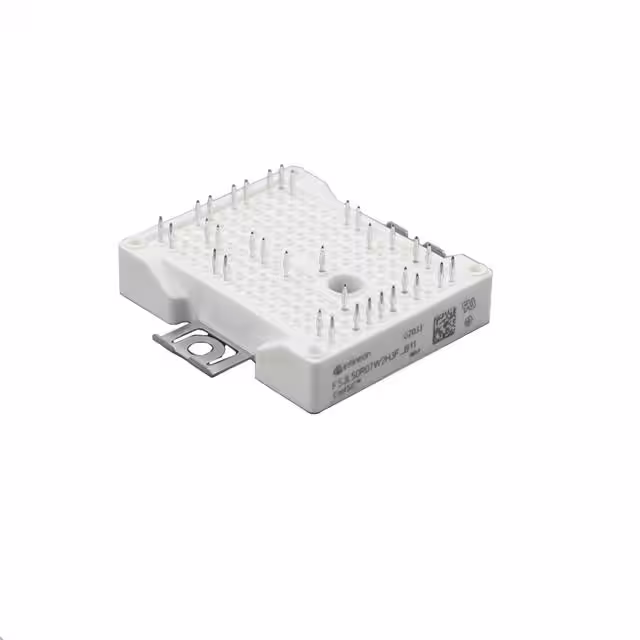

FS3L50R07W2H3FB11BPSA1IGBT MOD 650V 50A 20MW |
4,927 | - |
|
Datasheet | EasyPACK™ 2B | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 50 A | - | 1.8V @ 15V, 50A | 1 mA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF150R12KS4HOSA1IGBT MOD 1200V 225A 1250W |
5,686 | - |
|
Datasheet | C | Module | Tray | Active | - | 2 Independent | 1200 V | 225 A | 1250 W | 3.7V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|

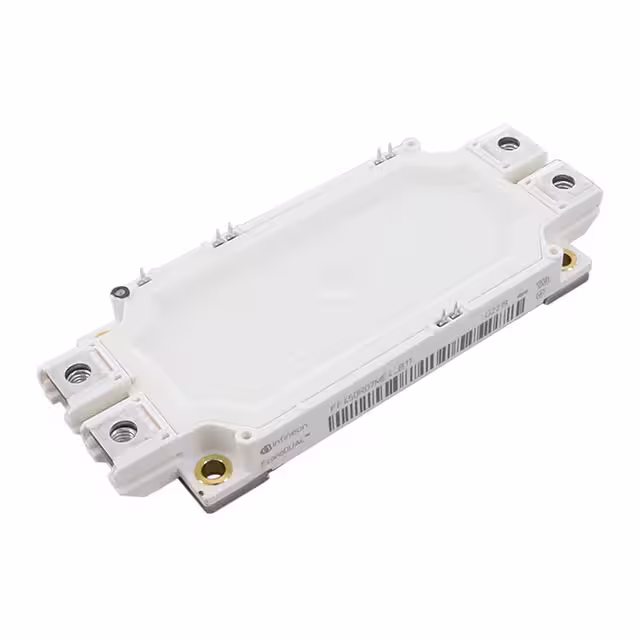

FF450R07ME4B11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 |
1 | - |
|
Datasheet | EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 650 V | 560 A | 1450 W | 1.95V @ 15V, 450A | 1 mA | 27.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
