| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT60GA60JD60IGBT MOD 600V 112A 356W ISOTOP |
1,258 | - |
|
Datasheet | POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 112 A | 356 W | 2.5V @ 15V, 62A | 275 µA | 8.01 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGT600U170D4GIGBT MODULE 1700V 1100A 2900W D4 |
27 | - |
|
Datasheet | - | D4 | Bulk | Active | Trench Field Stop | Single | 1700 V | 1100 A | 2900 W | 2.4V @ 15V, 600A | 1 mA | 51 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D4 |
|
|
APT75GN120JDQ3IGBT MOD 1200V 124A 379W ISOTOP |
128 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 1200 V | 124 A | 379 W | 2.1V @ 15V, 75A | 200 µA | 4.8 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

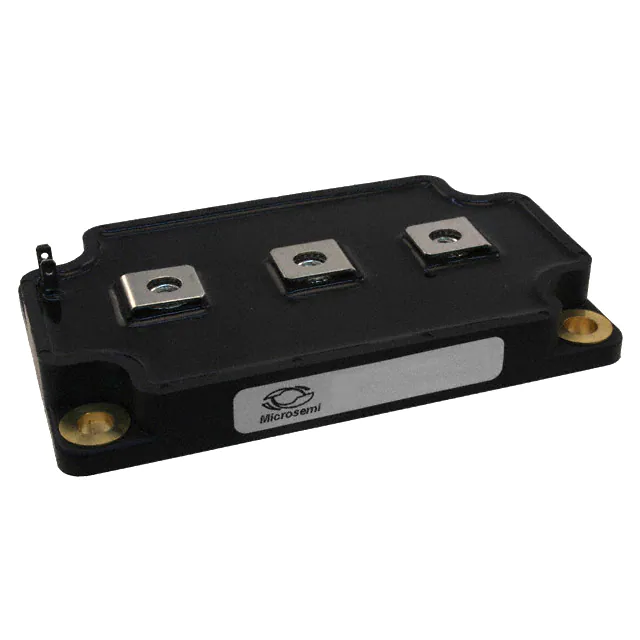

APTGT600SK60GIGBT MODULE 600V 700A 2300W SP6 |
50 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Single | 600 V | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APT100GT120JU2IGBT MOD 1200V 140A 480W SOT227 |
184 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT75GP120JDQ3IGBT MOD 1200V 128A 543W ISOTOP |
900 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 128 A | 543 W | 3.9V @ 15V, 75A | 1.25 mA | 7.04 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGT200A120GIGBT MODULE 1200V 280A 890W SP6 |
707 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
APTGT600A60GIGBT MODULE 600V 700A 2300W SP6 |
31 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
|
APT45GP120JDQ2IGBT MOD 1200V 75A 329W ISOTOP |
114 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 75 A | 329 W | 3.9V @ 15V, 45A | 750 µA | 4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT75GP120JIGBT MOD 1200V 128A 543W ISOTOP |
40 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 128 A | 543 W | 3.9V @ 15V, 75A | 1 mA | 7.04 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
