IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCGLQ200SK65TGPM-IGBT-SP4 |
6 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

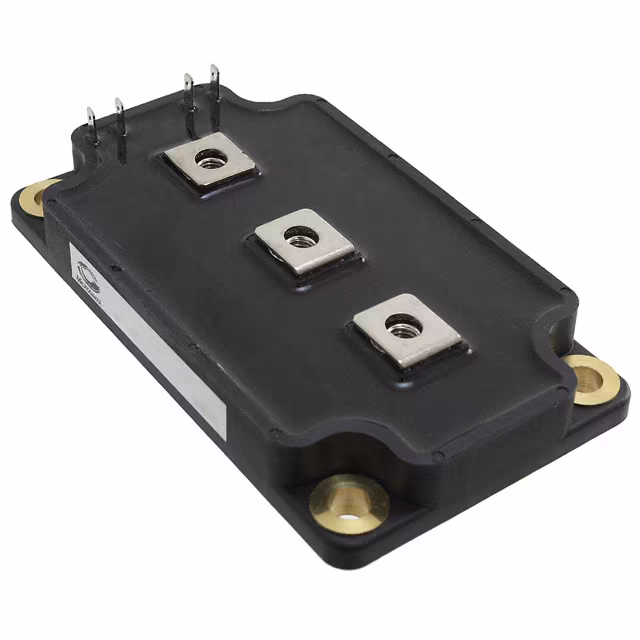

APTGT200DU120GIGBT MODULE 1200V 280A 890W SP6 |
16 | - |
|
Datasheet | - | SP6 | Bulk | Active | Trench Field Stop | Dual, Common Source | 1200 V | 280 A | 890 W | 2.1V @ 15V, 200A | 350 µA | 14 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SP6 |
|
|
MSCGLQ75H120CTBL3NGPM-IGBT-SBD-BL3 |
8 | - |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ75DDU120CTBL3NGPM-IGBT-SBD-BL3 |
7 | - |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 160 A | 470 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
APT150GN120JIGBT MOD 1200V 215A 625W ISOTOP |
8,324 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 1200 V | 215 A | 625 W | 2.1V @ 15V, 150A | 100 µA | 9.5 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGT50TL601GIGBT MODULE 600V 80A 176W SP1 |
1 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
MSCGLQ50DU120CTBL1NGPM-IGBT-SBD-BL1 |
9,618 | - |
|
Datasheet | - | Module | Bulk | Active | - | Half Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50A120CTBL1NGPM-IGBT-SBD-BL1 |
7,308 | - |
|
Datasheet | - | Module | Bulk | Active | - | Half Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50DH120CTBL2NGPM-IGBT-SBD-BL2 |
3,343 | - |
|
Datasheet | - | Module | Bulk | Active | - | Asymmetrical Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
|
|
MSCGLQ50H120CTBL2NGPM-IGBT-SBD-BL2 |
3,630 | - |
|
Datasheet | - | Module | Bulk | Active | - | Full Bridge | 1200 V | 110 A | 375 W | 2.4V @ 15V, 50A | 25 µA | 2.77 nF @ 25 V | Standard | Yes | -55°C ~ 175°C (TJ) | Chassis Mount | - |
