IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

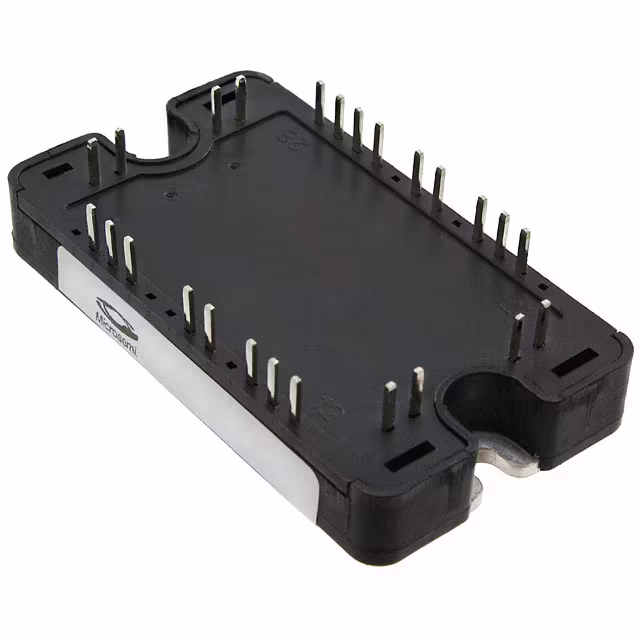

APTGF50VDA60T3GIGBT MODULE 600V 65A 250W SP3 |
7,770 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Dual Boost Chopper | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
APT100GLQ65JU3IGBT 600V 100A 430W ISOTOP |
3,088 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Single Chopper | 650 V | 165 A | 430 W | 2.3V @ 15V, 1000A | 50 µA | 6.1 nF @ 25 V | Standard | No | -55°C ~ 175°C | Chassis Mount | ISOTOP® |
|
|
APT100GLQ65JU2IGBT MOD 650V 165A 430W ISOTOP |
3,941 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | Trench Field Stop | Boost Chopper | 650 V | 165 A | 430 W | 2.3V @ 15V, 100A | 50 µA | 6.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF50DDA60T3GIGBT MODULE 600V 65A 250W SP3 |
4,373 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Dual Boost Chopper | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APT70GR120JIGBT MOD 1200V 112A 543W SOT227 |
2,551 | - |
|
Datasheet | - | SOT-227-4 | Tube | Active | NPT | Single | 1200 V | 112 A | 543 W | 3.2V @ 15V, 70A | 1 mA | 7.26 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT40GP60JIGBT 600V 86A 284W SOT227 |
5,633 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 86 A | 284 W | 2.7V @ 15V, 40A | 250 µA | 4.61 nF @ 25 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
APTGF90A60T1GIGBT MODULE 600V 110A 416W SP1 |
3,089 | - |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 110 A | 416 W | 2.5V @ 15V, 90A | 250 µA | 4.3 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
APT46GA90JD40IGBT MODULE 900V 87A 284W ISOTOP |
8,980 | - |
|
Datasheet | POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 900 V | 87 A | 284 W | 3.1V @ 15V, 47A | 350 µA | 4.17 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT60GT60JRDQ3IGBT 600V 105A 379W SOT227 |
3,895 | - |
|
Datasheet | Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Obsolete | NPT | Single | 600 V | 105 A | 379 W | 2.5V @ 15V, 60A | 330 µA | 3.1 nF @ 25 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
|
APT50GF60JU2IGBT MODULE 600V 75A 277W SOT227 |
1 | - |
|
Datasheet | - | ISOTOP | Bulk | Obsolete | NPT | Single | 600 V | 75 A | 277 W | 2.7V @ 15V, 50A | 40 µA | 2.25 nF @ 25 V | Standard | No | - | Chassis Mount | SOT-227 |
