IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT80GP60JIGBT MOD 600V 151A 462W ISOTOP |
18 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1 mA | 9.84 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT60GF120JRDQ3IGBT MOD 1200V 149A 625W ISOTOP |
20 | - |
|
Datasheet | - | ISOTOP | Tube | Active | NPT | Single | 1200 V | 149 A | 625 W | 3V @ 15V, 100A | 350 µA | 7.08 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|

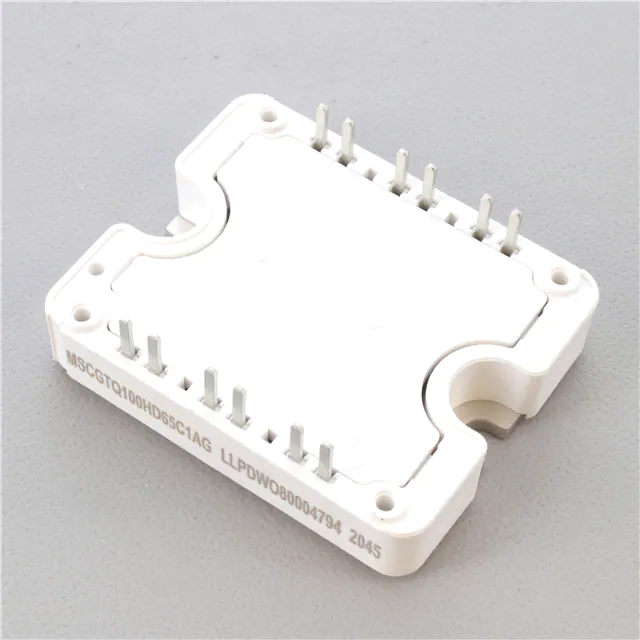

MSCGTQ100HD65C1AGPM-IGBT-TFS-SBD~-SP1F |
2 | - |
|
Datasheet | MSC | Module | Tube | Active | Trench | Half Bridge | 650 V | 80 A | - | - | 80 A | - | Standard | No | - | Chassis Mount | SP1 |
|
|
APT35GP120JIGBT MOD 1200V 64A 284W ISOTOP |
20 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 64 A | 284 W | 3.9V @ 15V, 35A | 250 µA | 3.24 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT35GP120JDQ2IGBT MOD 1200V 64A 284W ISOTOP |
20 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 64 A | 284 W | 3.9V @ 15V, 35A | 350 µA | 3.24 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGLQ25H120T1GIGBT MODULE 1200V 50A 165W SP1 |
9 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Full Bridge | 1200 V | 50 A | 165 W | 2.42V @ 15V, 25A | 50 µA | 1.43 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APT40GF120JRDIGBT NPT COMBI 1200V 40A ISOTOP |
6 | - |
|
Datasheet | - | SOT-227-4, miniBLOC | Tube | Active | - | Single | 1200 V | 60 A | 390 W | 3.4V @ 15V, 50A | 500 µA | 3.45 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 (ISOTOP®) |
|

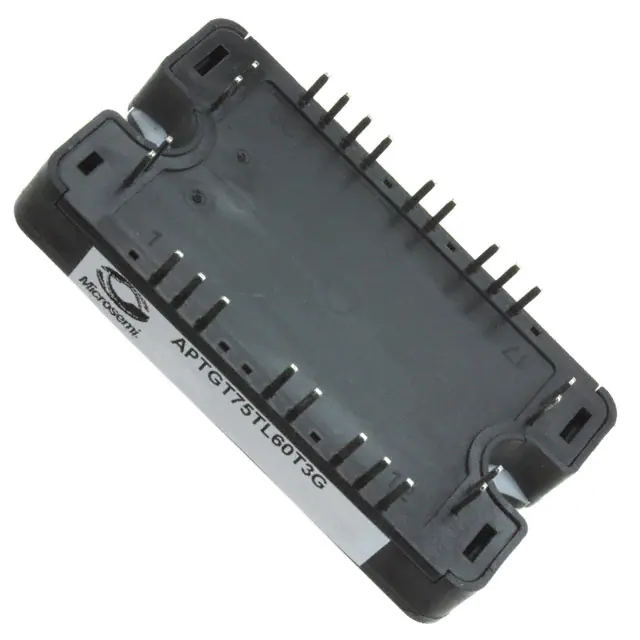

APTGT75TL60T3GIGBT MODULE 600V 100A 250W SP3 |
6 | - |
|
Datasheet | - | SP3 | Tube | Active | Trench Field Stop | Three Level Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
|
MSCGLQ100A65TGPM-IGBT-SP4 |
9 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSCGLQ200A65TGPM-IGBT-SP4 |
9 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
