IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT47GA60JD40IGBT 600V 87A 283W SOT-227 |
5,649 | - |
|
Datasheet | POWER MOS 8™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 87 A | 283 W | 2.5V @ 15V, 47A | 275 µA | 6.32 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APT50GP60JIGBT MOD 600V 100A 329W ISOTOP |
2,965 | - |
|
Datasheet | POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 100 A | 329 W | 2.7V @ 15V, 50A | 500 µA | 5.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF100DA120T1GIGBT MODULE 1200V 130A 735W SP1 |
8,493 | - |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Single | 1200 V | 130 A | 735 W | 3.7V @ 15V, 100A | 250 µA | 6.5 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
APT50GP60JDQ2IGBT MOD 600V 100A 329W ISOTOP |
4,833 | - |
|
Datasheet | POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 600 V | 100 A | 329 W | 2.7V @ 15V, 50A | 525 µA | 5.7 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT150GN60JIGBT MOD 600V 220A 536W ISOTOP |
4,688 | - |
|
Datasheet | - | ISOTOP | Tube | Active | Trench Field Stop | Single | 600 V | 220 A | 536 W | 1.85V @ 15V, 150A | 25 µA | 9.2 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | ISOTOP® |
|
APTGF50H60T1GIGBT MODULE 600V 65A 250W SP1 |
6,942 | - |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
|
APT75GT120JU3IGBT MOD 1200V 100A 416W SOT227 |
6,054 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 100 A | 416 W | 2.1V @ 15V, 75A | 5 mA | 5.34 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

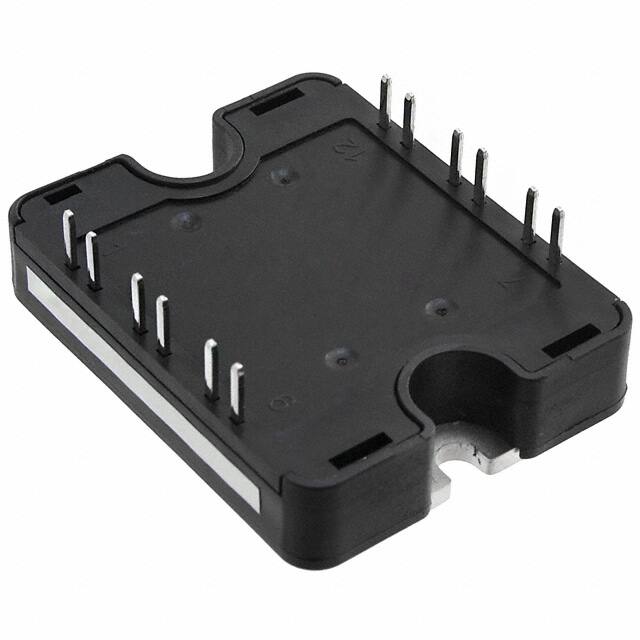

APTGF25H120T1GIGBT MODULE 1200V 40A 208W SP1 |
6,095 | - |
|
Datasheet | - | SP1 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP1 |
|
APTGF50H60T3GIGBT MODULE 600V 65A 250W SP3 |
8,476 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Full Bridge Inverter | 600 V | 65 A | 250 W | 2.45V @ 15V, 50A | 250 µA | 2.2 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APTGF50DH120T3GIGBT MODULE 1200V 70A 312W SP3 |
3,077 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Asymmetrical Bridge | 1200 V | 70 A | 312 W | 3.7V @ 15V, 50A | 250 µA | 3.45 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
