IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT40GP90JDQ2IGBT MODULE 900V 64A 284W ISOTOP |
6,874 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 900 V | 64 A | 284 W | 3.9V @ 15V, 40A | 350 µA | 3.3 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT45GP120JIGBT MOD 1200V 75A 329W ISOTOP |
6,995 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 1200 V | 75 A | 329 W | 3.9V @ 15V, 45A | 500 µA | 3.94 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT100GT120JU3IGBT MOD 1200V 140A 480W SOT227 |
4,353 | - |
|
Datasheet | - | ISOTOP | Bulk | Active | Trench Field Stop | Single | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
|
APT80GP60JDQ3IGBT 600V 151A 462W SOT227 |
2,838 | - |
|
Datasheet | POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 600 V | 151 A | 462 W | 2.7V @ 15V, 80A | 1.25 mA | 9.84 nF @ 25 V | Standard | No | - | Chassis Mount | ISOTOP® |
|
APTGF100DA120TGIGBT MODULE 1200V 135A 568W SP4 |
9,863 | - |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Single | 1200 V | 135 A | 568 W | 3.7V @ 15V, 100A | 350 µA | 6.9 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
APTGF180SK60TGIGBT MODULE 600V 220A 833W SP4 |
7,627 | - |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Single | 600 V | 220 A | 833 W | 2.5V @ 15V, 180A | 300 µA | 8.6 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTGF25X120T3GIGBT MODULE 1200V 40A 208W SP3 |
8,479 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | NPT | Three Phase Inverter | 1200 V | 40 A | 208 W | 3.7V @ 15V, 25A | 250 µA | 1.65 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP3 |
|
|
APT75GT120JRDQ3IGBT MOD 1200V 97A 480W ISOTOP |
7,858 | - |
|
Datasheet | Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tube | Active | NPT | Single | 1200 V | 97 A | 480 W | 3.7V @ 15V, 75A | 200 µA | 5.1 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
|
APT200GT60JRIGBT MOD 600V 195A 500W SOT227 |
9,091 | - |
|
Datasheet | Thunderbolt IGBT® | SOT-227-4, miniBLOC | Tray | Obsolete | NPT | Single | 600 V | 195 A | 500 W | 2.5V @ 15V, 200A | 25 µA | 8.65 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|

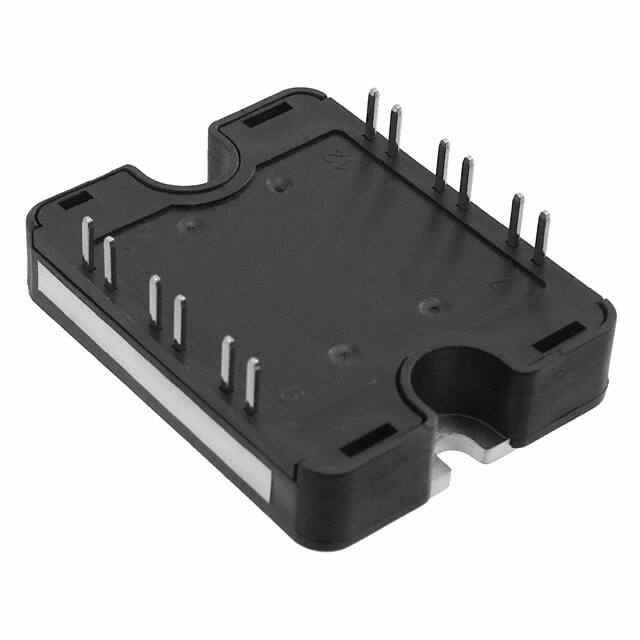

APTGT75DA60T1GIGBT MODULE 600V 100A 250W SP1 |
7,765 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
IGBT Modules FAQ
Common questions about filtering, comparing and sourcing IGBT Modules components.
How can I narrow the IGBT Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific IGBT Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
