IGBT Modules
Use the filters and product table below to compare IGBT Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

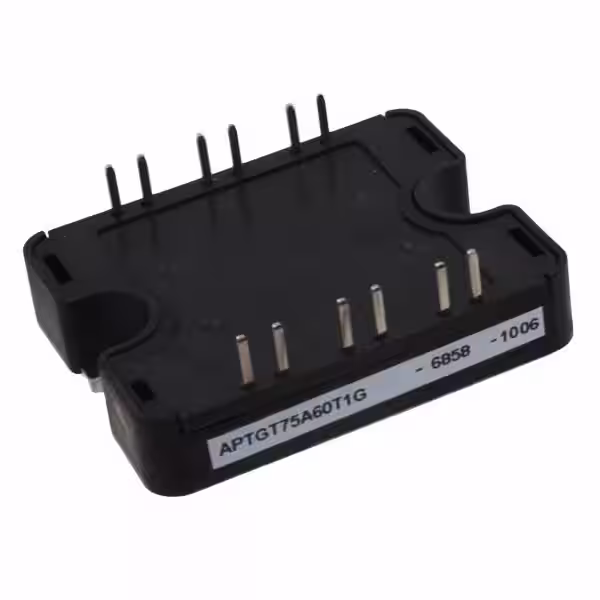

APTGT75A60T1GIGBT MODULE 600V 100A 250W SP1 |
7,237 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|

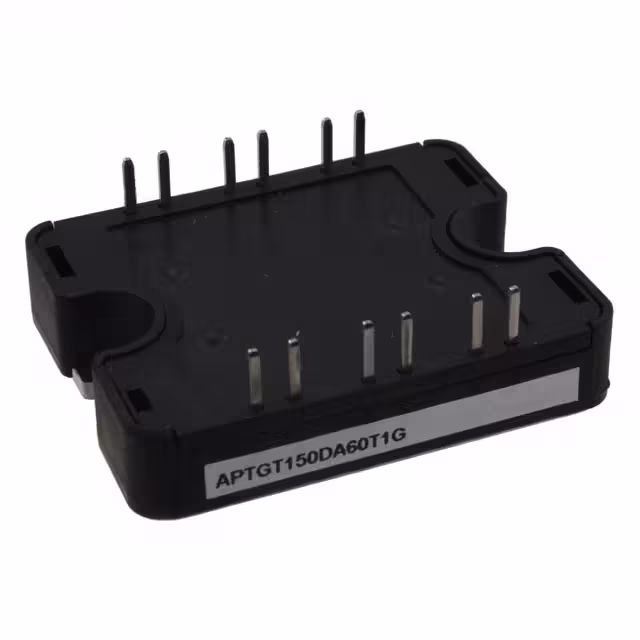

APTGT150DA60T1GIGBT MODULE 600V 225A 480W SP1 |
7,925 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
APTGT150SK60T1GIGBT MODULE 600V 225A 480W SP1 |
2,615 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Single | 600 V | 225 A | 480 W | 1.9V @ 15V, 150A | 250 µA | 9.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT30H60T1GIGBT MODULE 600V 50A 90W SP1 |
4,798 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGTQ100DA65T1GIGBT MODULE 650V 100A 250W SP1 |
8,091 | - |
|
Datasheet | - | Module | Bulk | Active | - | Boost Chopper | 650 V | 100 A | 250 W | 2.2V @ 15V, 100A | 100 µA | 6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGTQ100SK65T1GIGBT MODULE 650V 100A 250W SP1 |
2,007 | - |
|
Datasheet | - | Module | Bulk | Active | - | Buck Chopper | 650 V | 100 A | 250 W | 2.2V @ 15V, 100A | 100 µA | 6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGT30TL601GIGBT MODULE 600V 50A 90W SP1 |
5,001 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Three Level Inverter | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
|
|
APTGF180A60TGIGBT MODULE 600V 220A 833W SP4 |
4,979 | - |
|
Datasheet | - | SP4 | Bulk | Obsolete | NPT | Half Bridge | 600 V | 220 A | 833 W | 2.5V @ 15V, 180A | 300 µA | 8.6 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|
|
APTGT35A120T1GIGBT MODULE 1200V 55A 208W SP1 |
6,931 | - |
|
Datasheet | - | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1200 V | 55 A | 208 W | 2.1V @ 15V, 35A | 250 µA | 2.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
|
APTGLQ100DA120T1GIGBT MODULE 1200V 170A 520W SP1 |
7,374 | - |
|
Datasheet | - | Module | Bulk | Active | Trench Field Stop | Boost Chopper | 1200 V | 170 A | 520 W | 2.42V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP1 |
