Gates and Inverters - Multi-Function, Configurable
Browse available Gates and Inverters - Multi-Function, Configurable part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC1G99GM,125IC CONFIG MULTI-FUNC GATE 8-XQFN |
1,607 | - |
|
Datasheet | 74LVC | 8-XFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
74AUP2G98GFXIC PROG GATE W/SCHMITT 10SON |
4,559 | - |
|
Datasheet | 74AUP | 10-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XSON (1.7x1) |
|
74LVC1G99GN,115IC GATE CONFIG MULTI-FUNC 8XSON |
4,977 | - |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
74AUP1G885GN,115IC GATE DUAL FUNCTION 8XSON |
2,207 | - |
|
Datasheet | 74AUP | 8-XFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.2x1) |
|
NC7SP57L6XIC GATE ULP UNIV 2-INP 6MICROPAK |
3,107 | - |
|
Datasheet | 7SP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 2.6mA, 2.6mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
HCF4078BEYIC GATE NOR/OR 8INPUT 14-DIP |
3,913 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 20V | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
SN74AUP1G99DCURG4IC CONFIG MULTI FUNCTION US8 |
1,244 | - |
|
Datasheet | 74AUP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
74AUP1G3208GN,132IC 3-IN OR-AND GATE LP 6XSON |
1,484 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
|
NC7SV58L6XIC GATE ULP-A UNIV 2INP 6-MCRPAK |
2,685 | - |
|
Datasheet | 7SV | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 24mA, 24mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|

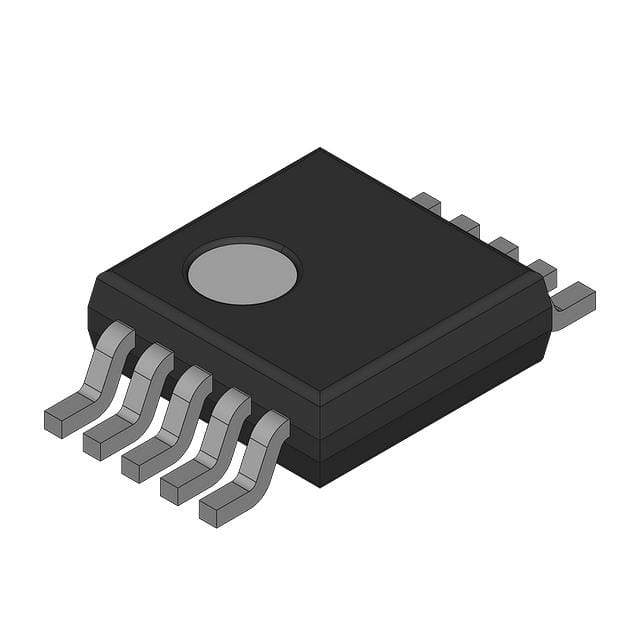

74AUP2G98DPJIC PROG GATE W/SCHMITT 10TSSOP |
3,976 | - |
|
Datasheet | 74AUP | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-TSSOP |
|
M74HC4078RM13TRIC GATE NOR/OR 8-INPUT 14-SOIC |
2,824 | - |
|
Datasheet | 74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR/OR Gate | 1 | 8 | No | Single-Ended | 5.2mA, 5.2mA | 2V ~ 6V | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LVC1G0832YEPRIC SGL 3IN OR/AND GATE 6DSBGA |
1,194 | - |
|
Datasheet | 74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
|
SN74LVC1G3208YEPRIC SGL 3IN OR/AND GATE 6DSBGA |
4,500 | - |
|
Datasheet | 74LVC | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
SN74LVC1G99DCTRG4IC CONFIG MULTI-FUNC GATE SM8 |
1,916 | - |
|
Datasheet | 74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
|
NC7SP58L6XIC GATE ULP UNIV 2-INP 6MICROPAK |
3,079 | - |
|
Datasheet | 7SP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 2.6mA, 2.6mA | 0.9V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
SN74LVC1G57DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
4,650 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
|
SN74LVC1G58DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
1,014 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
HCF4019BEYIC 2INPUT AND/OR QUAD 14DIP |
2,121 | - |
|
Datasheet | 4000B | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | AND/OR Gate | 4 | 2 Input (1, 1) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 20V | -55°C ~ 125°C | - | - | Through Hole | 16-DIP |
|
|
SN74LVC1G97DCKRG4IC MULTI-FUNC GATE CONFIG SC70-6 |
2,564 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
CD4085BPWIC DUAL AND-ORINV GATE 14-TSSOP |
1,456 | - |
|
Datasheet | 4000B | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
Gates and Inverters - Multi-Function, Configurable FAQ
Common questions about selecting, comparing and sourcing Gates and Inverters - Multi-Function, Configurable components through Winsun (HK) Electronics.
What should I check when selecting Gates and Inverters - Multi-Function, Configurable components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Gates and Inverters - Multi-Function, Configurable part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Gates and Inverters - Multi-Function, Configurable parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Gates and Inverters - Multi-Function, Configurable components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
