Gates and Inverters - Multi-Function, Configurable
Browse available Gates and Inverters - Multi-Function, Configurable part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4068BEG4IC 8INPUT NAND/AND GATE 14-DIP |
2,589 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
NLV7SZ58DFT2GIC GATE MULTIFUNCT CONF SC-88 |
3,578 | - |
|
Datasheet | 7SZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -55°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
SN74AUP1G97YEPRIC GATE MULT-FUNC CONFIG 6-DSBGA |
1,125 | - |
|
Datasheet | 74AUP | 6-XFBGA, DSBGA | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-DSBGA |
|
CD4068BMTIC 8INPUT NAND/AND GATE 14-SOIC |
1,889 | - |
|
Datasheet | 4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
SN74AUP1G58DRYRIC GATE MULT-FUNC CONFIG 6SON |
1,072 | - |
|
Datasheet | 74AUP | 6-UFDFN | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 6-SON (1.45x1) |
|
74AUP1G3208GW,125IC 3-IN OR-AND GATE LP 6TSSOP |
2,694 | - |
|
Datasheet | 74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-TSSOP |
|
74LVC1G57GF,132IC CONFIG MULTI-FUNC GATE 6XSON |
1,254 | - |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
74LVC1G3208DBVTG4IC SGL 3IN OR/AND GATE SOT23-6 |
1,188 | - |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Discontinued at Digi-Key | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
74F64PCIC GATE AND/OR 4-2-3-2INP 14-DIP |
1,178 | - |
|
Datasheet | 74F | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Differential | 1mA, 20mA | 4.5V ~ 5.5V | 0°C ~ 70°C | - | - | Through Hole | 14-MDIP |
|

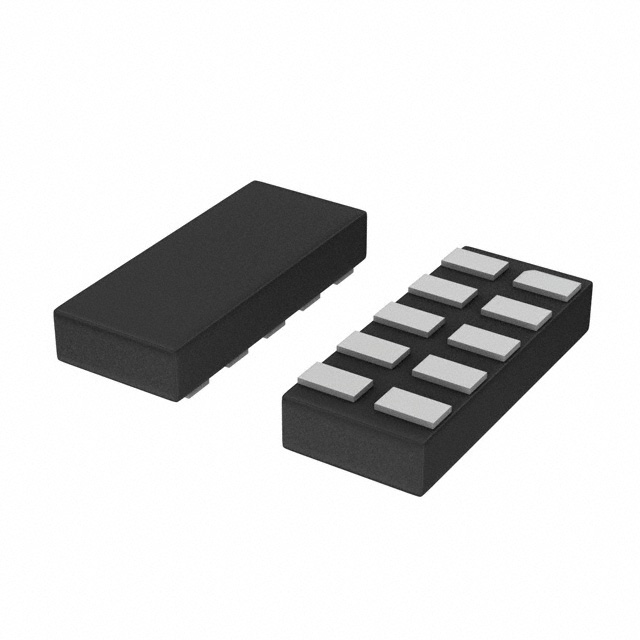

74AUP2G57GFXIC GATE MULTIFUNCTION DL XSON10U |
1,327 | - |
|
Datasheet | 74AUP | 10-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XSON (1.7x1) |
|
74AUP2G58GFXIC GATE MULTIFUNCTION DL XSON10U |
2,103 | - |
|
Datasheet | 74AUP | 10-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 2 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 10-XSON (1.7x1) |
|
SN74AUP1G99DCUTG4IC CONFIG MULTI FUNCTION US8 |
1,534 | - |
|
Datasheet | 74AUP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
|
SN74LVC1G97DBVTG4IC CONFIG MULTI FUNCTION SOT23-6 |
4,363 | - |
|
Datasheet | 74LVC | SOT-23-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
|
|
SN74LVC1G99DCUTE4IC CONFIG MULTIPLE FUNCT US8 |
4,213 | - |
|
Datasheet | 74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
|
SN74LVC1G99DCUTG4IC CONFIG MULTI FUNCTION US8 |
2,974 | - |
|
Datasheet | 74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
74AUP1G57GF,132IC CONFIG MULTI-FUNC GATE 6-XSON |
1,234 | - |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
SN74LVC1G97DCKTG4IC CONFIG MULTI FUNCTION SC70-6 |
4,248 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | SC-70-6 |
|
CD4019BEE4CMOS QUAD AND/OR SELECT GATE 16- |
4,537 | - |
|
Datasheet | 4000B | 16-DIP (0.300", 7.62mm) | Tube | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 16-PDIP |
|
CD4068BEE4CMOS 8-INPUT NAND/AND GATE 14-PD |
4,943 | - |
|
Datasheet | 4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | AND/NAND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
74AUP3G3404DCHIC DUAL BUFFER SGL INVERT 8VSSOP |
2,102 | - |
|
Datasheet | 74AUP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Buffer/Inverter | 3 | 3 Input (2, 1) | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
Gates and Inverters - Multi-Function, Configurable FAQ
Common questions about selecting, comparing and sourcing Gates and Inverters - Multi-Function, Configurable components through Winsun (HK) Electronics.
What should I check when selecting Gates and Inverters - Multi-Function, Configurable components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Gates and Inverters - Multi-Function, Configurable part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Gates and Inverters - Multi-Function, Configurable parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Gates and Inverters - Multi-Function, Configurable components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
