Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "74AHC1G08GW,125")
|
74AHC1G08GW,125IC GATE AND 1CH 2-INP 5-TSSOP |
240,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HCT1G04GV,125IC INVERTER 5TSOP |
342,156 | - |
|
Datasheet | 74HCT | SC-74A, SOT-753 | Bulk | Active | Inverter | 1 | 1 | - | 4.5V ~ 5.5V | 20 µA | 2mA, 2mA | 0.8V | 2V | 10ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
74LVC1G11GW-Q100HIC GATE AND |
34,002 | - |
|
Datasheet | 74LVC | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSSOP |
|

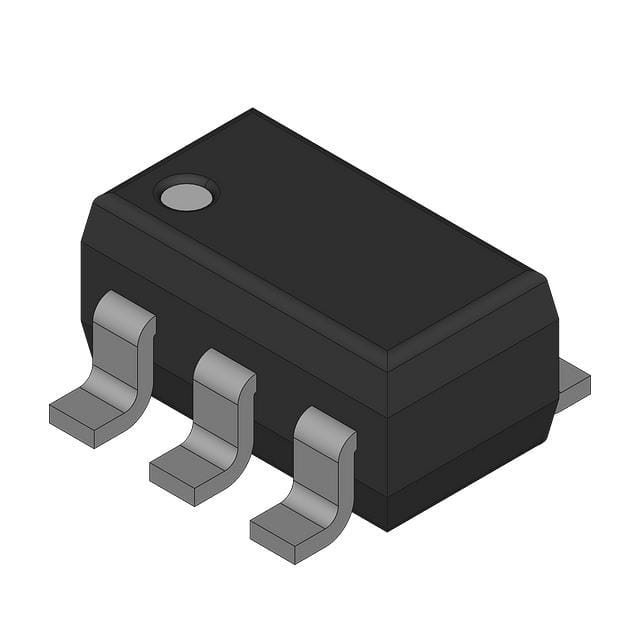

74LVC1GU04GV,125IC INVERTER 1CH 1-INP SC74A |
21,160 | - |
|
Datasheet | 74LVC | SC-74A, SOT-753 | Bulk | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.33V ~ 1.1V | 1.32V ~ 4.4V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-74A |
|
|
74HCT1G86GV,125IC GATE XOR 1CH 2-INP 5TSOP |
41,242 | - |
|
Datasheet | 74HCT | SC-74A, SOT-753 | Bulk | Active | XOR (Exclusive OR) | 1 | 2 | - | 4.5V ~ 5.5V | 20 µA | 2mA, 2mA | 0.8V | 2V | 27ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
74AHCT1G06GW,125IC INVERTER O-D OUTPUT 5TSSOP |
11,638 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LVC1G00GM,115IC GATE NAND 1CH 2-INP 6-XSON |
142,175 | - |
|
Datasheet | 74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74LVC1G38GM,115IC GATE NAND 1CH 2-INP 6-XSON |
140,000 | - |
|
Datasheet | 74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LVC1G10GM,115IC GATE NAND 1CH 3-INP 6XSON |
125,000 | - |
|
Datasheet | 74LVC | 6-XFDFN | Bulk | Active | NAND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1.45x1) |
|
74LVC1G02GX,125IC GATE NOR 1CH 2-INP 5X2SON |
113,906 | - |
|
Datasheet | 74LVC | 4-XFDFN Exposed Pad | Bulk | Active | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-X2SON (0.80x0.80) |
Gates and Inverters FAQ
Common questions about filtering, comparing and sourcing Gates and Inverters components.
How can I narrow the Gates and Inverters selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Gates and Inverters part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
