Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

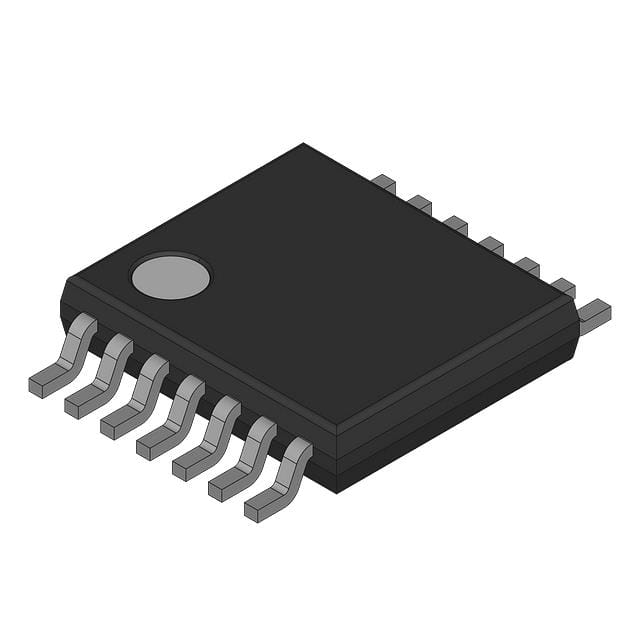

74LVC32APW/DG118IC GATE OR 4CH 2-INP 14TSSOP |
4,090 | - |
|
Datasheet | 74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | OR Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

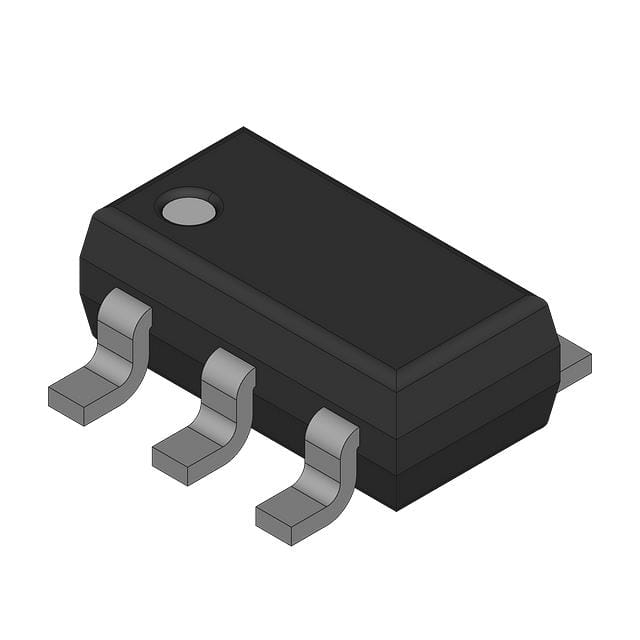

74HC2G04GV-Q100125IC INVERT SCHMITT 2CH 2INP 6TSOP |
1,039 | - |
|
Datasheet | 74HC | SC-74, SOT-457 | Bulk | Active | Inverter | 2 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
|
74HC30PW/S400118IC GATE NAND 1CH 8-INP 14TSSOP |
3,923 | - |
|
Datasheet | 74HC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 22ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74AHC3G04DP/C125IC INVERTER |
4,735 | - |
|
Datasheet | 74AHC | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Bulk | Active | Inverter | 3 | 3 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
74HC32BQ-Q100,115IC GATE OR 4CH 2-INP 14DHVQFN |
3,169 | - |
|
Datasheet | 74HC | 14-VFQFN Exposed Pad | Bulk | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-DHVQFN (2.5x3) |
|
74AUP1G04GN,132IC INVERTER 1CH 1-INP 6XSON |
4,870 | - |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (0.9x1) |
|
74LVT14BQ,115IC INVERTER 6CH 1-INP 14DHVQFN |
1,802 | - |
|
Datasheet | 74LVT | 14-VFQFN Exposed Pad | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 2.7V ~ 3.6V | - | 20mA, 32mA | 0.8V | 2V | 3.8ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|

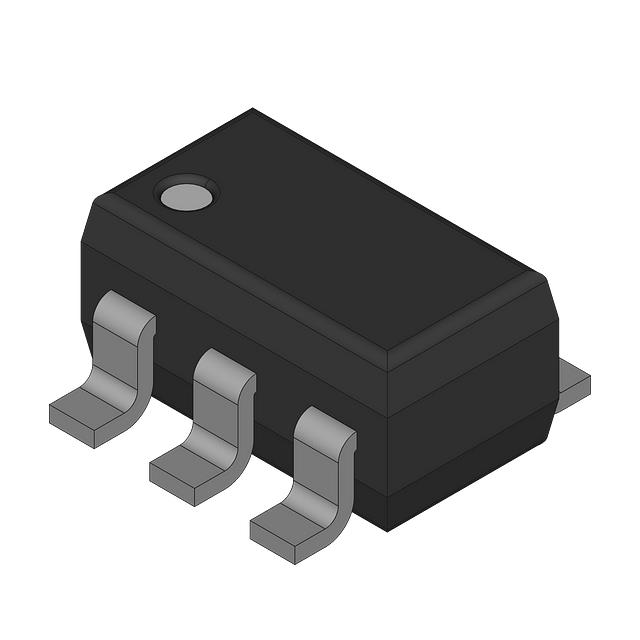

XC7SH14GV,125IC INVERT SCHMITT 1CH 1INP 5TSOP |
1,839 | - |
|
Datasheet | 7SH | SC-74A, SOT-753 | Bulk | Active | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSOP |
|
74LV08PW,118IC GATE AND |
1,000 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74HC132PW,112IC GATE NAND |
2,947 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Gates and Inverters FAQ
Common questions about filtering, comparing and sourcing Gates and Inverters components.
How can I narrow the Gates and Inverters selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Gates and Inverters part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
