Gates and Inverters

Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.

If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.

Parametric Selection Filter options by technical parameters

Stock & Datasheets Review availability and technical references

RFQ & BOM Support Send your target MPN, quantity or BOM

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Logic Type	Number of Circuits	Number of Inputs	Features	Voltage - Supply	Current - Quiescent (Max)	Current - Output High, Low	Input Logic Level - Low	Input Logic Level - High	Max Propagation Delay @ V, Max CL	Operating Temperature	Grade	Qualification	Mounting Type	Supplier Device Package
74AUP1G08GM/S711115 IC GATE AND 1CH 2-INP 6XSON NXP USA Inc.	2,866	-	RFQ	Datasheet	74AUP	6-XFDFN	Bulk	Active	AND Gate	1	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	6.2ns @ 3.3V, 30pF	-40°C ~ 125°C	-	-	Surface Mount	6-XSON (1.45x1)

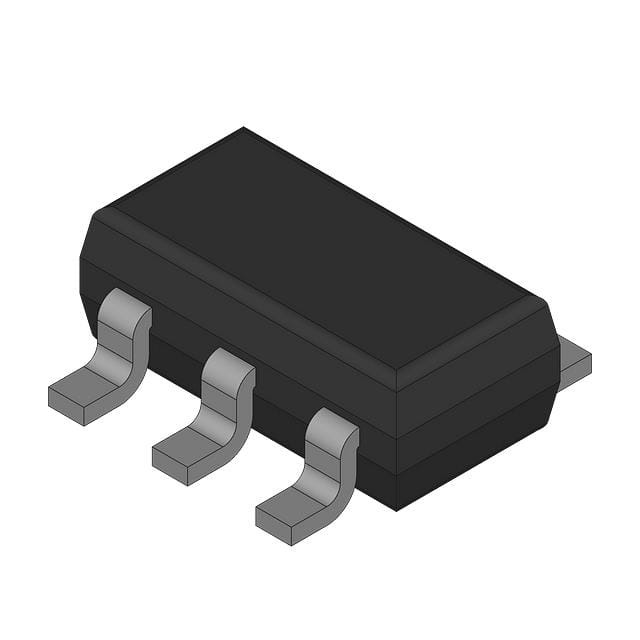

74LVC1G14GV-Q100125 IC INVERT SCHMITT 1CH 1INP SC74A NXP USA Inc.	1,307	-	RFQ	Datasheet	74LVC	SC-74A, SOT-753	Bulk	Active	Inverter	1	1	Schmitt Trigger	1.65V ~ 5.5V	4 µA	32mA, 32mA	0.46V ~ 1.58V	1.14V ~ 2.79V	6.5ns @ 5V, 50pF	-40°C ~ 125°C (TA)	Automotive	AEC-Q100	Surface Mount	SC-74A
74HCT14D/C4118 IC INVERT SCHMITT 6CH 1-INP 14SO NXP USA Inc.	4,938	-	RFQ	Datasheet	74HCT	14-SOIC (0.154", 3.90mm Width)	Bulk	Active	Inverter	6	1	Schmitt Trigger	4.5V ~ 5.5V	2 µA	4mA, 4mA	0.5V ~ 0.6V	1.9V ~ 2.1V	34ns @ 4.5V, 50pF	-40°C ~ 125°C	-	-	Surface Mount	14-SO
74AUP1G08GX/S500125 IC GATE AND 1CH 2-INP 5X2SON NXP USA Inc.	3,770	-	RFQ	Datasheet	74AUP	4-XFDFN Exposed Pad	Bulk	Active	AND Gate	1	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	6.2ns @ 3.3V, 30pF	-40°C ~ 125°C	-	-	Surface Mount	5-X2SON (0.80x0.80)
74AUP2G04GM125 IC INVERTER 2CH 2-INP 6XSON NXP USA Inc.	2,868	-	RFQ	Datasheet	74AUP	6-XFDFN	Bulk	Active	Inverter	2	2	-	0.8V ~ 3.6V	500 nA	4mA, 4mA	0.7V ~ 0.9V	1.6V ~ 2V	5.4ns @ 3.3V, 30pF	-40°C ~ 125°C	-	-	Surface Mount	6-XSON (1.45x1)

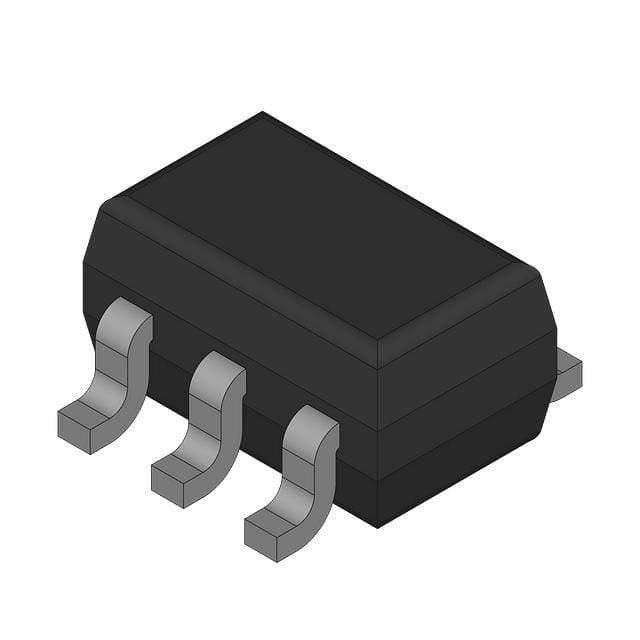

74HCT1G08GW/S400125 IC GATE AND 1CH 2-INP 5TSSOP NXP USA Inc.	4,233	-	RFQ	Datasheet	74HCT	5-TSSOP, SC-70-5, SOT-353	Bulk	Active	AND Gate	1	2	-	4.5V ~ 5.5V	20 µA	2mA, 2mA	0.8V	2V	27ns @ 4.5V, 50pF	-40°C ~ 125°C	-	-	Surface Mount	5-TSSOP
74LVC1G86GV-Q100125 IC GATE XOR NXP USA Inc.	3,561	-	RFQ	Datasheet	74LVC	SC-74A, SOT-753	Bulk	Active	XOR (Exclusive OR)	1	2	-	1.65V ~ 5.5V	4 µA	32mA, 32mA	0.7V ~ 0.8V	1.7V ~ 2V	5.5ns @ 5V, 50pF	-40°C ~ 125°C	Automotive	AEC-Q100	Surface Mount	5-TSOP
74HC10D/S400118 IC GATE NAND 3CH 3-INP 14SO NXP USA Inc.	4,107	-	RFQ	Datasheet	74HC	14-SOIC (0.154", 3.90mm Width)	Bulk	Active	NAND Gate	3	3	-	2V ~ 6V	2 µA	5.2mA, 5.2mA	0.5V ~ 1.8V	1.5V ~ 4.2V	16ns @ 6V, 50pF	-40°C ~ 125°C	-	-	Surface Mount	14-SO
74HC1GU04GV-Q100125 IC INVERTER 1CH 1-INP 5TSOP NXP USA Inc.	3,199	-	RFQ	Datasheet	74HC	SC-74A, SOT-753	Bulk	Active	Inverter	1	1	-	2V ~ 6V	20 µA	2.6mA, 2.6mA	0.3V ~ 1.2V	1.7V ~ 4.8V	18ns @ 6V, 50pF	-40°C ~ 125°C	Automotive	AEC-Q100	Surface Mount	5-TSOP
74HC1GU04GW/C125 IC INVERTER 1CH 1-INP 5TSSOP NXP USA Inc.	2,137	-	RFQ	Datasheet	74HC	5-TSSOP, SC-70-5, SOT-353	Bulk	Active	Inverter	1	1	-	2V ~ 6V	20 µA	2.6mA, 2.6mA	0.3V ~ 1.2V	1.7V ~ 4.8V	18ns @ 6V, 50pF	-40°C ~ 125°C	-	-	Surface Mount	5-TSSOP

WINSUN SOURCING SUPPORT

Need Help Sourcing Gates and Inverters?

Send the target part number, manufacturer, specifications and quantity. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and alternative-part options when appropriate.

Availability and lead-time support BOM, shortage and alternative sourcing

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

Gates and Inverters FAQ

Common questions about filtering, comparing and sourcing Gates and Inverters components.

How can I narrow the Gates and Inverters selection?

Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.

Should I confirm the datasheet before selecting a part?

Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.

Can Winsun (HK) Electronics help source a specific Gates and Inverters part number?

Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.

Do you support BOM, shortage or alternative-part requirements?

Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
