Gates and Inverters
Use the filters and product table below to compare Gates and Inverters components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74AUP1G06GM,115IC INVERTER O-D LP 6-XSON |
185,000 | - |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | Inverter | 1 | 1 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 10.5ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74LVC14APW,118IC INVERTER |
175,000 | - |
|
Datasheet | 74LVC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.75V ~ 1.5V | 1V ~ 2V | 8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC1G27GF,132IC GATE NOR 1CH 3-INP 6XSON |
169,560 | - |
|
Datasheet | 74LVC | 6-XFDFN | Bulk | Active | NOR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1x1) |
|

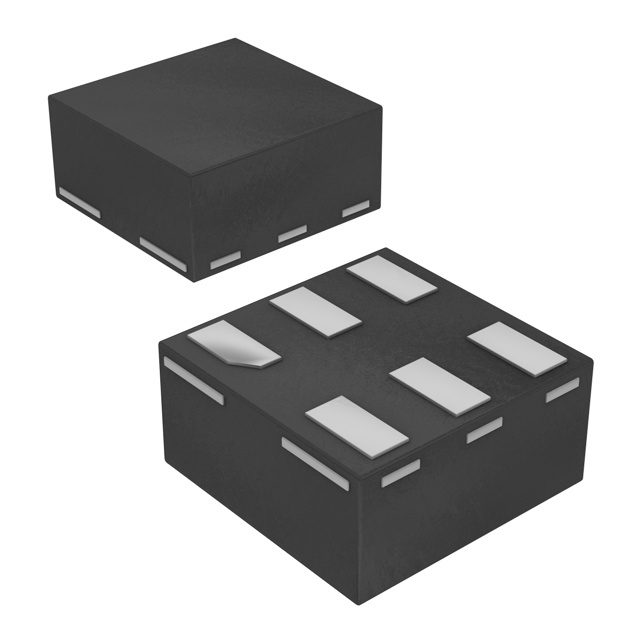

74LVC1GU04GS,132IC INVERTER 1CH 1-INP 6XSON |
161,984 | - |
|
Datasheet | 74LVC | 6-XFDFN | Bulk | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.33V ~ 1.1V | 1.32V ~ 4.4V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
|
74AUP1G02GM,115IC GATE NOR 1CH 2-INP 6-XSON |
85,000 | - |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | NOR Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
74LVC3G06GM,125IC INVERTER 3CH 3-INP 8XQFN |
84,194 | - |
|
Datasheet | 74LVC | 8-XFQFN Exposed Pad | Bulk | Active | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 4 µA | 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
74LVC2G00GT,115IC GATE NAND 2CH 2-INP 8-XSON |
65,000 | - |
|
Datasheet | 74LVC | 8-XFDFN | Bulk | Active | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
|
74LVC1G10GF,132IC GATE NAND 1CH 3-INP 6XSON |
60,000 | - |
|
Datasheet | 74LVC | 6-XFDFN | Bulk | Active | NAND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON (1x1) |
|
|
74AUP2G04GM,115IC INVERTER DUAL 1-INPUT 6XSON |
45,000 | - |
|
Datasheet | 74AUP | 6-XFDFN | Bulk | Active | Inverter | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
|
74LVC3G06GM,125IC INVERTER |
43,879 | - |
|
Datasheet | 74LVC | 8-XFQFN Exposed Pad | Bulk | Active | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 4 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
Gates and Inverters FAQ
Common questions about filtering, comparing and sourcing Gates and Inverters components.
How can I narrow the Gates and Inverters selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Gates and Inverters part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
