Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

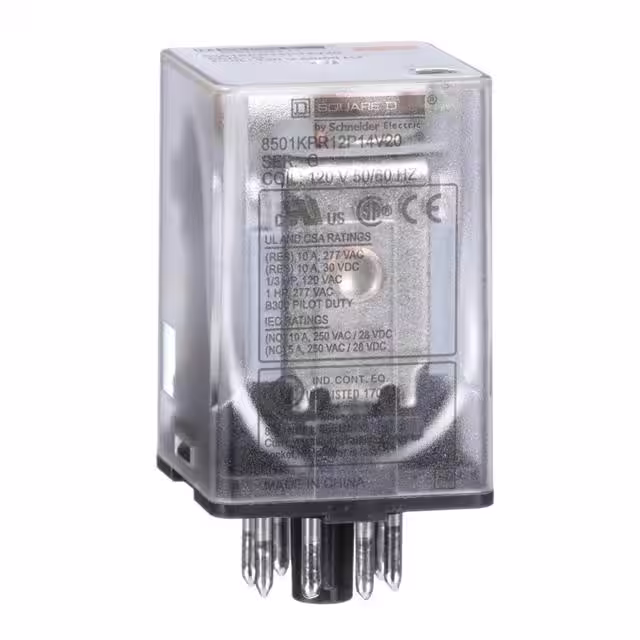

8501KPR12P14V20PLUG IN RELAY, TYPE KP, TUBULAR, |
3,009 | - |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
8501KPDR13V53RELAY 3CO CYL PIN 6.6A@240V 24VD |
3,364 | - |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

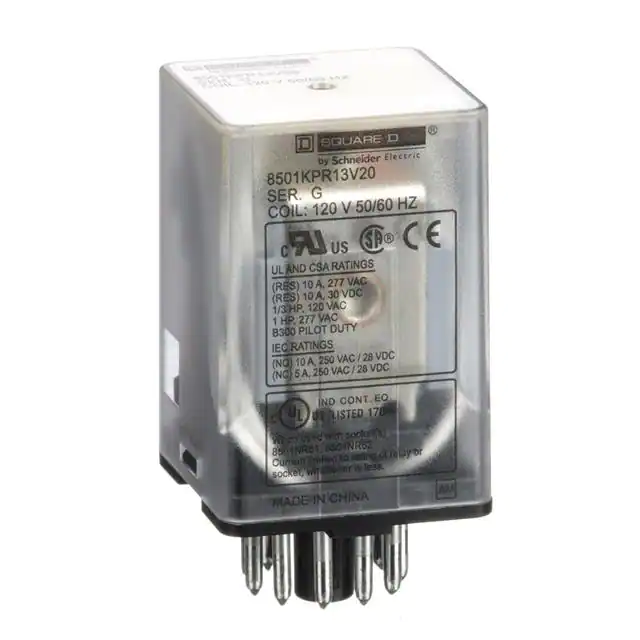

8501KPR13V20PLUG IN RELAY, TYPE KP, TUBULAR, |
3,493 | - |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

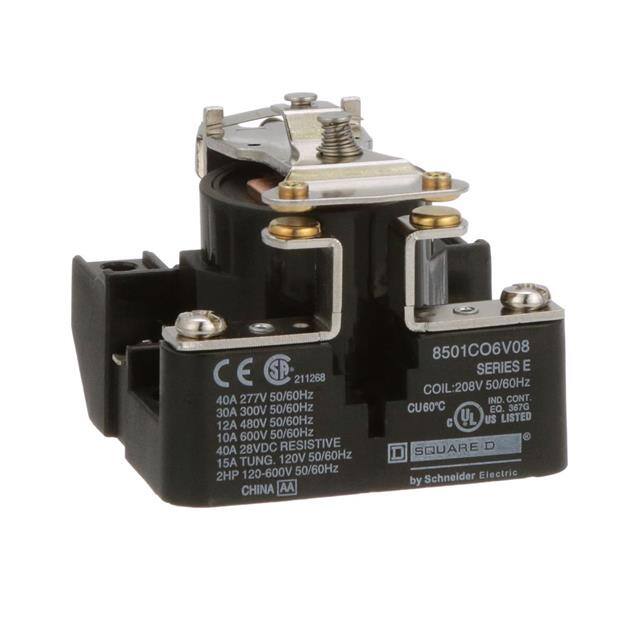

8501CO6V08POWER RELAY, TYPE C, 2.0 HP, 30A |
3,890 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 208VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
|
8501KPR13V14RELAY 3CO CYL PIN 6.6A@240V 24VA |
1,324 | - |
|
Datasheet | Square D 8501K | Box | Active | Chassis Mount | 24VAC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

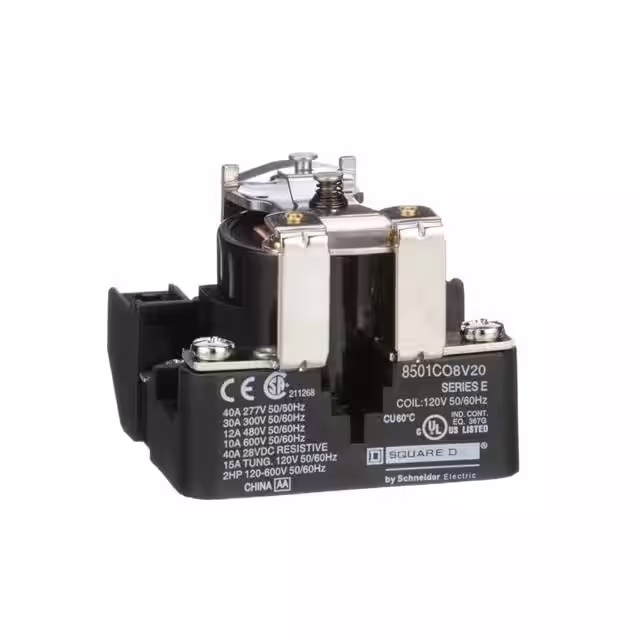

8501CO8V20POWER RELAY, TYPE C, 2.0 HP, 30A |
3,529 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|

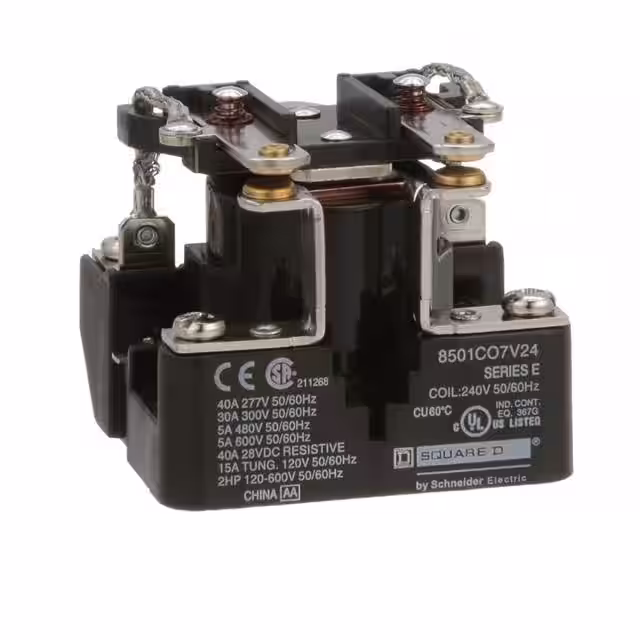

8501CO7V24POWER RELAY, TYPE C, 2 HP, 30A R |
3,844 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|

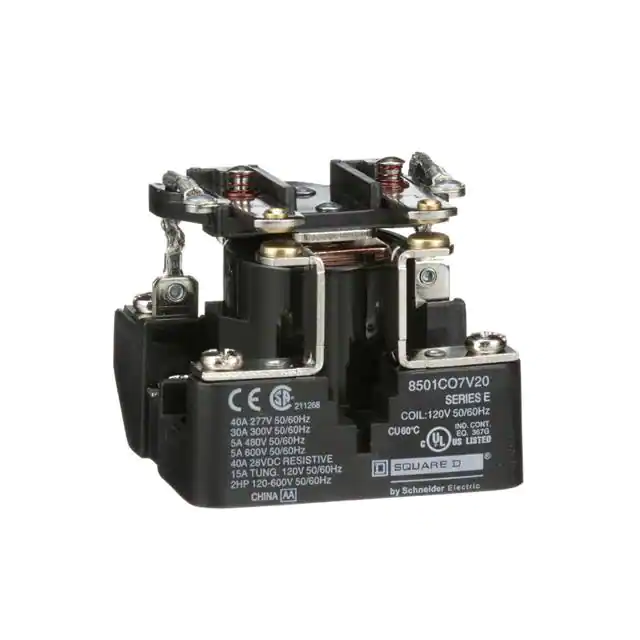

8501CO7V20POWER RELAY, TYPE C, 2 HP, 30A R |
3,758 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
|
199DBX-16OPEN PWR RY, SPST-NO-DM, 40A, 48 |
4,675 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 48VDC | SPST-NO (DM) (1 Form X) | 40 A | 600VDC - Max | 24000W | 40 mA | Non Latching | - | Screw Terminal | - | - | 40.8 VDC | 4.8 VDC | - | - | -55°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

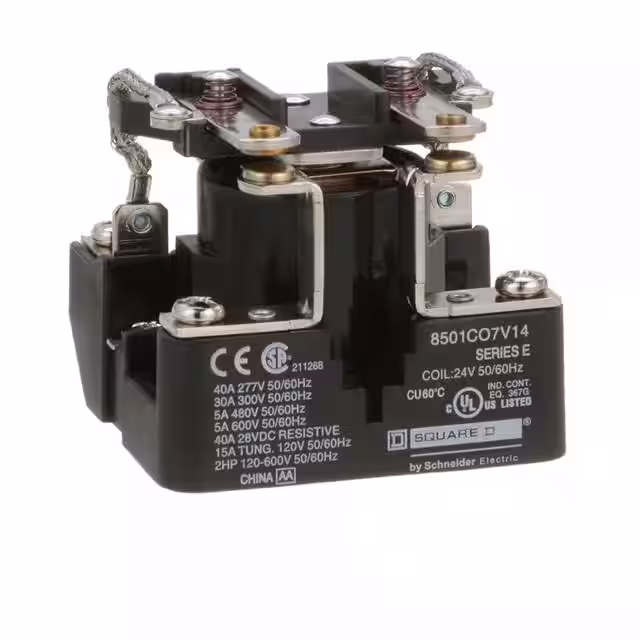

8501CO7V14POWER RELAY, TYPE C, 2 HP, 30A R |
3,786 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
