Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8501CO16V08POWER RELAY, TYPE C, 2 HP, 30A R |
3,015 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 208VAC | SPDT (1 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CO16V14POWER RELAY, TYPE C, 2 HP, 30A R |
2,315 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
8501CDO22V51POWER RELAY, TYPE C, 20A RESISTI |
1,879 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 325VDC - Max | 6500VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 60°C | - | General Purpose | - | - |
|

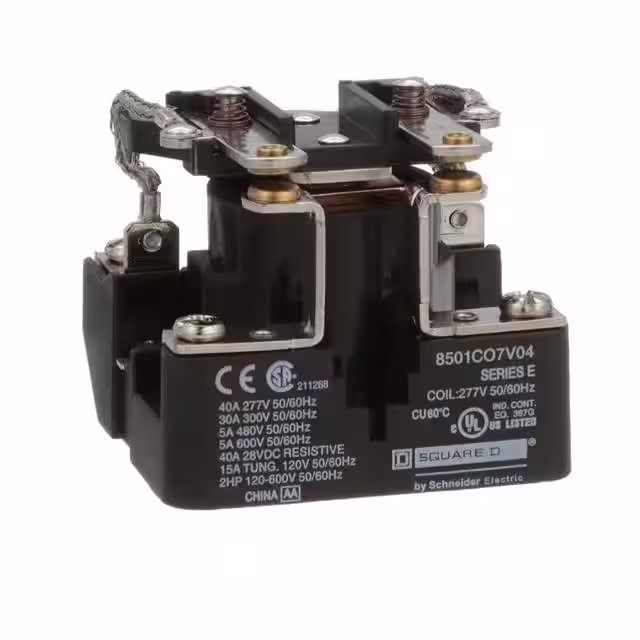

8501CO7V04POWER RELAY, TYPE C, 1.5 HP, 30A |
1,396 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 277VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|

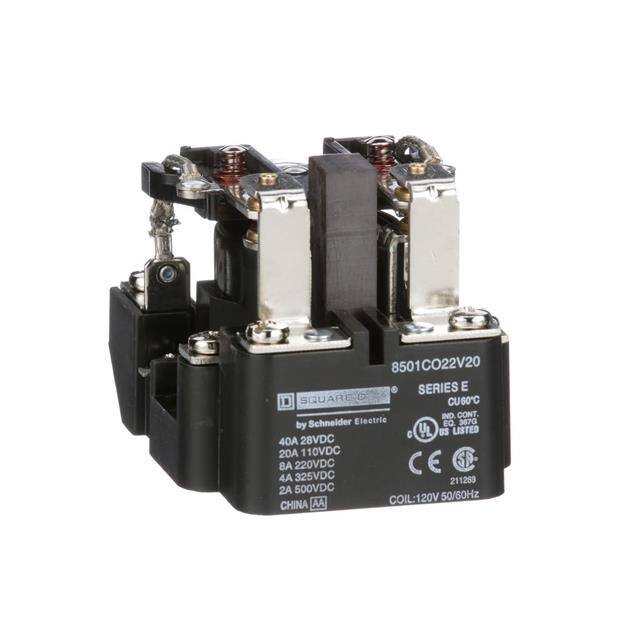

8501CO22V20POWER RELAY, TYPE C, 10A RESISTI |
4,415 | - |
|
Datasheet | Square D 8501C | Box | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 20 A | 325VDC - Max | 6440VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|

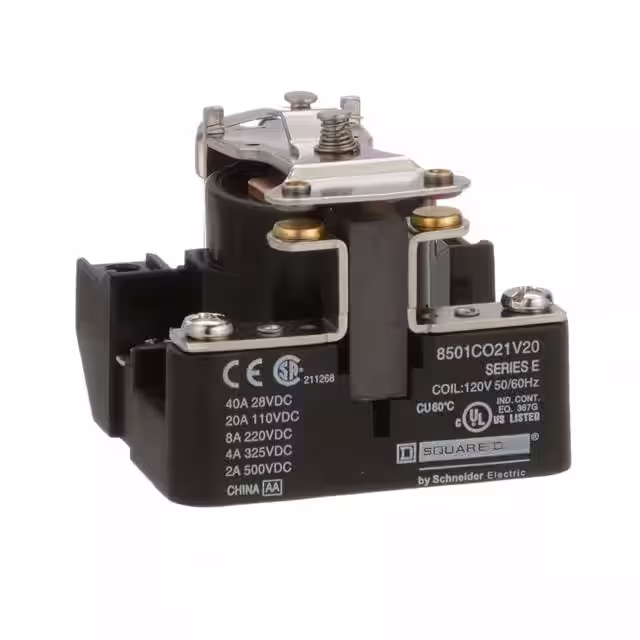

8501CO21V20POWER RELAY, TYPE C, 20A RESISTI |
4,887 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 120VAC | SPST-NO (1 Form A) | 20 A | 500VDC - Max | 10000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|

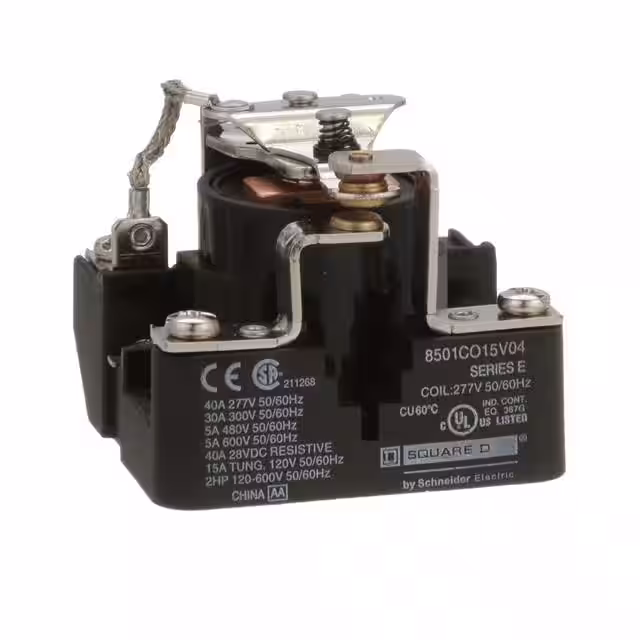

8501CO15V04POWER RELAY, TYPE C, 2 HP, 30A R |
2,192 | - |
|
Datasheet | Square D 8501C | Box | Obsolete | Chassis Mount | 277VAC | SPDT (1 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
|
CAD326BDS135TESYS AUX CTR 3F 2O RING TERM 24 |
3,650 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAD32GDRELAY GEN PURPOSE 5PST 10A 125V |
2,865 | - |
|
Datasheet | TeSys | Box | Active | DIN Rail | 125VDC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 87.5 VDC | 12.5 VDC | 72 ms | 25 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
8501XO20V06RELAY 600VAC 10AMP NEMA +OPTIONS |
3,299 | - |
|
Datasheet | Square D 8501X | Box | Active | Chassis Mount | 480VAC | DPST-NO (2 Form A) | 10 A | 600VAC - Max | 6000VA | - | Non Latching | - | Screw Terminal | - | - | 408 VAC | - | 15 ms | 16 ms | -40°C ~ 71°C | - | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
