Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
725AXXSC3ML12DPWR RELAY 30A 1NO SCREW TERM DIN |
2,648 | - |
|
Datasheet | Harmony | Box | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 160 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | - | 9.6 VDC | - | 30 ms | - | -20°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXBXC12D389F POWER RELAY, DPDT, 25A, 12V |
3,067 | - |
|
Datasheet | SE | Box | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 25 A | 600VAC - Max | 15000VA | 120 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXBXC124DPWR RELAY, DPDT, 25A, 24VDC, FLA |
1,753 | - |
|
Datasheet | SE | Box | Obsolete | Socketable | 24VDC | DPDT (2 Form C) | 25 A | 600VAC - Max | 15000VA | 60 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXBXC112DPWR RELAY, DPDT, 25A, 12VDC, FLA |
3,071 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 25 A | 600VAC - Max | 15000VA | 120 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

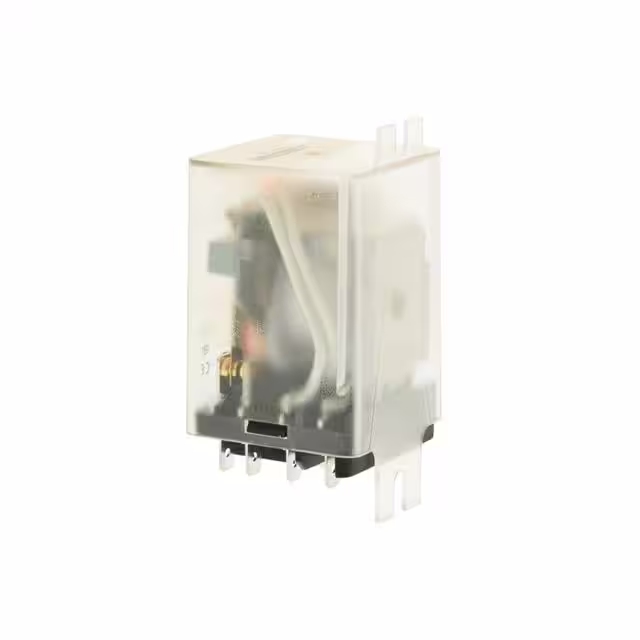

8501KFR13V14PLUG IN RELAY, TYPE KF, FLANGE M |
4,620 | - |
|
Datasheet | Square D 8501K | Box | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
725BXXSC3ML240APWRRY,DPSTNO,25A,240VAC,DIN/PANE |
3,624 | - |
|
Datasheet | Harmony | Box | Obsolete | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 11.4 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | - | 204 VAC | - | 30 ms | - | -20°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
300XBXC124D300 POWER RELAY, DPDT, 30A, 24 V |
2,610 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 80 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | - | - | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
300XBXC112D300 POWER RELAY, DPDT, 30A, 12VD |
4,233 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 210.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | - | - | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
300XBXC1-12DPOWER RELAY |
4,334 | - |
|
Datasheet | - | Box | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 600VAC, 28VDC - Max | 840W | 210.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | - | - | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
8501CSPSTOPEN POWER RELAY 120VAC, SPST-NO |
4,515 | - |
|
Datasheet | Square D 8501C | Box | Active | Socketable | 120VAC | SPST-NO (1 Form A) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | 102 VAC | - | - | - | -30°C ~ 50°C | - | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
