Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
389FXBXC1120APWR RELAY, DPDT, 25A, 120VAC, FL |
4,165 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 25 A | 600VAC - Max | 15000VA | 70.6 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 102 VAC | 12 VAC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXBXC120A389F PWR RELAY, DPDT, 25A, 120 V |
2,573 | - |
|
Datasheet | SE | Box | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 25 A | 600VAC - Max | 15000VA | 70.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 102 VAC | 12 VAC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

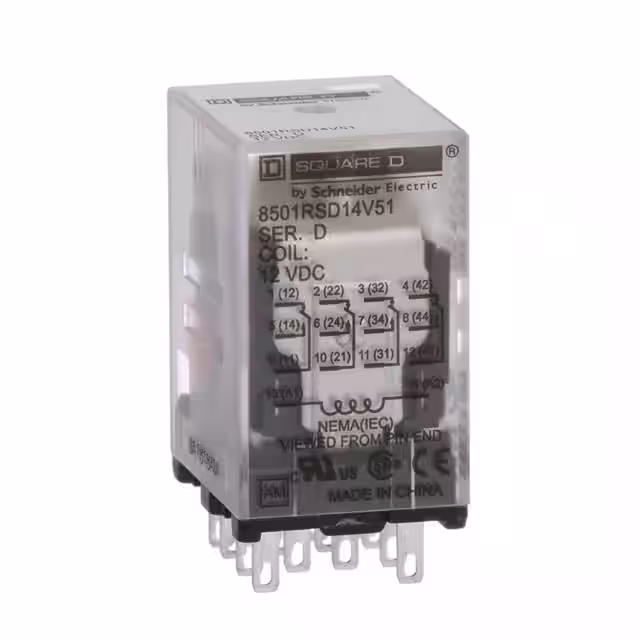

8501RSD14V51PLUG IN RELAY, TYPE R, MINIATURE |
1,510 | - |
|
Datasheet | Square D 8501R | Box | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 8 A | 300VAC, 30VDC - Max | 2400VA, 240W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
8501KUDR12P14V53RELAY 2CO QC PIN 10A@240V 24VDC |
2,184 | - |
|
Datasheet | Square D 8501K | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
8501KUR12P14V20RELAY 2CO QC PIN 10A@240V 120VAC |
1,389 | - |
|
Datasheet | Square D 8501K | Box | Obsolete | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 300VAC, 30VDC - Max | - | - | Non Latching | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

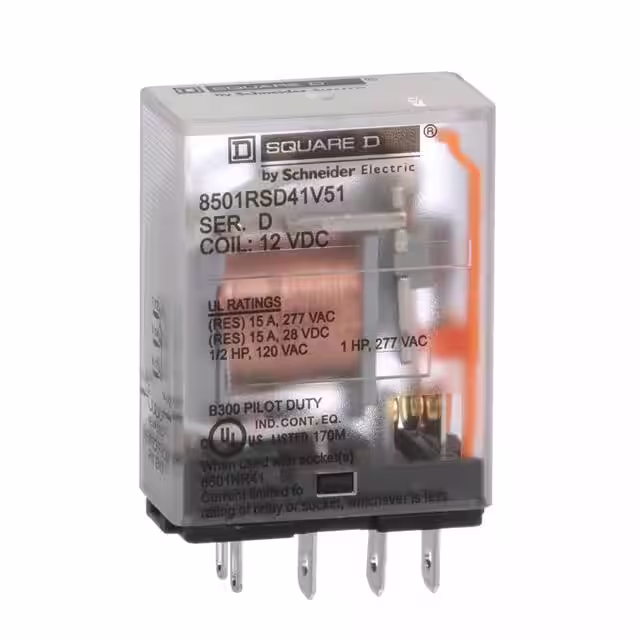

8501RSD41V51PLUG IN RELAY, TYPE R, MINIATURE |
3,592 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
RSB1A120B7PVHARMONY, INTERFACE PLUG-IN RELAY |
1,528 | - |
|
Datasheet | Harmony | Bulk | Active | DIN Rail | 24VAC | SPDT (1 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 68.6 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | 19.2 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
725BXXSC3ML24DPWRRY,DPSTNO,25A, 24VDC,DIN/PANE |
1,831 | - |
|
Datasheet | Harmony | Box | Obsolete | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 277VAC, 28VDC - Max | 6925VA, 700W | 80 mA | Non Latching | Test Button | Screw Terminal | - | - | 19.2 VDC | - | 30 ms | - | -20°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
300XBXC1120A300 POWER RELAY, DPDT, 30A, 110/ |
2,621 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 600VAC - Max | 18000VA | 94.5 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 102 VAC | 18 VAC | - | - | -40°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

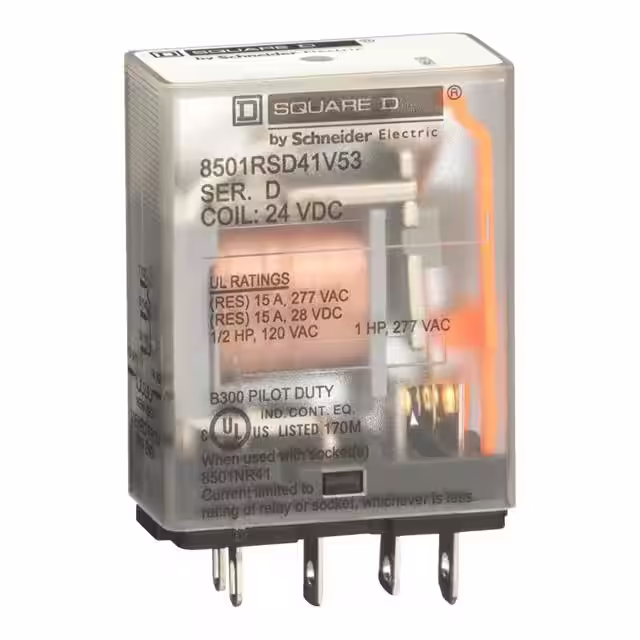

8501RSD41V53PLUG IN RELAY, TYPE R, MINIATURE |
3,501 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
