Power Relays, Over 2 Amps
Use the filters and product table below to compare Power Relays, Over 2 Amps components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
199X2OPEN PWR RY, SPDT, 40A, 12VDC |
1,453 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 12VDC | SPDT (1 Form C) | 40 A | 600VDC - Max | 24000W | 171.4 mA | Non Latching | - | Screw Terminal | - | - | 10.2 VDC | 1.2 VDC | - | - | -55°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
8501RSD42V53PLUG IN RELAY, TYPE R, MINIATURE |
4,601 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

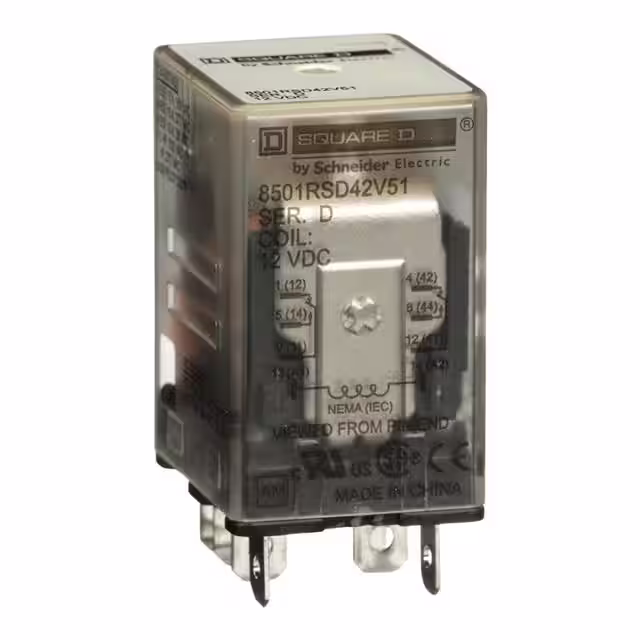

8501RSD42V51PLUG IN RELAY, TYPE R, MINIATURE |
2,968 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
389FXCXC112DPWR RELAY, 3PDT, 20A, 12VDC, FLA |
3,770 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 12VDC | 3PDT (3 Form C) | 20 A | 300VAC - Max | 6000VA | 120 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXCXC1-24DPWR RELAY, 3PDT, 20A, 24VDC, FLA |
4,266 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 24VDC | 3PDT (3 Form C) | 20 A | 300VAC - Max | 6000VA | 60 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXCXC1-12DPOWER RELAY |
1,021 | - |
|
Datasheet | - | Box | Active | Chassis Mount | 12VDC | 3PDT (3 Form C) | 20 A | 300VAC, 28VDC - Max | - | 120 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 1.2 VDC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXCXC120A389F POWER RELAY, 3PDT, 20A, 120 |
3,310 | - |
|
Datasheet | SE | Box | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 20 A | 300VAC - Max | 6000VA | 70.6 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | - | 102 VAC | 12 VAC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
389FXHXC124DPWR RY, SPDT-DM-DB,30A, 24VDC,FL |
4,484 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) + SPST-NC (DB) (1 Form Y) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 60 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VDC | 2.4 VDC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|

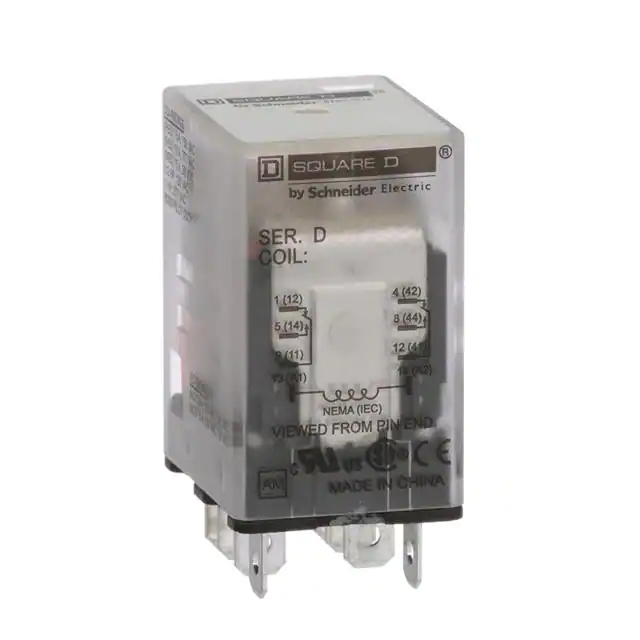

8501RS42V20PLUG IN RELAY, TYPE R, MINIATURE |
3,014 | - |
|
Datasheet | Square D 8501R | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 15 A | 300VAC, 30VDC - Max | 4500VA, 450W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
389FXCXC1120APWR RELAY, 3PDT, 20A, 120VAC, FL |
3,726 | - |
|
Datasheet | SE | Box | Obsolete | Chassis Mount | 120VAC | 3PDT (3 Form C) | 20 A | 300VAC - Max | 6000VA | 70.6 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 102 VAC | 12 VAC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps FAQ
Common questions about filtering, comparing and sourcing Power Relays, Over 2 Amps components.
How can I narrow the Power Relays, Over 2 Amps selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Power Relays, Over 2 Amps part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
