Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPC150DFCSENSOR 0.16" .09V 4SIP |
1,298 | - |
|
Datasheet | CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | - | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | Male - 0.16" (4.06mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -25°C ~ 85°C | - | - | Through Hole | 4-SIP |
|

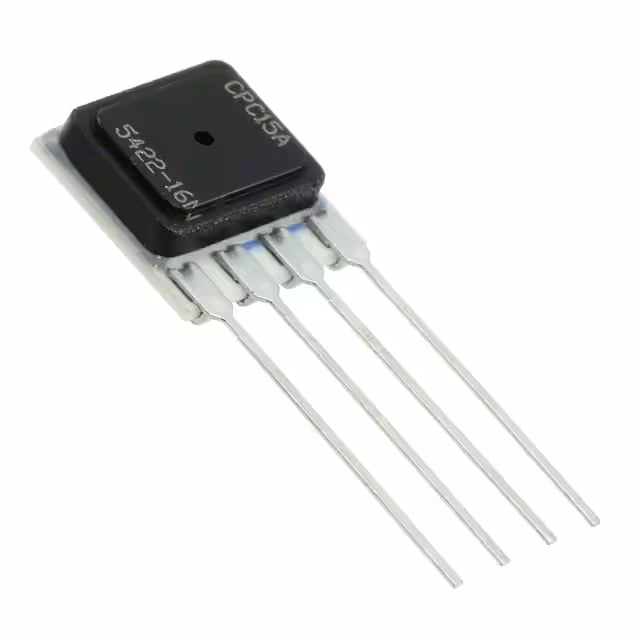

CPC15ACSENSOR 15PSIA .09V |
4,802 | - |
|
Datasheet | CPC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±2% | 3V ~ 16V | - | No Port | Temperature Compensated | - | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCMNNN015PA2A5SENSOR 15PSIA 12BIT 8SMD |
3,164 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
SSCSMNN010KGAF5SENSOR 1.45PSIG 4.7V 4SIP |
1,198 | - |
|
Datasheet | TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSMNN030PGAA3SENSOR 30PSIG 2.97V 4SIP |
2,701 | - |
|
Datasheet | TruStability® SSC | 4-SIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSANN001BAAA3SENSOR 14.5PSIA 0.19" 2.97V 4SIP |
3,119 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 14.5PSI (100kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSLNN100MG2A3SENSOR 1.45PSIG 0.1" 12BIT 4SIP |
4,188 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 1.45PSI (10kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCDRNN100PGAA5SENSOR 100PSIG 0.08" |
2,583 | - |
|
Datasheet | TruStability® SSC | 8-DIP (0.524", 13.30mm), Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Gauge | 100PSI (689.48kPa) | Analog Voltage | - | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
HSCDLNN015PGSA3SENSOR 15PSIG 0.1" 12BIT 8DIP |
3,352 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCMNNN001PG2A3SENSOR 1PSIG 12BIT 8SMT |
2,147 | - |
|
Datasheet | TruStability® SSC | 8-SMD, J-Lead | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
