Pressure Sensors, Transducers
Use the filters and product table below to compare Pressure Sensors, Transducers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDRRN005PD2A5SENSOR 5PSID 0.08" 12BIT 8DIP |
3,734 | - |
|
Datasheet | TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCMRNN160MDUCVSENSOR 2.32PSID 0.08" .023V 8SMT |
1,927 | - |
|
Datasheet | TruStability® TSC | 8-SMD, J-Lead, Side Port | Bulk | Active | Board Mount | Differential | ±2.32PSI (±16kPa) | Wheatstone Bridge | 0 mV ~ 23 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube | Barbed | Temperature Compensated | J Lead | ±29.01PSI (±200kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
SCC15DNSENSOR 15PSID 0.19" .095V |
1,433 | - |
|
Datasheet | SCC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 40 mV ~ 95 mV | ±0.5% | - | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

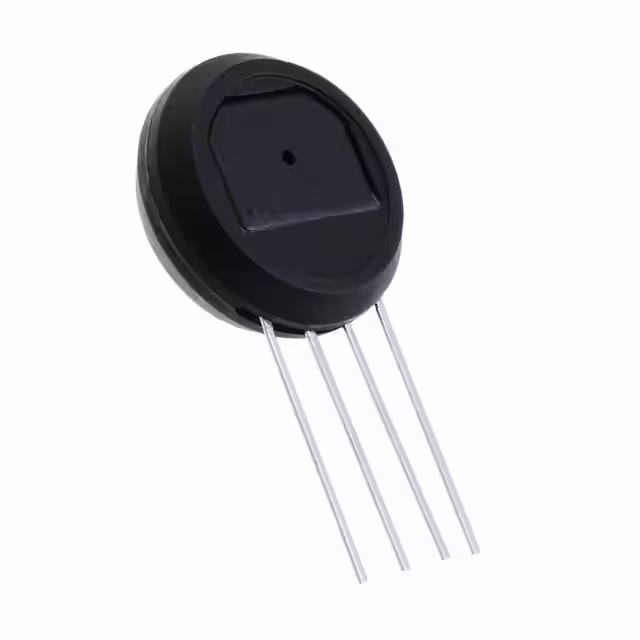

SSCSMNN600MGAF5SENSOR 8.7PSIG 4.7V 4SIP |
1,573 | - |
|
Datasheet | TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 8.7PSI (60kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCMLNN100PASA3SENSOR 100PSIA 0.1" 12BIT 8SMD |
4,384 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Absolute | 100PSI (689.48kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMNNN100PGAA3SENSOR 100PSIG 2.97V 8SMD |
4,623 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRNN600MGSA3SENSOR 8.7PSIG 0.08" 12BIT 8SMD |
4,963 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 8.7PSI (60kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMNNN015PASA5SENSOR 15PSIA 12BIT 8SMD |
1,948 | - |
|
Datasheet | TruStability® HSC | 8-SMD, J-Lead | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | SPI | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
SSCSNBN005PGAC5SENSOR 5PSIG 0.19" 4.25V 4SIP |
2,405 | - |
|
Datasheet | TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSSNN001PGAA5SENSOR 1PSIG 4.5V 4SIP |
2,956 | - |
|
Datasheet | TruStability® SSC | 4-SIP Module | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
Pressure Sensors, Transducers FAQ
Common questions about filtering, comparing and sourcing Pressure Sensors, Transducers components.
How can I narrow the Pressure Sensors, Transducers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pressure Sensors, Transducers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
