PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
AHRF750-2 PTC RESET FUSE 16V 7.5A RADIAL Littelfuse Inc.	1,000	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Tape & Reel (TR)	Active	Polymeric	16V	7.5 A	14.8 A	100 A	8 s	7.4 mOhms	22 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.925" (23.50mm)	-	0.200" (5.08mm)
MF-RHT700-2 PTC RESET FUSE 16V 7A RADIAL Bourns Inc.	3,321	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RHT	Tape & Reel (TR)	Active	Polymeric	16V	7 A	13 A	100 A	7 s	10 mOhms	25 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.862" (21.90mm)	-	0.201" (5.10mm)
AGRF1000 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	4,665	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AGRF	Bag	Active	Polymeric	16V	10 A	18.5 A	100 A	7 s	3.4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.650" L x 0.118" W (16.50mm x 3.00mm)	1.012" (25.70mm)	-	0.199" (5.05mm)
AGRF1100-2 PTC RESET FUSE 16V 11A RADIAL Littelfuse Inc.	1,000	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AGRF	Tape & Reel (TR)	Active	Polymeric	16V	11 A	20.3 A	100 A	7.5 s	3.3 mOhms	8.9 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.689" L x 0.118" W (17.50mm x 3.00mm)	1.043" (26.50mm)	-	0.228" (5.80mm)

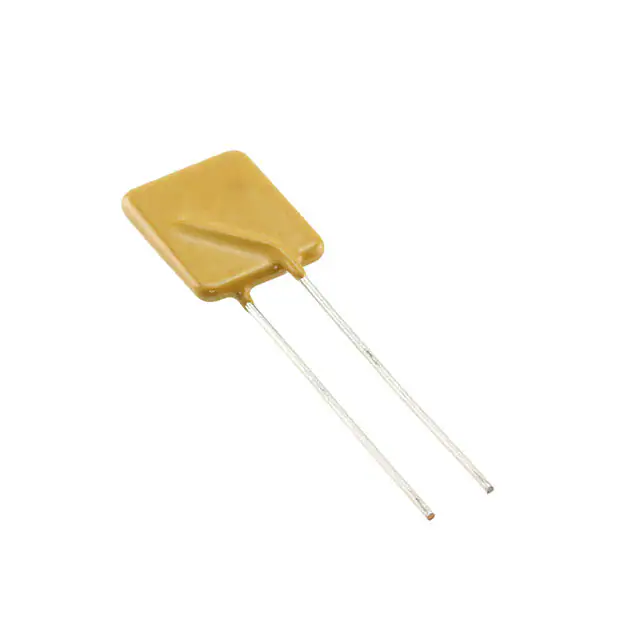

LVR055S-1 PTC RESET FUSE 240V 550MA RADIAL Littelfuse Inc.	756	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bag	Active	Polymeric	240V (265V Int)	550 mA	1.25 A	7 A	26 s	450 mOhms	1.45 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.551" L x 0.161" W (14.00mm x 4.10mm)	0.854" (21.70mm)	-	0.200" (5.08mm)
AHRF1000 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	4,161	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	16V	10 A	20.5 A	100 A	10.5 s	5.1 mOhms	15 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.689" L x 0.118" W (17.50mm x 3.00mm)	1.043" (26.50mm)	-	0.400" (10.15mm)
TRF600-160-1 PTC RESET FUSE 250V 160MA RADIAL Littelfuse Inc.	254	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF600	Bag	Active	Polymeric	250V (600V Int)	160 mA	320 mA	60 A	18 s	4 Ohms	18 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.630" L x 0.236" W (16.00mm x 6.00mm)	0.496" (12.60mm)	-	0.197" (5.00mm)
RHEF1300-2 PTC RESET FUSE 16V 13A RADIAL Littelfuse Inc.	210	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RHEF	Tape & Reel (TR)	Active	Polymeric	16V	13 A	24 A	100 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	-	-	-	Through Hole	0.925" L x 0.142" W (23.50mm x 3.60mm)	1.130" (28.70mm)	-	0.400" (10.15mm)
CMF-SDP10-2 PTC RESET FUSE 230V 180MA 4SMD Bourns Inc.	1,610	-	RFQ	Datasheet	4-SMD Cube	CMF-SDP	Tape & Reel (TR)	Active	Ceramic	230V (250V Int)	180 mA	360 mA	1 A	3.8 s	-	-	10 Ohms	-40°C ~ 125°C	-	-	-	Surface Mount	0.433" L x 0.354" W (11.00mm x 9.00mm)	-	0.453" (11.50mm)	-

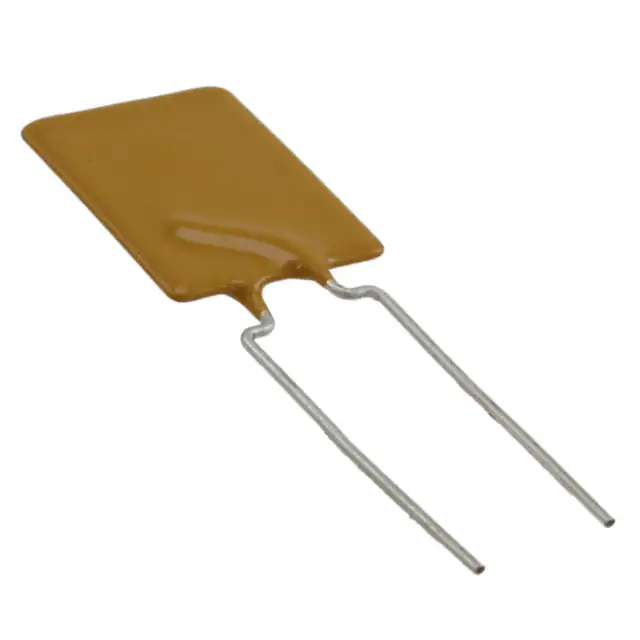

AHRF1000-2 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	1,000	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Tape & Reel (TR)	Active	Polymeric	16V	10 A	20.5 A	100 A	10.5 s	5.1 mOhms	15 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.689" L x 0.118" W (17.50mm x 3.00mm)	1.043" (26.50mm)	-	0.400" (10.15mm)
AHRF1400 PTC RESET FUSE 16V 14A RADIAL Littelfuse Inc.	4,426	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	16V	14 A	28.3 A	100 A	15.5 s	2.9 mOhms	9 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.925" L x 0.142" W (23.50mm x 3.60mm)	1.126" (28.60mm)	-	0.400" (10.15mm)
YQS5898PTO PTC RESET FUSE 12V RADIAL DISC Amphenol Advanced Sensors (Thermometrics)	1,392	-	RFQ	Datasheet	Radial, Disc	PTO	Bulk	Active	Ceramic	12V	-	-	-	-	-	-	25 Ohms	10°C ~ 55°C	-	-	-	Through Hole	0.350" Dia x 0.150" T (8.90mm x 3.80mm)	0.350" (8.89mm)	-	0.197" (5.00mm)
B59880C0120A051 PTC RESET FUSE 265V 55MA RADIAL EPCOS - TDK Electronics	3,718	-	RFQ	Datasheet	Radial, Disc	-	Tape & Reel (TR)	Active	Ceramic	265V	55 mA	110 mA	400 mA	-	-	-	70 Ohms	0°C ~ 60°C	-	-	-	Through Hole	0.354" Dia x 0.197" T (9.00mm x 5.00mm)	0.492" (12.50mm)	-	0.197" (5.00mm)
BK30-090-SI PTC RESET FUSE 30V 900MA RAD YAGEO	1,000	-	RFQ	Datasheet	Radial, Disc	BK30	Bulk	Active	Polymeric	30V	900 mA	1.8 A	40 A	5.9 s	90 mOhms	220 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" L x 0.122" W (7.40mm x 3.10mm)	0.571" (14.50mm)	-	0.201" (5.10mm)
BK30-135-SI PTC RESET FUSE 30V 1.35A RAD YAGEO	1,000	-	RFQ	Datasheet	Radial, Disc	BK30	Bulk	Active	Polymeric	30V	1.35 A	2.7 A	40 A	7.3 s	55 mOhms	160 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.362" L x 0.122" W (9.20mm x 3.10mm)	0.661" (16.80mm)	-	0.201" (5.10mm)
BK60-010-DZ PTC RESET FUSE 60V 100MA RAD YAGEO	640	-	RFQ	Datasheet	Radial, Disc	BK60	Bulk	Active	Polymeric	60V	100 mA	200 mA	40 A	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.236" Dia x 0.122" T (6.00mm x 3.10mm)	0.374" (9.50mm)	-	0.201" (5.10mm)
BK250-060-DY PTC RESET FUSE 250V 60MA RAD YAGEO	1,000	-	RFQ	Datasheet	Radial, Disc	BK250	Bulk	Active	Polymeric	250V	60 mA	120 mA	3 A	5 s	20 Ohms	45 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.181" T (7.40mm x 4.60mm)	0.571" (14.50mm)	-	0.201" (5.10mm)
BK250-080-DY PTC RESET FUSE 250V 80MA RAD YAGEO	982	-	RFQ	Datasheet	Radial, Disc	BK250	Bulk	Active	Polymeric	250V	80 mA	160 mA	3 A	5 s	10 Ohms	22 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.181" T (7.40mm x 4.60mm)	0.571" (14.50mm)	-	0.201" (5.10mm)
BK250-040-DY PTC RESET FUSE 250V 40MA RAD YAGEO	973	-	RFQ	Datasheet	Radial, Disc	BK250	Bulk	Active	Polymeric	250V	40 mA	80 mA	3 A	6 s	27 Ohms	65 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" Dia x 0.181" T (7.40mm x 4.60mm)	0.531" (13.50mm)	-	0.201" (5.10mm)
BK30-110-SI PTC RESET FUSE 30V 1.1A RAD YAGEO	1,000	-	RFQ	Datasheet	Radial, Disc	BK30	Bulk	Active	Polymeric	30V	1.1 A	2.2 A	40 A	6.6 s	70 mOhms	200 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.291" L x 0.122" W (7.40mm x 3.10mm)	0.701" (17.80mm)	-	0.201" (5.10mm)
