PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRF250-183USPTC RESET FUSE 100V 183MA RADIAL |
240 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" Dia x 0.118" T (6.50mm x 3.00mm) | 0.256" (6.50mm) | - | 0.197" (5.00mm) |
|
0ZRN0700FF1APTC RESET FUSE 16V 7A RADIAL |
2,850 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 7 A | 13 A | 100 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
|
ASMD125F-2PTC RESET FUSE 16V 1.04A 2SMD |
820 | - |
|
Datasheet | 2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.04 A | 2.46 A | 40 A | 20 s | 57 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|

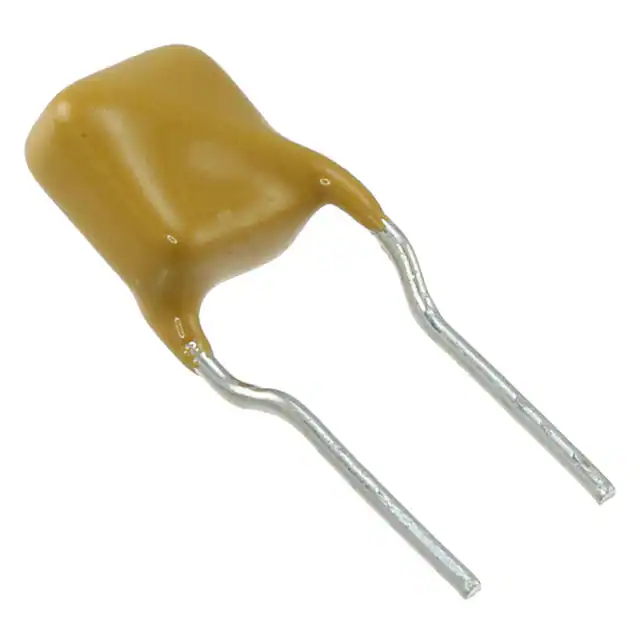

TRF250-120T-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
450 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1.2 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MF-R300-APPTC RESET FUSE 30V 3A RADIAL |
1,798 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-R | Cut Tape (CT) | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.472" L x 0.118" W (12.00mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
CMF-RL25U-15-0PTC RESET FUSE 220V 60MA RADIAL |
372 | - |
|
Datasheet | Radial, Disc | CMF-RL | Bulk | Active | Ceramic | 220V (600V Int) | 60 mA | 150 mA | 900 mA | 250 ms | - | - | 25 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.205" L x 0.138" W (5.20mm x 3.50mm) | 0.205" (5.20mm) | - | 0.197" (5.00mm) |
|
0ZRN0100FF2DPTC RESET FUSE 30V 1A RADIAL |
206 | - |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 30V | 1 A | 1.8 A | 40 A | 5.2 s | 180 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
0ZRN0050FF2DPTC RESET FUSE 30V 500MA RADIAL |
2,925 | - |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 900 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
ASMD200F-2PTC RESET FUSE 16V 1.73A 2SMD |
520 | - |
|
Datasheet | 2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.73 A | 3.93 A | 40 A | 30 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
PICOASMDC075S-2PPTC-MINI-PSW |
245 | - |
|
Datasheet | 0805 (2012 Metric), Concave | PolySwitch® picoASMDC | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 100 mOhms | 350 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.037" (0.93mm) | - |
|
TRF250-120UPTC RESET FUSE 60V 120MA RADIAL |
990 | - |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
AGRF700PTC RESET FUSE 16V 7A RADIAL |
281 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 7 A | 13.2 A | 100 A | 4 s | 6.6 mOhms | 20 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.199" (5.05mm) |
|
PTR016V1300-BKPTC RESET FUSE 16V 13A RADIAL |
4,483 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 13 A | 22.1 A | 100 A | 8.5 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.122" W (21.60mm x 3.10mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) |
|
AHRL400PTC RESET FUSE 4A 16V RAD |
438 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 4 A | 8 A | 50 A | 5 s | 16 mOhms | 28 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.331" L x 0.118" W (8.40mm x 3.00mm) | 0.528" (13.40mm) | - | 0.199" (5.05mm) |
|
MF-RHT070-2PTC RESET FUSE 16V 700MA RADIAL |
1,937 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 700 mA | 1.4 A | 40 A | 4 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.270" L x 0.118" W (6.86mm x 3.00mm) | 0.425" (10.80mm) | - | 0.114" (2.90mm) |
|
0ZRM0100FF2BPTC RESET FUSE 120V 1A RADIAL |
322 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 1 A | 2 A | 10 A | 15 s | 180 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.453" L x 0.161" W (11.50mm x 4.10mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
MF-RHT450-2PTC RESET FUSE 16V 4.5A RADIAL |
3,513 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.114" (2.90mm) |
|
MF-RHT300-2PTC RESET FUSE 16V 3A RADIAL |
3,007 | - |
|
Datasheet | Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|
RHEF650PTC RESET FUSE 16V 6.5A RADIAL |
500 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|
0ZRM0110FF2BPTC RESET FUSE 120V 1.1A RADIAL |
318 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 1.1 A | 2.2 A | 8 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.524" Dia x 0.161" T (13.30mm x 4.10mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
