PTC Resettable Fuses

Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Type	Voltage - Max	Current - Hold (Ih) (Max)	Current - Trip (It)	Current - Max	Time to Trip	Resistance - Initial (Ri) (Min)	Resistance - Post Trip (R1) (Max)	Resistance - 25°C (Typ)	Operating Temperature	Grade	Qualification	Ratings	Mounting Type	Size / Dimension	Height - Seated (Max)	Thickness (Max)	Lead Spacing
RUEF400-1 PTC RESET FUSE 30V 4A RADIAL Littelfuse Inc.	362	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, RUEF	Bag	Active	Polymeric	30V	4 A	8 A	100 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.551" L x 0.118" W (14.00mm x 3.00mm)	0.760" (19.30mm)	-	0.199" (5.05mm)
0ZCN0150FF2C PTC RESET FUSE 15V 1.5A 2016 Bel Fuse Inc.	600	-	RFQ	Datasheet	2016 (5041 Metric), Concave	0ZCN	Tape & Reel (TR)	Active	Polymeric	15V	1.5 A	3 A	100 A	800 ms	70 mOhms	180 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.200" L x 0.160" W (5.08mm x 4.07mm)	-	0.026" (0.65mm)	-

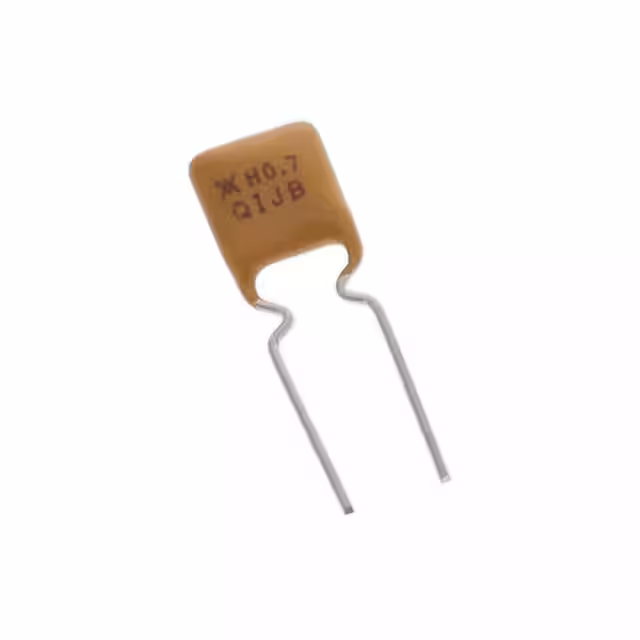

AHRF070 PTC RESET FUSE 30V 700MA RADIAL Littelfuse Inc.	472	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	30V	700 mA	1.4 A	40 A	3.2 s	230 mOhms	800 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.272" L x 0.130" W (6.90mm x 3.30mm)	0.425" (10.80mm)	-	0.199" (5.05mm)

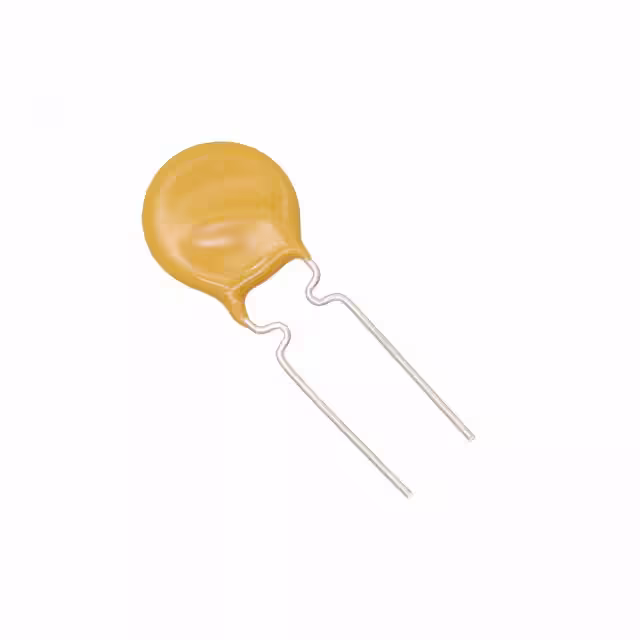

AHRF100 PTC RESET FUSE 30V 1A RADIAL Littelfuse Inc.	500	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AHRF	Bag	Active	Polymeric	30V	1 A	1.9 A	40 A	6.2 s	150 mOhms	430 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.382" Dia x 0.118" T (9.70mm x 3.00mm)	0.535" (13.60mm)	-	0.199" (5.05mm)
MINIASMDC260F/12-2 PTC RESET FUSE 12V 2.6A 1812 Littelfuse Inc.	347	-	RFQ	Datasheet	1812 (4532 Metric), Concave	PolySwitch®, miniASMD	Bulk	Active	Polymeric	12V	2.6 A	5 A	100 A	5 s	15 mOhms	47 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.181" L x 0.128" W (4.60mm x 3.24mm)	-	0.060" (1.52mm)	-
PICOSMDC075S-2 PTC RESET FUSE 6V 750MA 0805 Littelfuse Inc.	1,031	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PolySwitch®, miniSMD	Tape & Reel (TR)	Active	Polymeric	6V	750 mA	1.5 A	40 A	200 ms	100 mOhms	350 mOhms	-	-40°C ~ 85°C	-	-	-	Surface Mount	0.083" L x 0.055" W (2.10mm x 1.40mm)	-	0.037" (0.93mm)	-
MF-R090-2-9 PTC RESET FUSE 60V 900MA RADIAL Bourns Inc.	231	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-R	Tape & Reel (TR)	Active	Polymeric	60V	900 mA	1.8 A	40 A	7.2 s	140 mOhms	470 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.461" L x 0.122" W (11.70mm x 3.10mm)	0.657" (16.70mm)	-	0.201" (5.10mm)
AHS120-2 PTC RESET FUSE 16V 1.2A 2SMD Littelfuse Inc.	4,068	-	RFQ	Datasheet	2-SMD	PolySwitch®, AHS	Tape & Reel (TR)	Active	Polymeric	16V	1.2 A	2.3 A	50 A	2 s	150 mOhms	340 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.290" L x 0.202" W (7.36mm x 5.12mm)	-	0.118" (3.00mm)	-
AGRF1400 PTC RESET FUSE 16V 14A RADIAL Littelfuse Inc.	250	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, AGRF	Bag	Active	Polymeric	16V	14 A	27.3 A	100 A	9 s	2.2 mOhms	6.4 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.925" L x 0.138" W (23.50mm x 3.50mm)	1.130" (28.70mm)	-	0.400" (10.15mm)
PICOASMDC050S-2 PPTC-MINI-PSW Littelfuse Inc.	990	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PolySwitch® picoASMDC	Tape & Reel (TR)	Active	Polymeric	6V	500 mA	1 A	100 A	100 ms	150 mOhms	800 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.083" L x 0.055" W (2.10mm x 1.40mm)	-	0.037" (0.93mm)	-
PICOASMDC020S-2 PPTC-MINI-PSW Littelfuse Inc.	873	-	RFQ	Datasheet	0805 (2012 Metric), Concave	PolySwitch® picoASMDC	Tape & Reel (TR)	Active	Polymeric	9V	200 mA	470 mA	100 A	100 ms	750 mOhms	3.2 Ohms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Surface Mount	0.083" L x 0.055" W (2.10mm x 1.40mm)	-	0.027" (0.68mm)	-
0ZRB0700FF1A PTC RESET FUSE 30V 7A RADIAL Bel Fuse Inc.	563	-	RFQ	Datasheet	Radial, Disc	0ZRB	Box	Active	Polymeric	30V	7 A	14 A	40 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	Automotive	AEC-Q200	-	Through Hole	0.752" L x 0.118" W (19.10mm x 3.00mm)	1.051" (26.70mm)	-	0.402" (10.20mm)
TRF250-120T PTC RESET FUSE 60V 120MA RADIAL Littelfuse Inc.	499	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bag	Active	Polymeric	60V (250V Int)	120 mA	240 mA	3 A	1.2 s	7 Ohms	16 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.256" L x 0.181" W (6.50mm x 4.60mm)	0.433" (11.00mm)	-	0.197" (5.00mm)
MF-LS100 PTC RESET FUSE 24V 1A STRAP Bourns Inc.	560	-	RFQ	Datasheet	Strap	Multifuse®, MF-LS	Bulk	Active	Polymeric	24V	1 A	2.5 A	100 A	7 s	70 mOhms	260 mOhms	-	-40°C ~ 85°C	-	-	-	User Defined	0.866" L x 0.199" W (22.00mm x 5.05mm)	-	0.039" (1.00mm)	-
LVR016S-1 PTC RESET FUSE 240V 160MA RADIAL Littelfuse Inc.	490	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, LVR	Bag	Active	Polymeric	240V (265V Int)	160 mA	370 mA	2 A	15 s	2.5 Ohms	7.8 Ohms	-	-20°C ~ 85°C	-	-	-	Through Hole	0.390" Dia x 0.150" T (9.90mm x 3.80mm)	0.492" (12.50mm)	-	0.200" (5.08mm)
TRF250-183U PTC RESET FUSE 100V 183MA RADIAL Littelfuse Inc.	375	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bag	Active	Polymeric	100V (250V Int)	183 mA	685 mA	10 A	1.8 s	800 mOhms	3.4 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.256" Dia x 0.118" T (6.50mm x 3.00mm)	0.394" (10.00mm)	-	0.197" (5.00mm)
MF-RHT050-0 PTC RESET FUSE 30V 500MA RADIAL Bourns Inc.	2,214	-	RFQ	Datasheet	Radial, Disc	Multifuse®, MF-RHT	Bulk	Active	Polymeric	30V	500 mA	920 mA	40 A	2.5 s	480 mOhms	1.1 Ohms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Through Hole	0.291" Dia x 0.118" T (7.40mm x 3.00mm)	0.500" (12.70mm)	-	0.201" (5.10mm)
16R300GPR PTC RESET FUSE 16V 3A RADIAL Littelfuse Inc.	1,748	-	RFQ	Datasheet	Radial, Disc	POLY-FUSE®, 16R	Cut Tape (CT)	Active	Polymeric	16V	3 A	5.1 A	100 A	1 s	38 mOhms	97.5 mOhms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.280" L x 0.118" W (7.10mm x 3.00mm)	0.433" (11.00mm)	-	0.201" (5.10mm)
AHS160-2 PTC RESET FUSE 16V 1.6A 2SMD Littelfuse Inc.	807	-	RFQ	Datasheet	2-SMD	PolySwitch®, AHS	Tape & Reel (TR)	Active	Polymeric	16V	1.6 A	3.2 A	70 A	15 s	50 mOhms	150 mOhms	-	-40°C ~ 125°C	Automotive	AEC-Q200	-	Surface Mount	0.343" L x 0.250" W (8.70mm x 6.36mm)	-	0.118" (3.00mm)	-
TRF250-110U PTC RESET FUSE 60V 110MA RADIAL Littelfuse Inc.	500	-	RFQ	Datasheet	Radial, Disc	PolySwitch®, TRF250	Bag	Active	Polymeric	60V (250V Int)	110 mA	220 mA	3 A	1.2 s	5 Ohms	16 Ohms	-	-40°C ~ 85°C	-	-	-	Through Hole	0.209" Dia x 0.150" T (5.30mm x 3.80mm)	0.370" (9.40mm)	-	0.197" (5.00mm)

WINSUN SOURCING SUPPORT

Need PTC Resettable Fuses Sourcing Support?

Send the manufacturer, part number, quantity and target delivery requirement. Winsun (HK) Electronics can assist with availability checks, quotation support, shortage sourcing and hard-to-find or obsolete components.

Global component sourcing support BOM, shortage and EOL support

Send part number & quantity Request a Quote

Need sourcing assistance? Contact Sales

FREQUENTLY ASKED QUESTIONS

PTC Resettable Fuses FAQ

Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.

What should I check when selecting PTC Resettable Fuses components?

Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.

Can Winsun help source specific PTC Resettable Fuses part numbers?

Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.

Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?

Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.

How do I request a quote for PTC Resettable Fuses components?

Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
