PTC Resettable Fuses
Browse available PTC Resettable Fuses part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUEF135SPTC RESET FUSE 30V 1.35A RADIAL |
144 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 1.35 A | 2.7 A | 100 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
RUEF185SPTC RESET FUSE 30V 1.85A RADIAL |
477 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 1.85 A | 3.7 A | 100 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.199" (5.05mm) |
|
RGEF800-1PTC RESET FUSE 16V 8A RADIAL |
461 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
|
AGRF900PTC RESET FUSE 16V 9A RADIAL |
217 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 6 s | 4.1 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.906" (23.00mm) | - | 0.199" (5.05mm) |
|
RGEF900-1PTC RESET FUSE 16V 9A RADIAL |
122 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.532" L x 0.100" W (13.50mm x 2.50mm) | 0.854" (21.70mm) | - | 0.199" (5.05mm) |
|
PTR016V0135-BKPTC RESET FUSE 16V 1.35A RADIAL |
569 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.122" W (8.90mm x 3.10mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
|
PTR016V0185-BKPTC RESET FUSE 16V 1.85A RADIAL |
324 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.122" W (10.20mm x 3.10mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
|
PTR016V0250-BKPTC RESET FUSE 16V 2.5A RADIAL |
209 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.122" W (11.40mm x 3.10mm) | 0.720" (18.30mm) | - | 0.197" (5.00mm) |
|
PFNF.200.2PTC RESET FUSE 6V 2A 1206 |
537 | - |
|
Datasheet | 1206 (3216 Metric), Concave | PFNF | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - |
|
0ZRB0300FF2BPTC RESET FUSE 30V 3A RADIAL |
885 | - |
|
Datasheet | Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 3 A | 6 A | 40 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.681" (17.30mm) | - | 0.201" (5.10mm) |
|
0ZRG0090FF2EPTC RESET FUSE 30V 900MA RADIAL |
540 | - |
|
Datasheet | Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
0ZRE0005FF2CPTC RESET FUSE 240V 50MA RADIAL |
462 | - |
|
Datasheet | Radial, Disc | 0ZRE | Tape & Reel (TR) | Active | Polymeric | 240V | 50 mA | 120 mA | 1.5 A | 15 s | 18.5 Ohms | 65 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.327" L x 0.150" W (8.30mm x 3.80mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
0ZRP0075FF2EPTC RESET FUSE 60V 750MA RADIAL |
165 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 1.5 s | 200 mOhms | 640 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.310" L x 0.140" W (7.87mm x 3.56mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|
AHRF750PTC RESET FUSE 16V 7.5A RADIAL |
500 | - |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 7.5 A | 14.8 A | 100 A | 8 s | 7.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
|
RXEF090SPTC RESET FUSE 72V 900MA RADIAL |
937 | - |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" Dia x 0.118" T (11.20mm x 3.00mm) | 0.622" (15.80mm) | - | 0.199" (5.05mm) |
|
PTSA181216V260PTC RESET FUSE 2.6A 16V 1812 |
708 | - |
|
Datasheet | 1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 16V | 2.6 A | 5.2 A | 40 A | 5 s | 15 mOhms | 70 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.079" (2.00mm) | - |
|
|
0ZRE0008FF2CPTC RESET FUSE 240V 80MA RADIAL |
632 | - |
|
Datasheet | Radial, Disc | 0ZRE | Tape & Reel (TR) | Active | Polymeric | 240V | 80 mA | 190 mA | 1.5 A | 15 s | 7.4 Ohms | 26 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.327" L x 0.150" W (8.30mm x 3.80mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
|
PTR016V0700-BKPTC RESET FUSE 16V 7A RADIAL |
294 | - |
|
Datasheet | Radial, Disc | PTR016V | Bulk | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 6 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.122" W (11.20mm x 3.10mm) | 0.776" (19.70mm) | - | 0.197" (5.00mm) |
|
0ZRR0135FF2BPTC RESET FUSE 60V 1.35A RADIAL |
4,460 | - |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.571" Dia x 0.122" T (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|

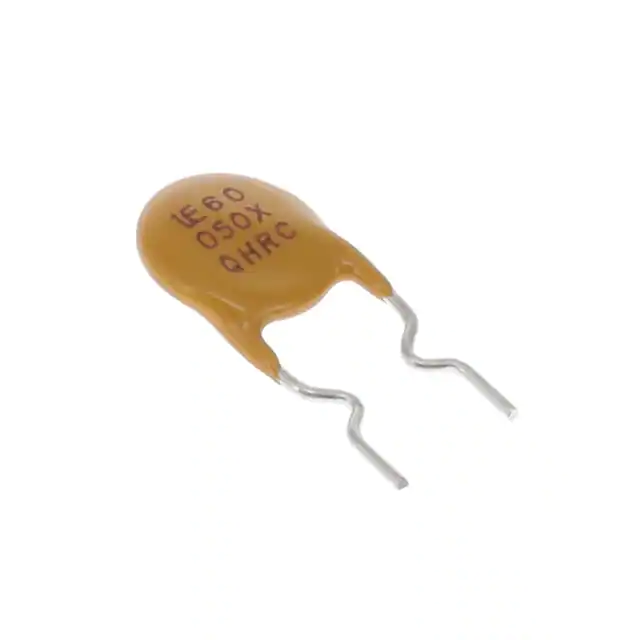

60R050XUL25PTC 60V POLYFUSE RAD LEADS 2.5CM |
335 | - |
|
Datasheet | Radial, Disc | POLY-FUSE® 60R | Bulk | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
Common questions about selecting, comparing and sourcing PTC Resettable Fuses components through Winsun (HK) Electronics.
What should I check when selecting PTC Resettable Fuses components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific PTC Resettable Fuses part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find PTC Resettable Fuses parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for PTC Resettable Fuses components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
