Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

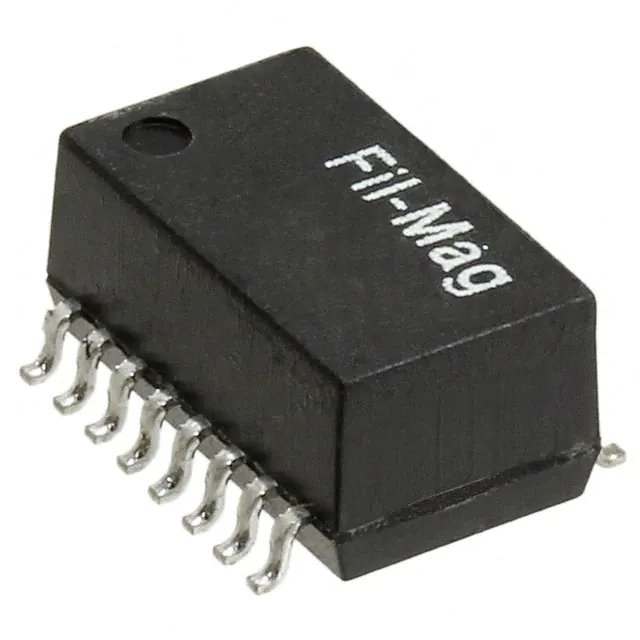

23Z467SM-TPULSE XFMR 1CT:2CT TX 1CT:1CT RX |
2,665 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
H5019FNLTPULSE XFMR 1CT:1 TX 1CT:1 RX |
1,079 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1 Transmitter, 1CT:1 Receiver | Surface Mount | 0.780" L x 0.750" W (19.81mm x 19.05mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
|
EX2001TPULSE XFMR |
4,404 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | - | - | - | Surface Mount | 0.930" L x 0.390" W (23.62mm x 9.91mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
T1231QNLTXFMR OCT T1 1:2.4 1:1 OH |
1,782 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HM5149NLTMDL,SIN,1GD,1:1,SMT |
3,892 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 360µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.410" W (17.78mm x 10.41mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
T1231QNLXFMR OCT T1 1:2.4 1:1 OH |
2,359 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX4019NLTMDL SIN 2.5GPP 1:1 3KV SMT TR |
4,594 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
QGS6015RSMDL 5G DUAL PORT 4PAIR POE 60W |
3,972 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
|
QGS2015RSMDL 5G DUAL PORT N/A |
1,080 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 1.291" L x 0.543" W (32.80mm x 13.80mm) | 0.287" (7.30mm) | 0°C ~ 70°C | - | - |
|
HX6096FNLTPULSE XFMR 1CT:1CT TX/RX |
3,807 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
