Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1062NLMODULE XFRMR QUAD ETHR LAN40SOIC |
2,991 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
AGS9015RMMDL 2.5G 2 PORT 4PAIR POE 90W |
1,510 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|

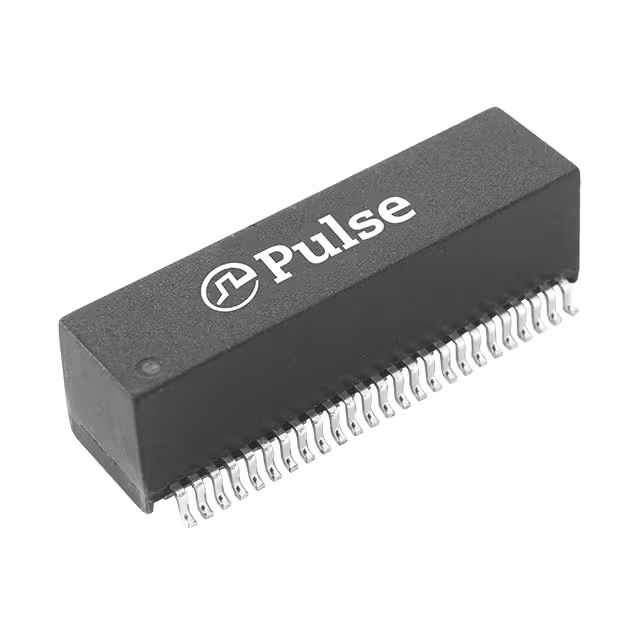

HU4102NLTMDL,SIN, DUAL 2.5G,1:1,SMT |
3,883 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 180µH | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | - | - | - |
|
|
HX1222NLMDL SIN 100D 1:1 4KV SMT T |
3,784 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX1223NLMDL SIN 100D 1:1 4KV SMT TU |
2,270 | - |
|
Datasheet | - | Tube | Active | - | 350µH | - | 1:1 | Surface Mount | 0.570" L x 0.537" W (14.48mm x 13.64mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H1270NLTXFRMR MODULE 2PORT 1:1 10/100 |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.500" W (13.08mm x 12.70mm) | 0.145" (3.69mm) | 0°C ~ 70°C | - | - |
|

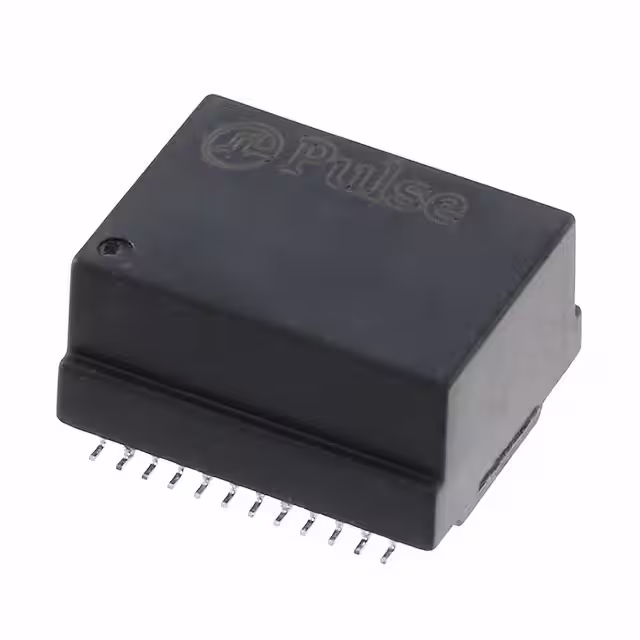

HX5224CNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,191 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.728" L x 0.604" W (18.50mm x 15.34mm) | 0.385" (9.77mm) | -40°C ~ 85°C | - | - |
|
|
HU4102NLMODULE MAGNETIC DUAL 2.5GB SMT |
1,954 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | Surface Mount | 1.100" L x 0.430" W (27.94mm x 10.92mm) | 0.328" (8.33mm) | 0°C ~ 70°C | - | - |
|
|
HM6098NLTMDL SIN 1GPP 1:1 SMT TR |
3,549 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 120µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 105°C | - | - |
|
|
H5089NLTTRANSFORMER MODULE GIGABIT 2PORT |
4,025 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
