Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QGU4629RADIP 5G 4 PORT POE 60W |
1,301 | - |
|
Datasheet | - | Tube | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 180µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | 0°C ~ 70°C | - | - |
|
H5012NLTMODULE DL GIGABIT ETHER LAN 48P |
2,171 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
TX3051TPULSE XFMR 1:1 60UH |
2,238 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T3/E3 (Twelve) | 60µH | - | 1:1 | Surface Mount | 1.120" L x 0.480" W (28.45mm x 12.19mm) | 0.280" (7.11mm) | -40°C ~ 85°C | - | - |
|

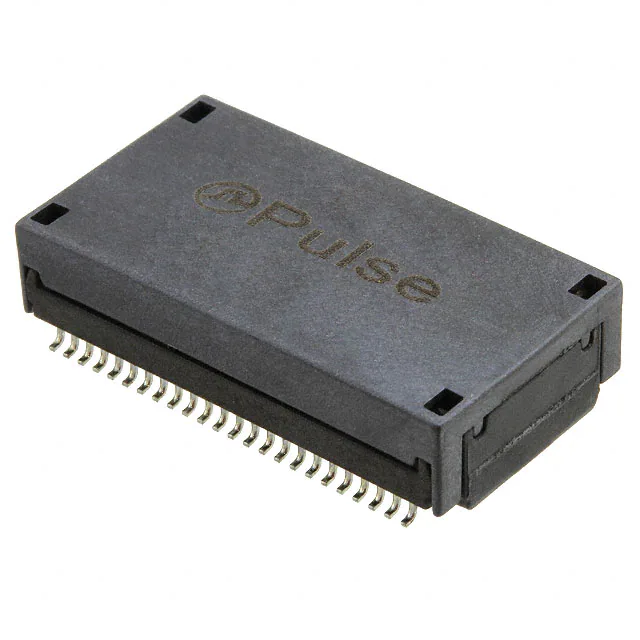

H5012FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
3,818 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
|
T4PH04RVMDL 10G 4 PORT POE 90W |
1,450 | - |
|
Datasheet | - | Tube | Active | LAN 10 Base-T | 120µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 105°C | - | - |
|
|
T4PH04RTMDL 10G 4 PORT POE 90W |
4,197 | - |
|
Datasheet | - | Tube | Active | LAN 10 Base-T | 100µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 90°C | - | - |
|
|
HXB7603NLMOD QUAD 10GD EXT. HF 96P |
1,691 | - |
|
Datasheet | HXB | Tube | Discontinued at Digi-Key | LAN 1/5/10G Base-T | 350µH | - | 1CT:1CT | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 90°C | - | - |
|
|
HXB7601NLMOD QUAD 10GPP EXT. HF 96P |
4,248 | - |
|
Datasheet | HXB | Tube | Discontinued at Digi-Key | LAN 1/5/10G Base-T, Power over Ethernet (PoE) | 120µH | - | 1CT:1CT | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 90°C | - | - |
|
|
HXB7602NLMOD QUAD 10GPP EXT. HF 96P |
1,650 | - |
|
Datasheet | HXB | Tube | Discontinued at Digi-Key | LAN 1/5/10G Base-T, Power over Ethernet (PoE) | 100µH | - | 1CT:1CT | Through Hole | 1.319" L x 1.142" W (33.50mm x 29.00mm) | 0.661" (16.80mm) | -40°C ~ 105°C | - | - |
|
|
TX9031NLTTRANSFORMER 1500VRMS 1CT:2.4 SMD |
1,697 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH | - | 1CT:2.4 Transmitter, 1:1CT Receiver | Surface Mount | 1.255" L x 0.712" W (31.88mm x 18.08mm) | 0.315" (8.00mm) | - | - | - |
