Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.233ANLTGDT, FUNCTIONAL, EP7, SMT |
624 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|

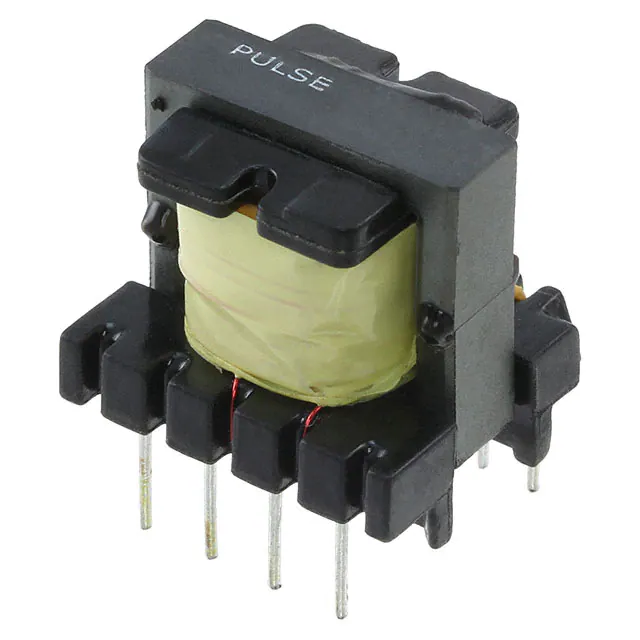

P5009NLPULSE XFMR 1:0.1:0.1 |
2,400 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.1:0.1 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9385.027NLTXFMR PUSH-PULL SIDE CAR 2:7 SMT |
139 | - |
|
Datasheet | PH9385 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | 0.295" (7.50mm) | - | - | - |
|
P0926NLPULSE XFMR 1:1:1 300UH |
1,380 | - |
|
Datasheet | - | Tray | Active | - | 300µH | 23.8VµS | 1:1:1 | Surface Mount | 0.260" L x 0.315" W (6.60mm x 8.00mm) | 0.210" (5.33mm) | -40°C ~ 130°C | - | - |
|
PM2190.011NLTXFMR PWR .750 UH EP7 SM NPB |
739 | - |
|
Datasheet | PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 1CT:1CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
PM2190.012NLTXFMR PWR .450 UH EP7 SM NPB |
848 | - |
|
Datasheet | PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 450µH | 52VµS | 1CT:2CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
HX1260FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,515 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
PA1135NLTXFRMR 12V 7W 264UH POE EP10 SMD |
200 | - |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 264.1µH | - | 1:0.286:0.204 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
PA1276NLTXFRMR 12V 13.5W 77.4UH POE EP13 |
108 | - |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.682:0.682 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 130°C | - | - |
|
BX4550NLXFMR SGL G.FAST TOR 1CT:1CT |
2,255 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - |
