Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3493NLPULSE XFMR 1.25:1 656UH |
1,380 | - |
|
Datasheet | - | Tube | Active | - | 656µH | 23VµS | 1.25:1 | Surface Mount | 0.430" L x 0.380" W (10.92mm x 9.65mm) | 0.105" (2.67mm) | -40°C ~ 130°C | - | - |
|
PA0264NLTPULSE XFMR 1:1:1 1.14MH |
4,944 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.14mH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
PA0185NLPULSE XFMR 1:1 980UH |
1,158 | - |
|

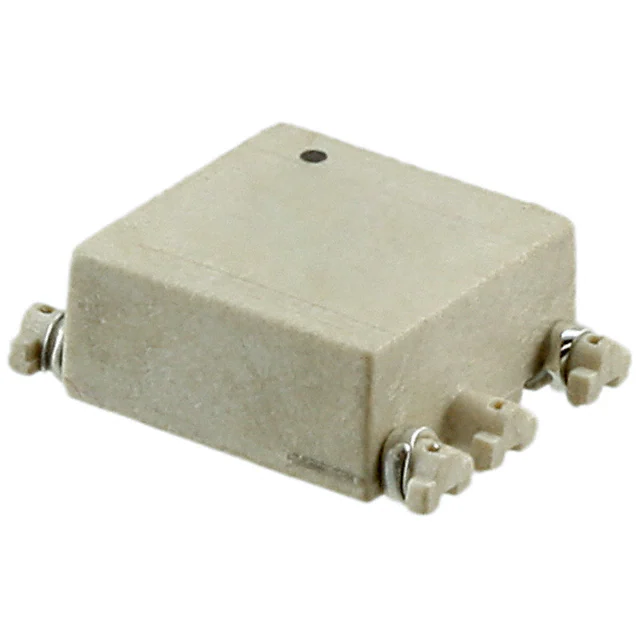

Datasheet | - | Tube | Active | - | 980µH | 17.2VµS | 1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|
|
PA0185NLTPULSE XFMR 1:1 980UH |
1,243 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 980µH | 17.2VµS | 1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|
PE-65723NLTRANSFORMER 2000VRMS 75UH SMD |
551 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 75µH | 1.8VµS | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
P0544NLPULSE XFMR 1:1:1 3.3MH |
1,452 | - |
|
Datasheet | - | Tube | Active | - | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA0184NLPULSE XFMR 1:1 1.2MH |
944 | - |
|
Datasheet | - | Tube | Active | - | 1.2mH | 27.2VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PM2185.011NLTXFMR GATE-DR 1CT:1CT SM NPB |
309 | - |
|
Datasheet | PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 538µH | 24VµS | 1CT:1CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
PH9572.111ANLTGDT, FUNCTIONAL, EP7, SMT |
4,324 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 1:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
PA2467NLTPULSE XFMR 37UH |
1,170 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
