Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2001NLPULSE XFMR 1:1 403UH |
1,916 | - |
|
Datasheet | - | Tube | Active | - | 403µH | 12VµS | 1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.098" (2.49mm) | -40°C ~ 130°C | - | - |
|
PA3342NLPULSE XFMR 90UH |
540 | - |
|
Datasheet | - | Tray | Active | - | 90µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA2467NLPULSE XFMR 37UH |
37,761 | - |
|
Datasheet | - | Tray | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|

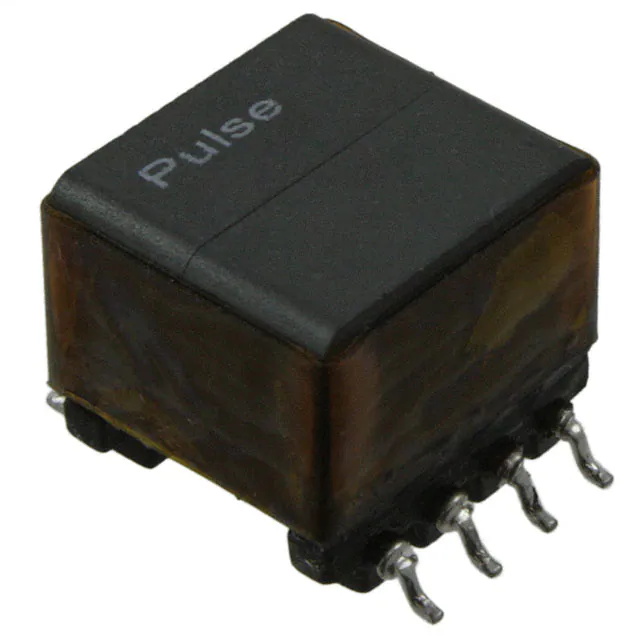

PA1277NLTXFRMR 3.3V 10W 20.4UH POE EP10 |
1,485 | - |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 20.4µH | - | 1:0.222:0.555 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
PH9384.043NLTXFMR GATE-DR 4CT:3CT SM NPB |
814 | - |
|
Datasheet | PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PM2180.034NLTXFMR GATE-DR 3CT:4CT SM NPB |
715 | - |
|
Datasheet | PM2180.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3CT:4CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PH9185.012NLTRANSFORMER 450UH 1:2 SMD |
4,454 | - |
|
Datasheet | PH9185 | Tray | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

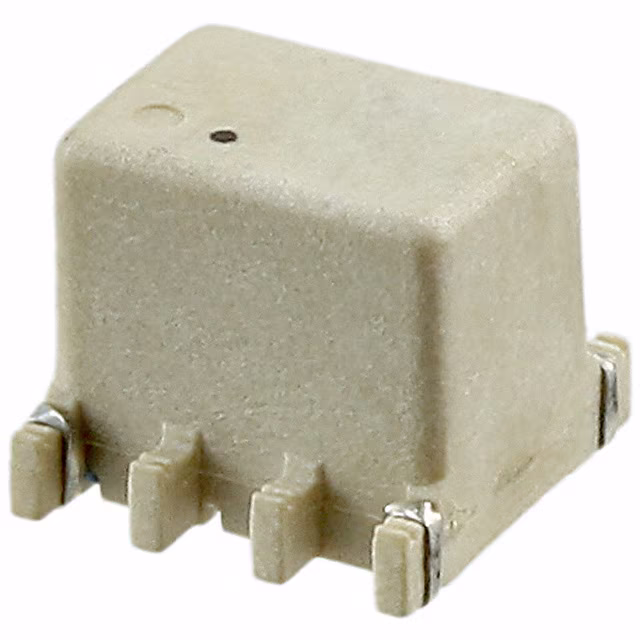

PA2007NLTPULSE XFMR 1:1 1.49MH |
1,081 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1.49mH | 53VµS | 1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
PA0173NLPULSE XFMR 1:1:1 980UH |
1,045 | - |
|
Datasheet | - | Tube | Active | - | 980µH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
|
PH9572.111NLTGDT, FUNCTIONAL, EP7, SMT |
1,081 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 1:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
