Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

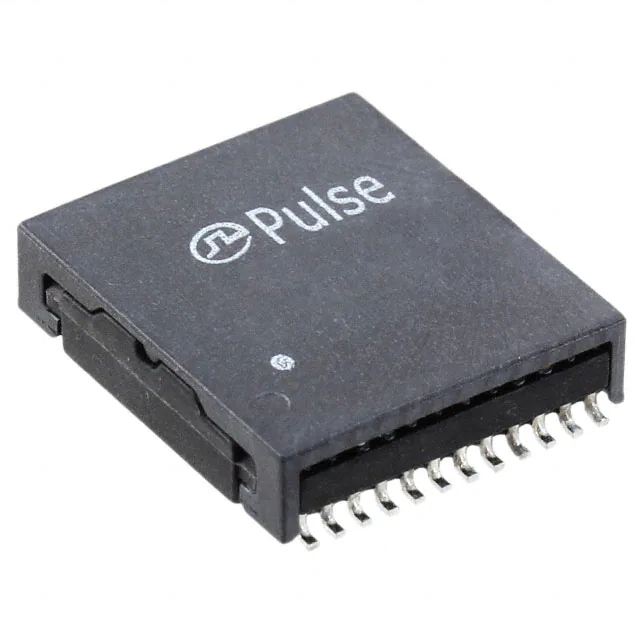

H1270FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,292 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.58mm) | 0.145" (3.68mm) | 0°C ~ 70°C | - | - |
|

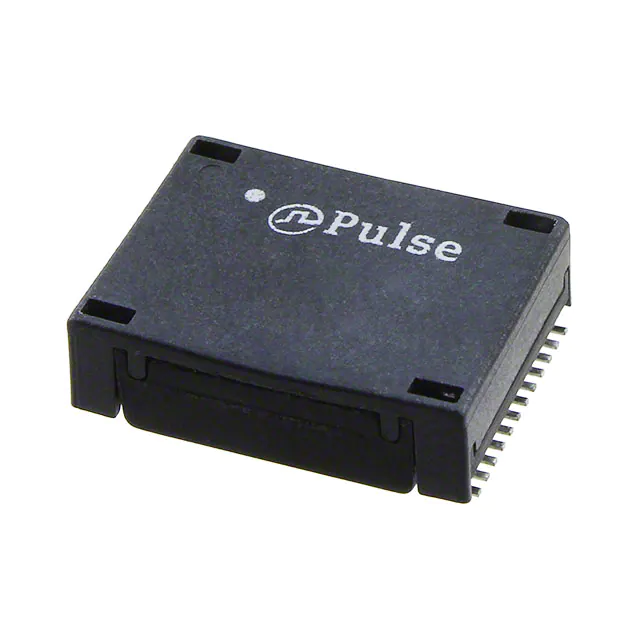

H5008FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,265 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|
TX1471NLXFRMR OCTAL 1:1 1.2MH SMD |
575 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
H6101NLTPULSE XFMR 1CT:1CT TX/RX |
854 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
TX1472NLTXFRMR OCTAL 1:2.4/1:1 1.2MH SMD |
458 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2.4, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
PE-63388NLXFRMR MOSFET GATE DRIV 1:1.5:1.5 |
419 | - |
|
Datasheet | - | Tray | Active | Gate Drive | 1.5mH | - | 1:1.5:1.5 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|

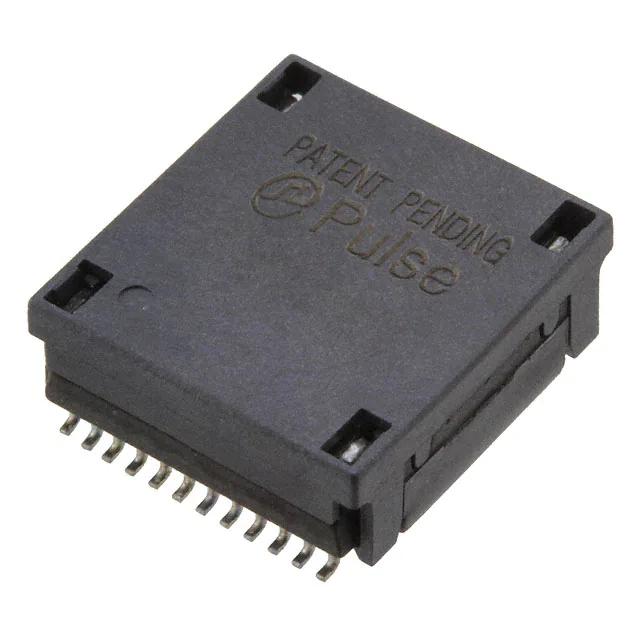

H7019FNLTTRANSFORMER MODULE 10GBASE-T SMD |
729 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
H7018FNLTMODULE 10GBASE-T 1.5KVRMS SMD |
648 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
T1219NLXFRMR 1CT:2.4CT/1CT:1CT 1.20MH |
223 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.4CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HDX8005NLMDL,SIN, HDBASET, 100W, SMT |
195 | - |
|
Datasheet | - | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
