Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM1238NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, |
3,132 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 300µH | - | 1:1 | Surface Mount | 0.330" L x 0.303" W (8.38mm x 7.69mm) | 0.167" (4.25mm) | -40°C ~ 150°C | - | - |
|
E4001NLXFRMR LAN ISOL 10BASE-T 1:2 SMD |
720 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 112µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
23Z467SMNLTTRANSFORMER 10BASE-T LAN 16SOIC |
1,708 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|

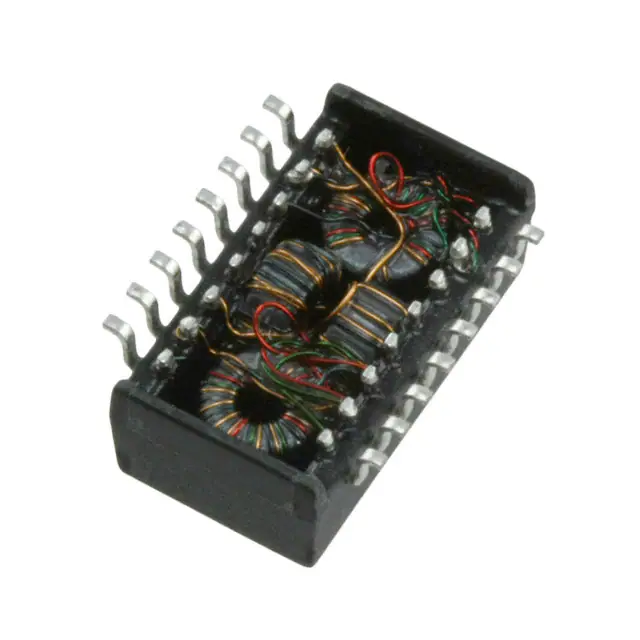

E2023NLTXFRMR LAN ISOL 10BASET 1:2.5 SMD |
675 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

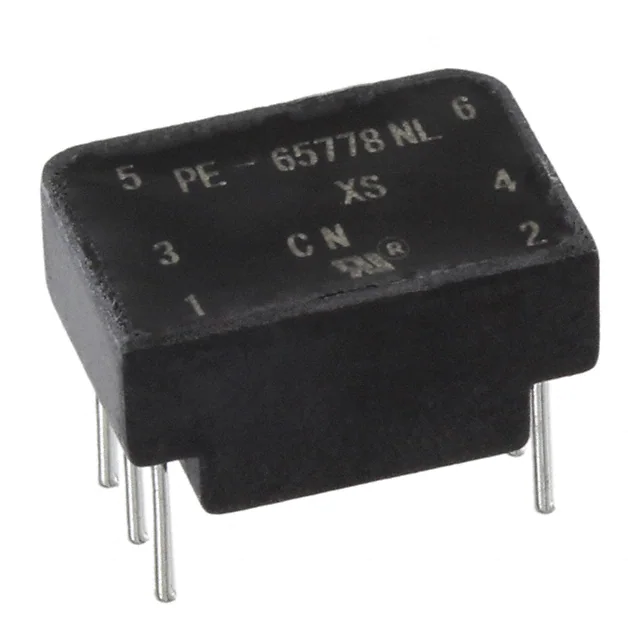

PE-65778NLXFRMR 1CT:1CT 1.20MH T/H |
194 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
PE-64931NLXFRMR T1/CEPT/ISDN-PRI 1:1:1 |
446 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1:1:1, 1:2CS | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
TX1089NLXFRMR 1CT:1CT/1CT:1CT 1.2/1.2MH |
133 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:1CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
H1302NLXFRMR MAGNETIC 1PORT 1:1 10/100 |
560 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.241" (6.12mm) | 0°C ~ 70°C | - | - |
|
PA1736NLPULSE XFMR 20.5UH |
426 | - |
|
Datasheet | - | Tray | Active | - | 20.5µH | - | - | Surface Mount | 0.860" L x 1.150" W (21.84mm x 29.21mm) | 0.450" (11.43mm) | -40°C ~ 125°C | - | - |
|
T1144NLTRANSFORMER TELECOM DUAL T1/E1 |
603 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1mH, 1mH | - | 1CT:1CT, 1CT:2.4CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | - | - | - |
