Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.233NLTGDT, FUNCTIONAL, EP7, SMT |
14,367 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1.8mH | 56.5VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
PH9572.211NLTGDT, FUNCTIONAL, EP7, SMT |
13,154 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 4mH | 84.7VµS | 2:1:1 | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
PA3493NLTPULSE XFMR 1.25:1 656UH |
3,586 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 656µH | 23VµS | 1.25:1 | Surface Mount | 0.430" L x 0.380" W (10.92mm x 9.65mm) | 0.105" (2.67mm) | -40°C ~ 130°C | - | - |
|
PA2649NLTPULSE XFMR 100.5UH |
1,360 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 100.5µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PE-65745NLTXFRMR LAN ISOL 1CT:1.414CT 10B-T |
2,759 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
PE-65728NLTRANSFMR AUI ETHERNET LAN 16SOIC |
483 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
H1260NLTXFRMR MODULE 1PORT 1:1 10/100 |
1,430 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|

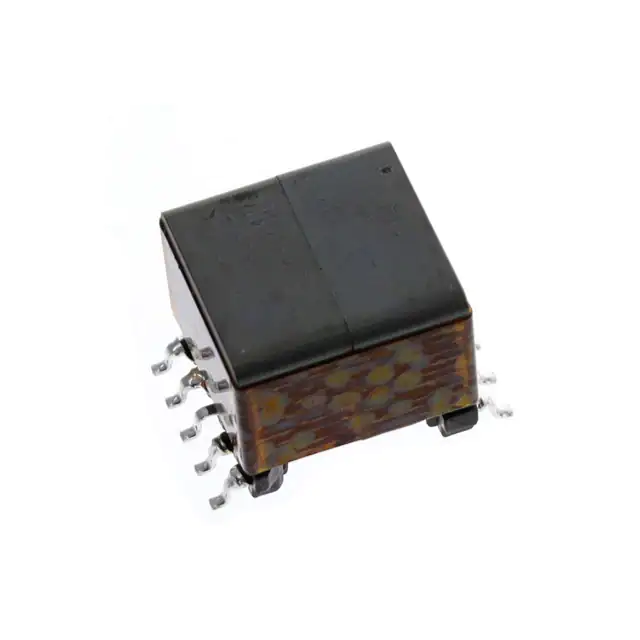

PA2649NLTRANSFMR 33-57VIN 12VOUT 2.5ASMD |
3,852 | - |
|
Datasheet | - | Tray | Active | - | 100.5µH | - | - | Surface Mount | 0.690" L x 0.529" W (17.53mm x 13.44mm) | 12.45mm | -40°C ~ 130°C | - | - |
|
|
HM1238NLXFMR CMC MODULE AECQ BATT MNGT |
667 | - |
|
Datasheet | - | Tube | Active | - | 300µH | - | 1:1 | Surface Mount | 0.413" L x 0.330" W (10.50mm x 8.38mm) | 0.167" (4.25mm) | - | - | - |
|
|
PH9572.122ANLTGDT, FUNCTIONAL, EP7, SMT |
11,803 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
