Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

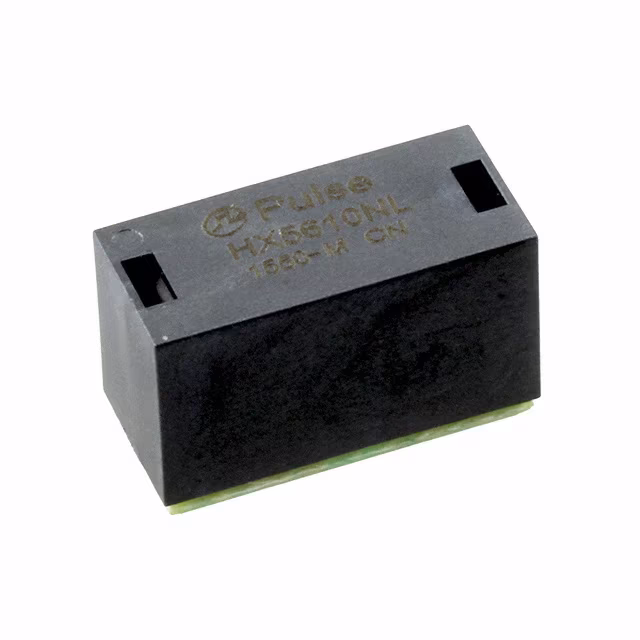

HX5610NLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
559 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|

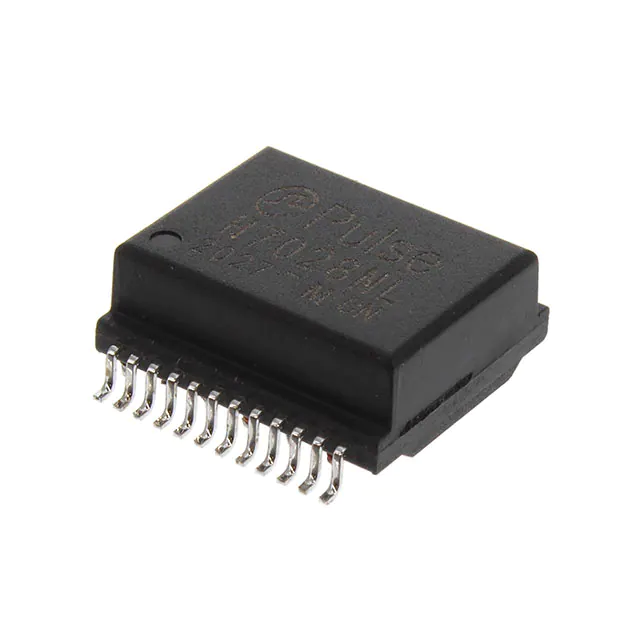

H7028NL10GBASE-T DISCRETE 4CH BCM PHY |
131 | - |
|
Datasheet | - | Bulk | Active | LAN 10G Base-T | 120µH | - | 1:1 | - | 0.537" L x 0.480" W (13.64mm x 12.19mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PE-63385NLPULSE XFMR 1:1 1.5MH |
914 | - |
|
Datasheet | - | Tray | Active | - | 1.5mH | 200VµS | 1:1 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|
HX6096NLPULSE XFMR 1CT:1CT TX/RX |
2,461 | - |
|
Datasheet | - | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

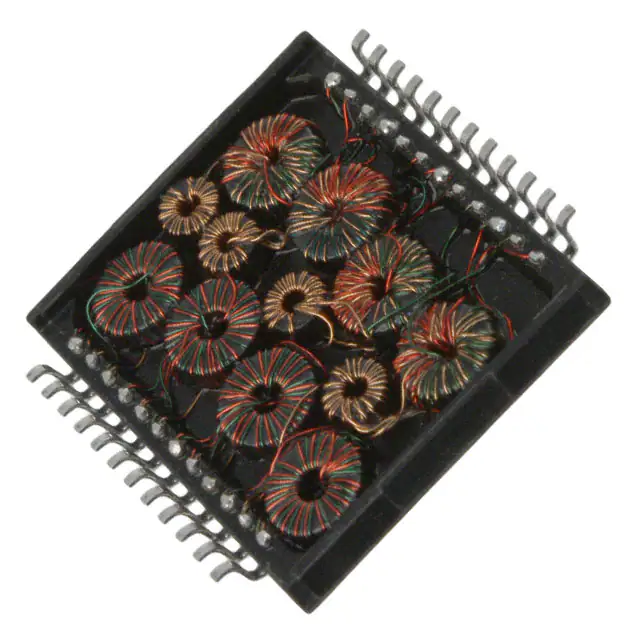

H5019NLTTRANSFORMER MODULE GIGABIT 1PORT |
4,604 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.780" L x 0.655" W (19.81mm x 16.64mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
HX6062NLPULSE XFMR 1CT:1CT TX/RX |
123 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 325µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
HX1148NLMODULE TRANSFMR SNGL LAN 16P SMD |
523 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1 Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

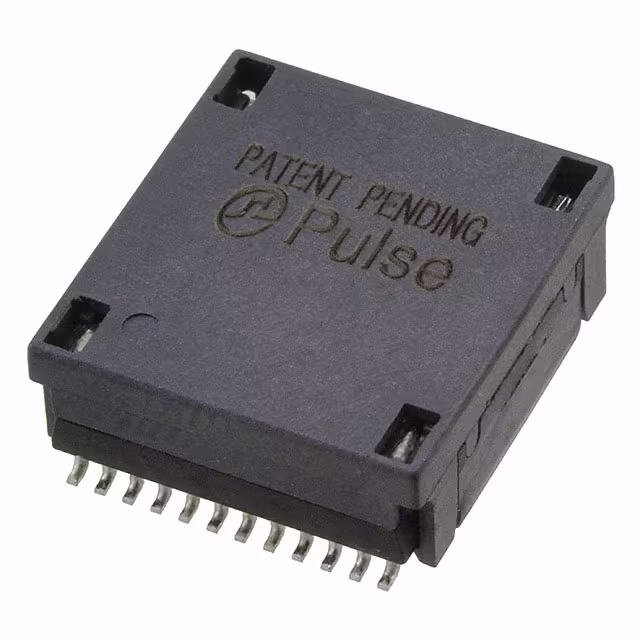

H7008FNLTTRANSFORMER MODULE 10GBASE-T |
3,021 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591" L x 0.539" W (15.00mm x 13.70mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|

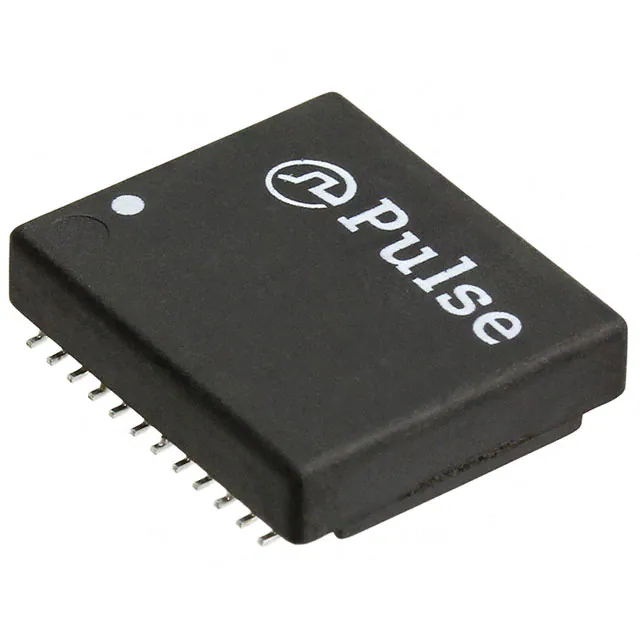

H5015FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,782 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.695" L x 0.596" W (17.66mm x 15.14mm) | 0.180" (4.57mm) | 0°C ~ 70°C | - | - |
|
HD8005FNLTTRANSFORMER HDBASE-T 57W |
900 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | HDBase-T | 100µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
Pulse Transformers FAQ
Common questions about filtering, comparing and sourcing Pulse Transformers components.
How can I narrow the Pulse Transformers selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Pulse Transformers part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
