Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H0013NLMODULE MAGNETIC LAN 1:1 10/100 |
574 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.078" (1.98mm) | 0°C ~ 70°C | - | - |
|
H0068ANLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
2,134 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.347" W (12.70mm x 8.81mm) | 0.082" (2.08mm) | 0°C ~ 70°C | - | - |
|

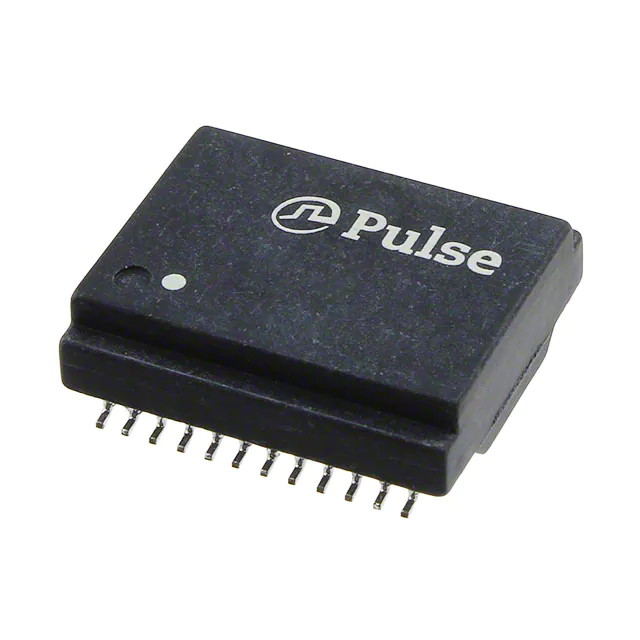

H6062FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,046 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

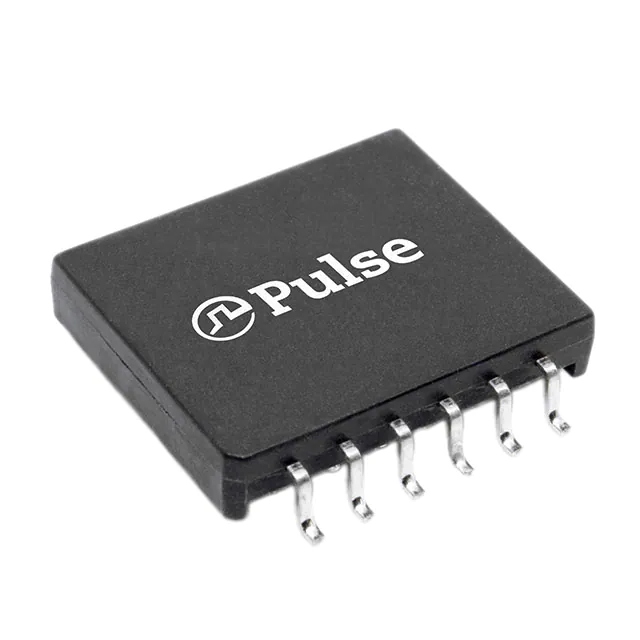

HM2112ZNLTXFMR CMC MODULE AECQ BATT MNGT |
1,063 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579" L x 0.478" W (14.70mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|

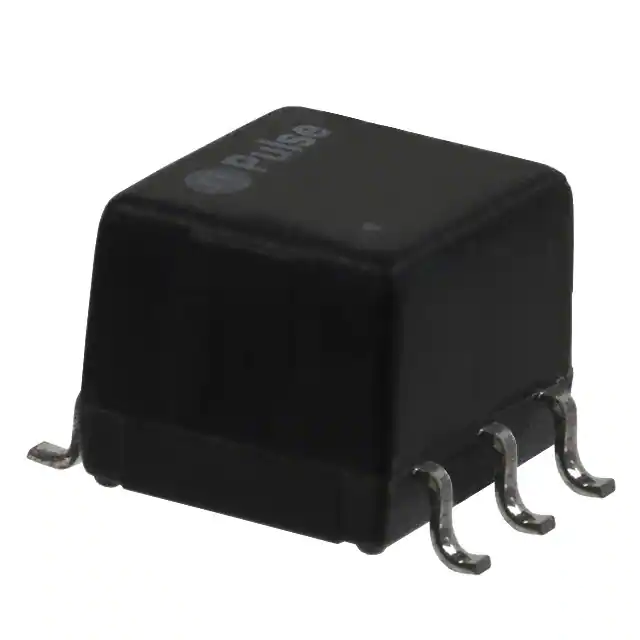

T3001NLTXFRMR T3/DS3/E3/STS-1 1:1 SMD |
2,214 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T3/E3 (Single) | 100µH | - | 1:1 | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
PE-65968NLTXFRMR T3/DS3/E3/STS-1 1:2CT SMD |
1,003 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T3/E3 (Single) | 19µH | - | 1:2CT | Surface Mount | 0.300" L x 0.275" W (7.62mm x 7.00mm) | 0.245" (6.23mm) | 0°C ~ 70°C | - | - |
|

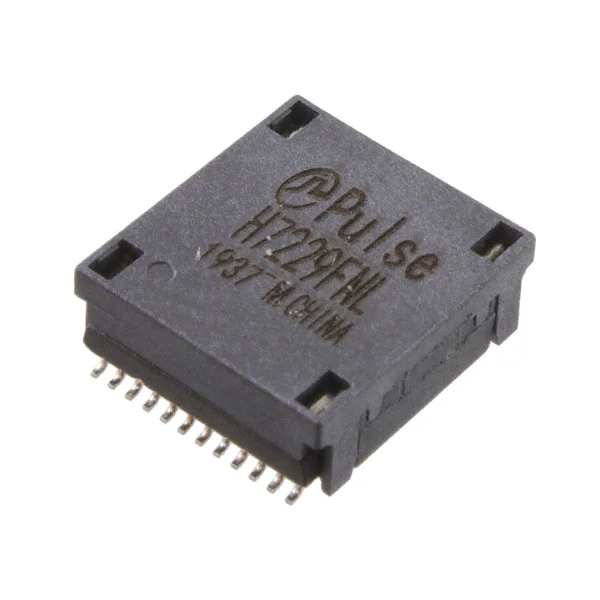

H7229FNLTRANSFORMER MODULE 10GBASE-T |
2,736 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.545" L x 0.591" W (13.84mm x 15.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
HM2112ZNLXFMR-CMC DUAL 4.3KV 1CT:1C |
161 | - |
|
Datasheet | - | Tube | Active | - | 150µH, 450µH | - | 1:1 | Surface Mount | 0.579" L x 0.478" W (14.70mm x 12.15mm) | 0.136" (3.45mm) | -40°C ~ 125°C | - | - |
|

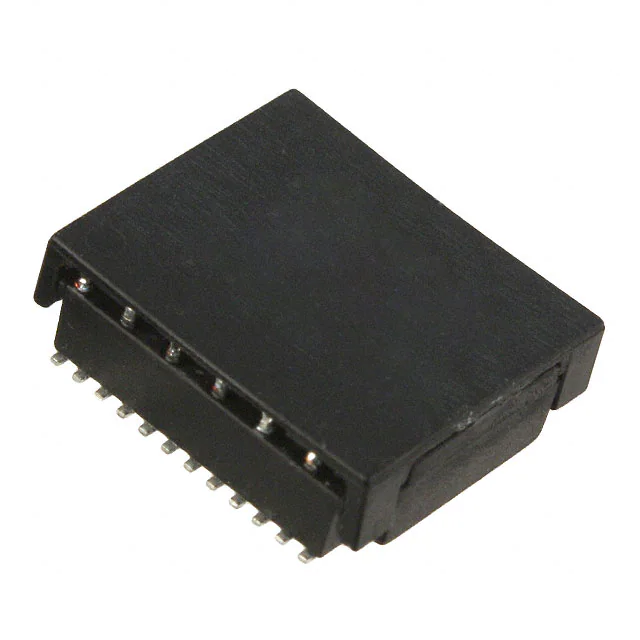

H5077NLMODULE MINI-MAG 1PORT 1000BASE-T |
1,187 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.550" L x 0.495" W (13.97mm x 12.57mm) | 0.190" (4.82mm) | 0°C ~ 70°C | - | - |
|
H6062NLTRANSFORMER MODULE GIGABIT POE |
892 | - |
|
Datasheet | Star Magnetics™ | Tube | Active | - | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
