Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T1142NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2.4 |
362 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Quad) | 1mH, 1mH | - | 1:2.4 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
HX1332CNLXFRMR MODULE 100B-TX 16 PIN SMT |
208 | - |
|
Datasheet | HX1332CNL | Tube | Active | LAN 100 Base-TX | 350µH | - | 1:1 | Surface Mount | 1.000" L x 0.677" W (25.40mm x 17.20mm) | 0.406" (10.30mm) | -40°C ~ 85°C | - | - |
|
HD8006FNLTRANSFORMER HDBASET 140W |
260 | - |
|
Datasheet | - | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.625" W (17.73mm x 15.88mm) | 0.320" (8.12mm) | 0°C ~ 70°C | - | - |
|
H5079NLTMODULE MINI-MAG 1PORT 1000BASE-T |
2,582 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.785" L x 0.551" W (19.94mm x 14.00mm) | 0.100" (2.54mm) | 0°C ~ 70°C | - | - |
|
H5004NLMODULE SINGLE GIGABIT LAN 24SOIC |
1,094 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | - | - | 1CT:1CT | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
HM1331NLMDL,SIN,100D,1:1,SMT |
245 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.600" W (12.70mm x 15.24mm) | 0.300" (7.62mm) | -40°C ~ 85°C | - | - |
|
H1664NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
143 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.110" L x 0.480" W (28.19mm x 12.19mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
HX5G1010NLTRANSF MODULE 5G 4 CH 60W POE |
290 | - |
|
Datasheet | - | Tube | Active | General Purpose | 120µH | - | 1CT:1CT | Surface Mount | 0.650" L x 0.360" W (16.51mm x 9.14mm) | 0.082" (2.08mm) | - | - | - |
|
HX5026NLXFRMR MODULE 1000B-T 1 CH SMT |
503 | - |
|
Datasheet | - | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.19mm) | 0.260" (6.60mm) | - | - | - |
|

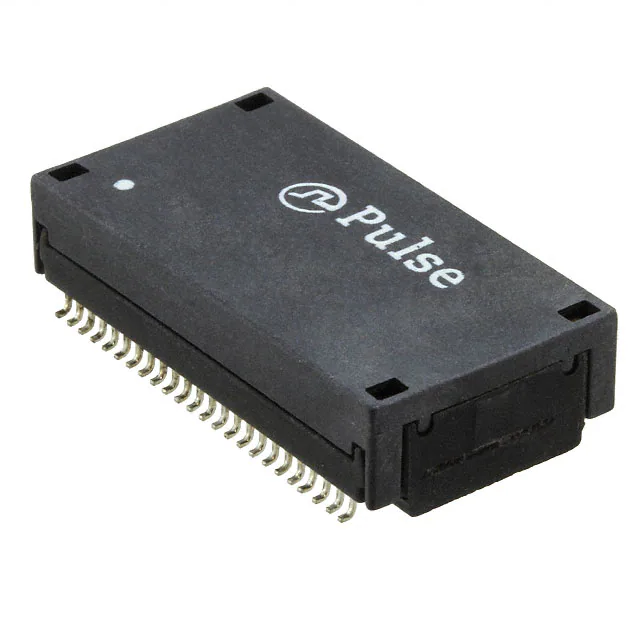

HX5014FNLPULSE XFMR 1 CT:1CT TX/RX 350UH |
135 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
