Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H6062FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
408 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.600" W (17.50mm x 15.24mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

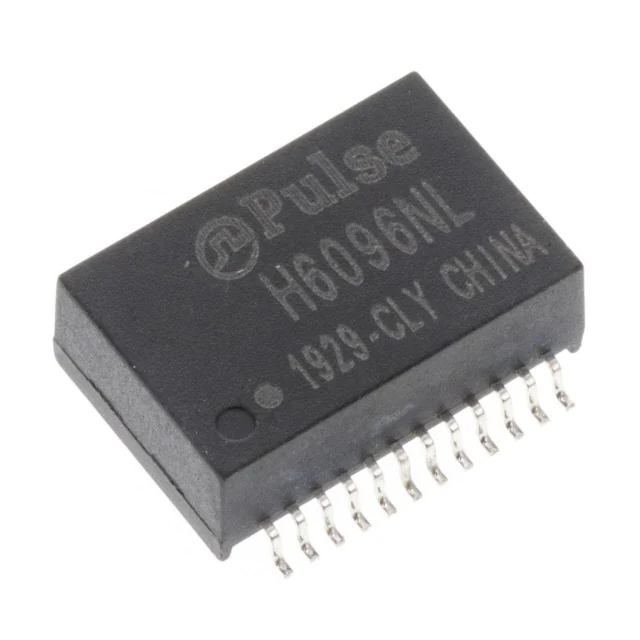

H6096NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,100 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | 0°C ~ 70°C | - | - |
|
PE-68515LNLTXFRMR MODULE 1PORT 1:1 10/100B-T |
6,678 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
|
PE-68515LNLXFRMR MODULE 1PORT 1:1 10/100B-T |
532 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.000" L x 0.350" W (25.40mm x 8.89mm) | 0.370" (9.40mm) | 0°C ~ 70°C | - | - |
|
H5062NLXFRMR MODULE GIGABIT 1PORT 1:1 |
304 | - |
|
Datasheet | Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | 0°C ~ 70°C | - | - |
|
PE-65535NLXFRMR 64KBPS 1:2CT 20MH T/H |
817 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 20mH | - | 1:2CT | Through Hole | 0.559" L x 0.559" W (14.20mm x 14.20mm) | 0.402" (10.20mm) | 0°C ~ 70°C | - | - |
|
H2019FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
882 | - |
|
Datasheet | - | Bulk | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
GST5009 LFMDL 1G SINGLE PORT N/A |
3,271 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Surface Mount | 0.594" L x 0.280" W (15.10mm x 7.10mm) | 0.157" (4.00mm) | 0°C ~ 70°C | - | - |
|
HX5004ENLPULSE XFMR 1 CT:1CT TX/RX 350UH |
480 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
|
H5149NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
147 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.701" L x 0.390" W (17.80mm x 9.91mm) | 0.126" (3.20mm) | 0°C ~ 70°C | - | - |
