Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH9572.322ANLTGDT, FUNCTIONAL, EP7, SMT |
10,026 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | - | - | - | Surface Mount | - | - | - | - | - |
|
PM2155.011NLTXFMR PUSH-PULL SIDE CAR S NPB |
681 | - |
|
Datasheet | PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 1CT:1CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
PA2417NLPULSE XFMR 530UH |
2,230 | - |
|
Datasheet | - | Tray | Active | - | 530µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA1138NLTXFRMR 12V 13.5W 127UH POE EP13 |
1,410 | - |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 127µH | - | 1:0.292:0.208 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|
PM2190.034NLTXFMR PWR .750 UH EP7 SM NPB |
1,137 | - |
|
Datasheet | PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 3CT:4CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
|
|
HM2147NLTXFMR SGL 1CT:1CT 500UH 4.3KV |
2,590 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 500µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
PA1131NLTXFRMR 5.0V 3W 500UH POE EP7 SMD |
260 | - |
|
Datasheet | EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.125:0.208 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|

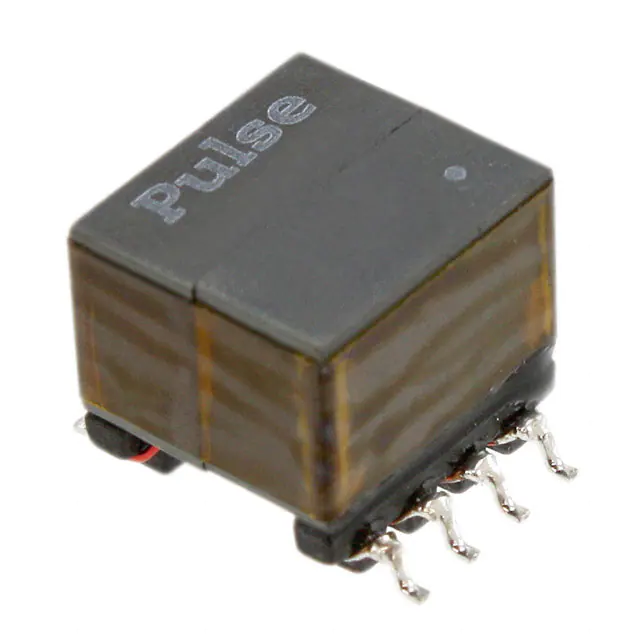

PA1134NLTXFRMR 5V 7W 253UH POE EP10 SMD |
1,431 | - |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253µH | - | 1:0.125:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

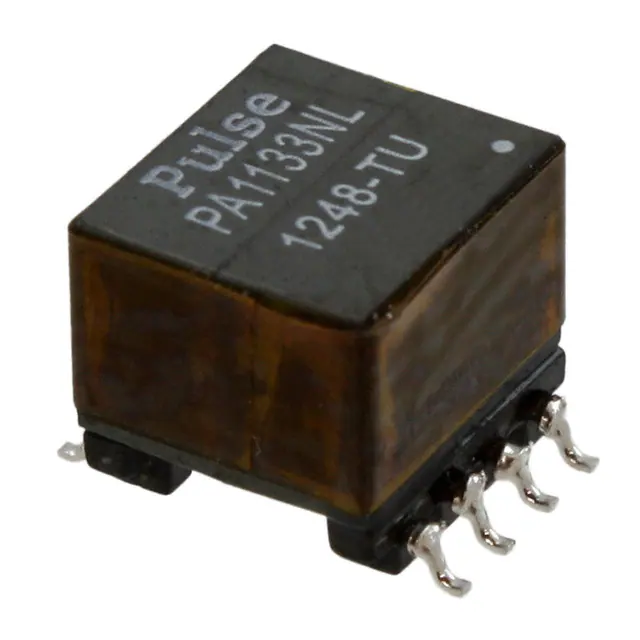

PA1133NLTXFRMR 3.3V 7W 253UH POE EP10 SMD |
562 | - |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253.4µH | - | 1:0.083:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PA1260NLTXFRMR 5V 13.5W 77.4UH POE EP13 |
259 | - |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.273:0.682 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
