Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1260FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
1,800 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
PA2369NLTPULSE XFMR 37UH |
3,112 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
C2267FNLPULSE XFMR 1:1 15UH |
1,453 | - |
|
Datasheet | - | Tube | Active | - | 15µH | - | 1:1 | Surface Mount | 0.386" L x 0.354" W (9.80mm x 9.00mm) | 0.425" (10.80mm) | 0°C ~ 70°C | - | - |
|

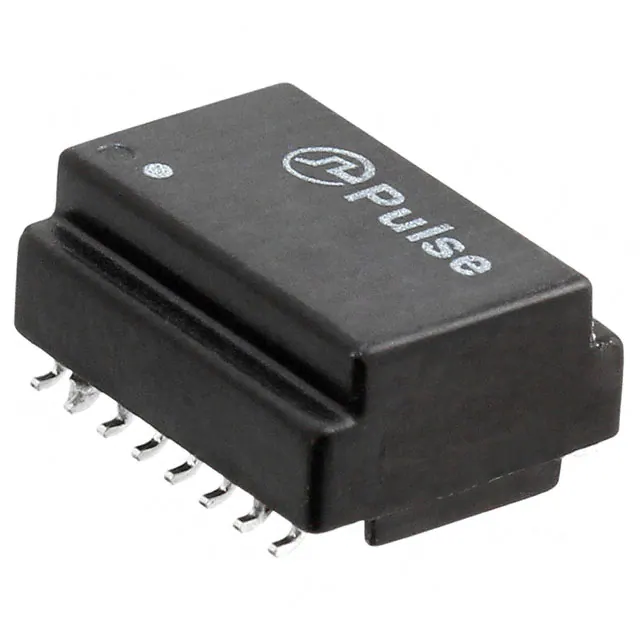

HX2260FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
2,243 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
|
BX6152NLTRANSFORMER 7UH 1:1:2 3KV SMT |
286 | - |
|
Datasheet | - | Tube | Active | - | 7µH | - | 1:1:2 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
|
BX6153NLTRANSFORMER 7UH 1:1 4KV SMT |
149 | - |
|
Datasheet | - | Tube | Active | - | 7µH | - | 1:1 | Surface Mount | 0.445" L x 0.406" W (11.30mm x 10.30mm) | 0.300" (7.62mm) | -40°C ~ 125°C | - | - |
|
HX1344NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
408 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.106" L x 0.480" W (28.10mm x 12.20mm) | 0.225" (5.72mm) | - | - | - |
|

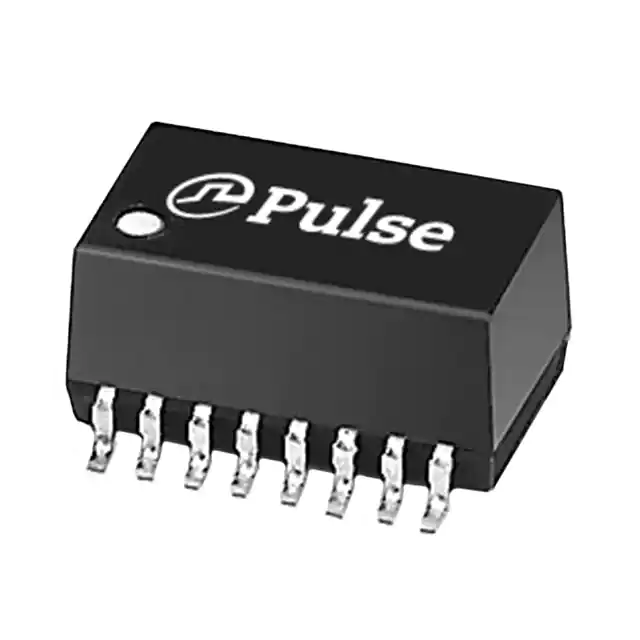

23Z356SMQNLTTRANSFORMER 10BASE-T LAN 16SOIC |
627 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
PE-65848NLXFRMR 1CS:1CS FOR ECHELON/NEURON |
619 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH | - | 1CS:1CS | Surface Mount | 0.475" L x 0.475" W (12.06mm x 12.06mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
BM6154NLTTRANSFORMER 8UH 1:1:1 3KV SMT |
1,749 | - |
|
Datasheet | BM615xNL | Tape & Reel (TR) | Active | - | 8µH | - | 1:1:1 | Surface Mount | 0.417" L x 0.357" W (10.60mm x 9.08mm) | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
