Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

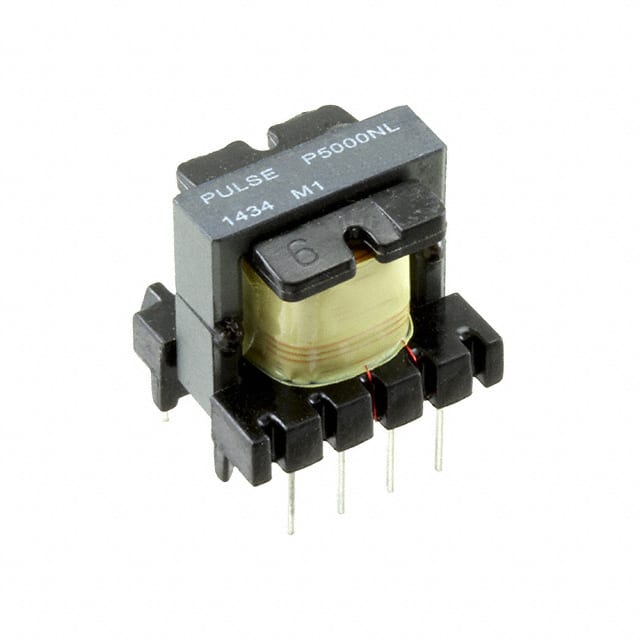

P5000NLPULSE XFMR 1:0.07:0.07 |
102 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9384.083NLTXFMR GATE-DR 8CT:3CT SM NPB |
154 | - |
|
Datasheet | PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PM2185.034NLTXFMR GATE-DR 3T:4CT SMT NPB |
270 | - |
|
Datasheet | PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3CT:4CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|

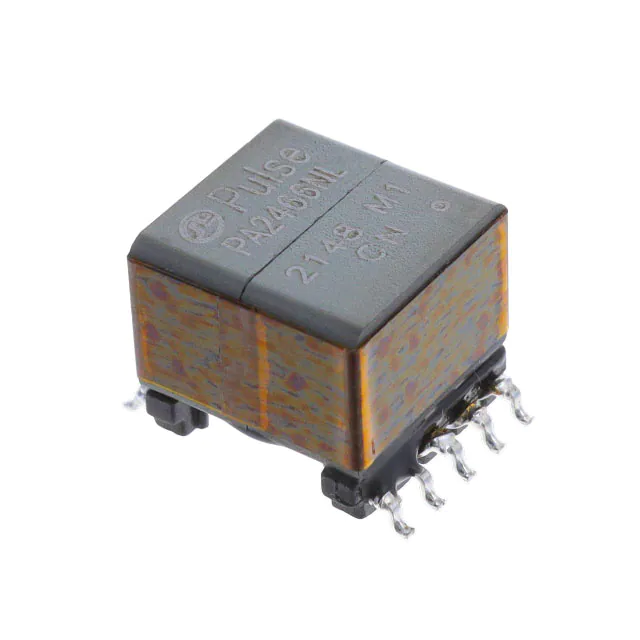

PA2466NLPULSE XFMR 37UH |
2,205 | - |
|
Datasheet | - | Tray | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PH9384.035NLTXFMR GATE-DR 3CT:5CT SM NPB |
264 | - |
|
Datasheet | PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PH9572.122NLTGDT, FUNCTIONAL, EP7, SMT |
1,295 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
PM2155.045NLTXFMR PUSH-PULL SIDE CAR S NPB |
886 | - |
|
Datasheet | PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 4CT:5CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
TX1188NLXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH |
1,360 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
PE-68678NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH |
1,252 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-65861NLTRANSFORMER TELECOM DUAL T1/E2 |
1,218 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
