Pulse Transformers
Use the filters and product table below to compare Pulse Transformers components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-65728NLTTRANSFORMER 2000VRMS 100UH SMD |
4,657 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 100µH | 1.8VµS | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
HM2108NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, |
119 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 135µH | - | 1:1 | Surface Mount | 0.335" L x 0.524" W (8.50mm x 13.31mm) | 0.226" (5.75mm) | -40°C ~ 125°C | - | - |
|
HMU2103NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, |
1,536 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
23Z467SMNLTRANSFORMER 10BASE-T LAN 16SOIC |
266 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
E2023NLXFRMR LAN ISOL 10BASET 1:2.5 SMD |
189 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

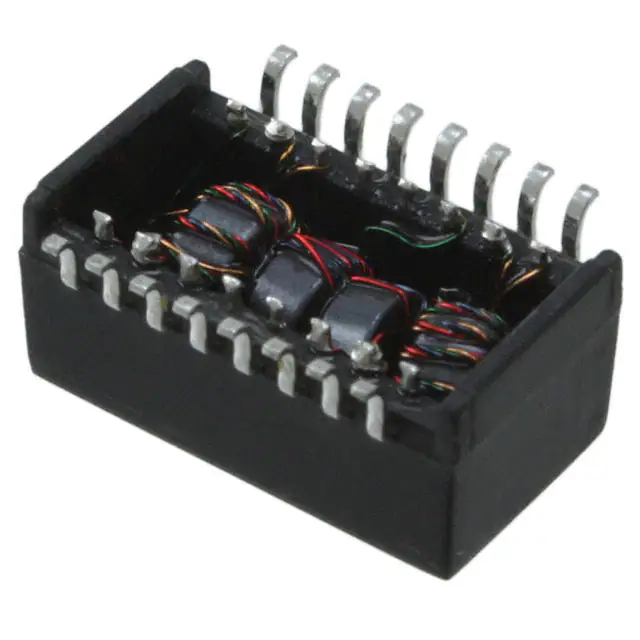

H2260NLXFRMR MODUL 1PORT POE 1:1 10/100 |
180 | - |
|
Datasheet | Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|
H1197FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
968 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HMU2103NLXFMR CMC MODULE AECQ BATT MNGT |
255 | - |
|
Datasheet | - | Tube | Active | - | 150µH | - | - | Surface Mount | 0.300" L x 0.365" W (7.62mm x 9.27mm) | 0.225" (5.72mm) | - | - | - |
|
TX1099NLTXFRMR 1CT:1:0.8/1CT:1:0.8 SMD |
1,200 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:0.8, 1CT:1:0.8 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
T1137NLTRANSFORMER TELECOM DUAL T1/E2 |
782 | - |
|
Datasheet | - | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
